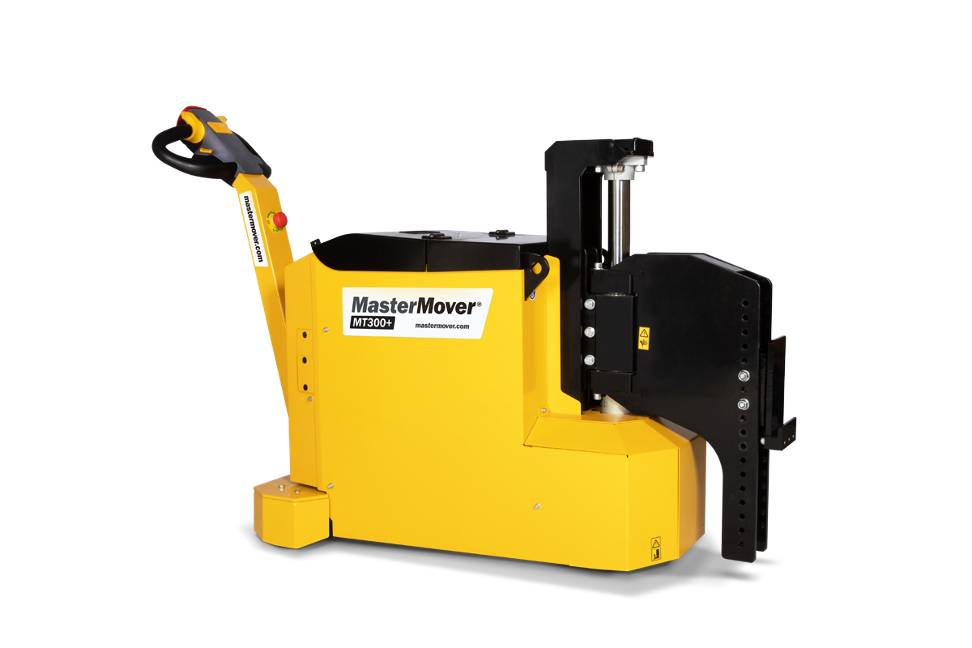

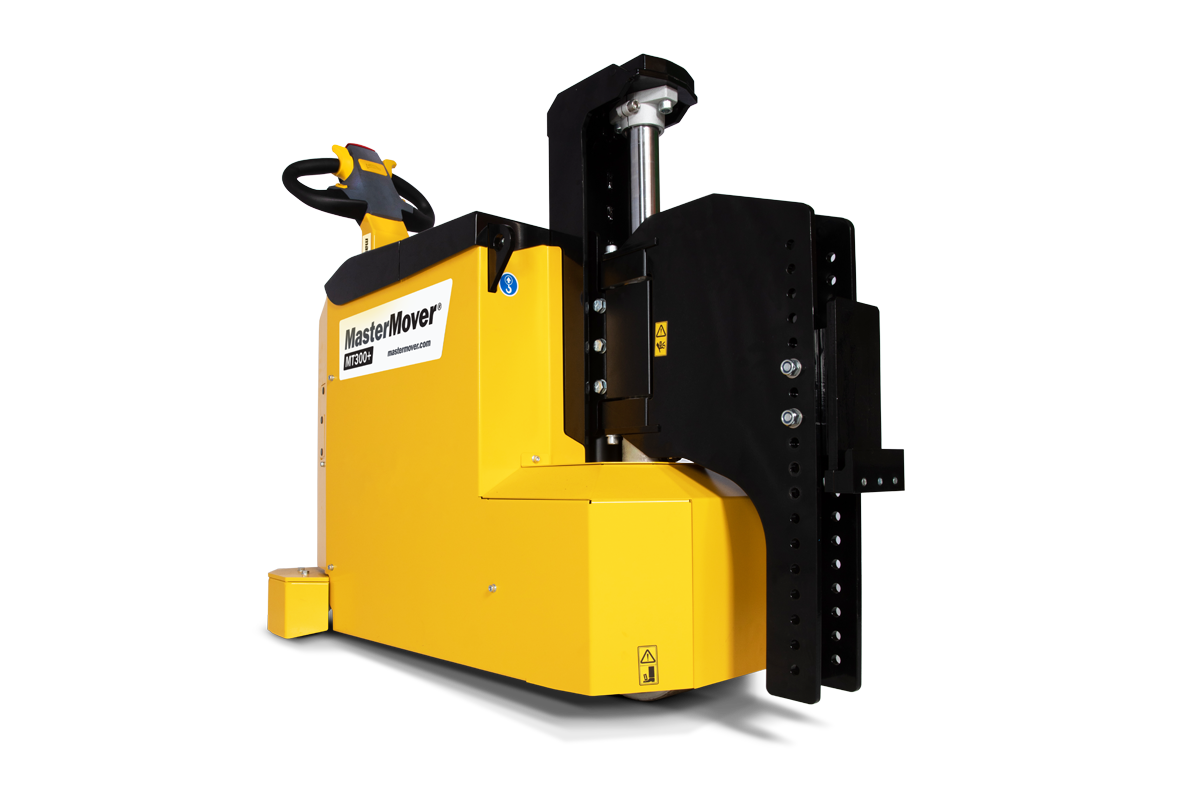

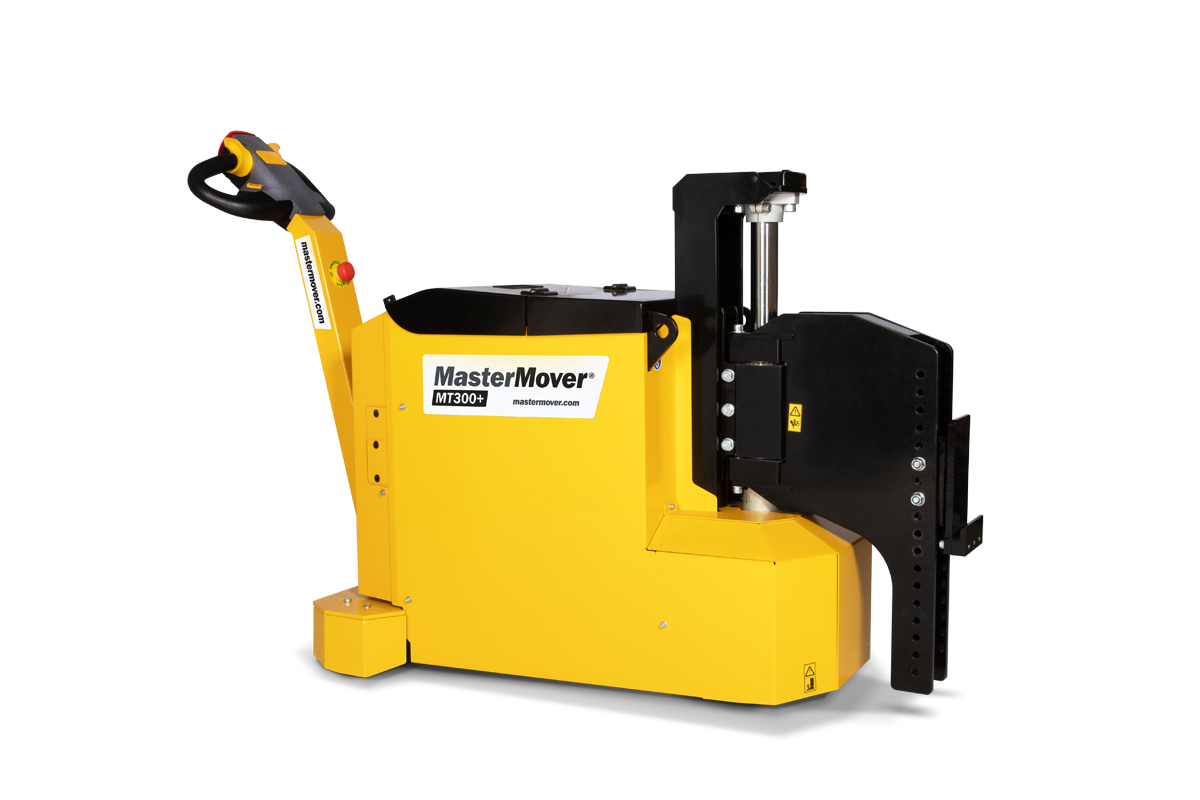

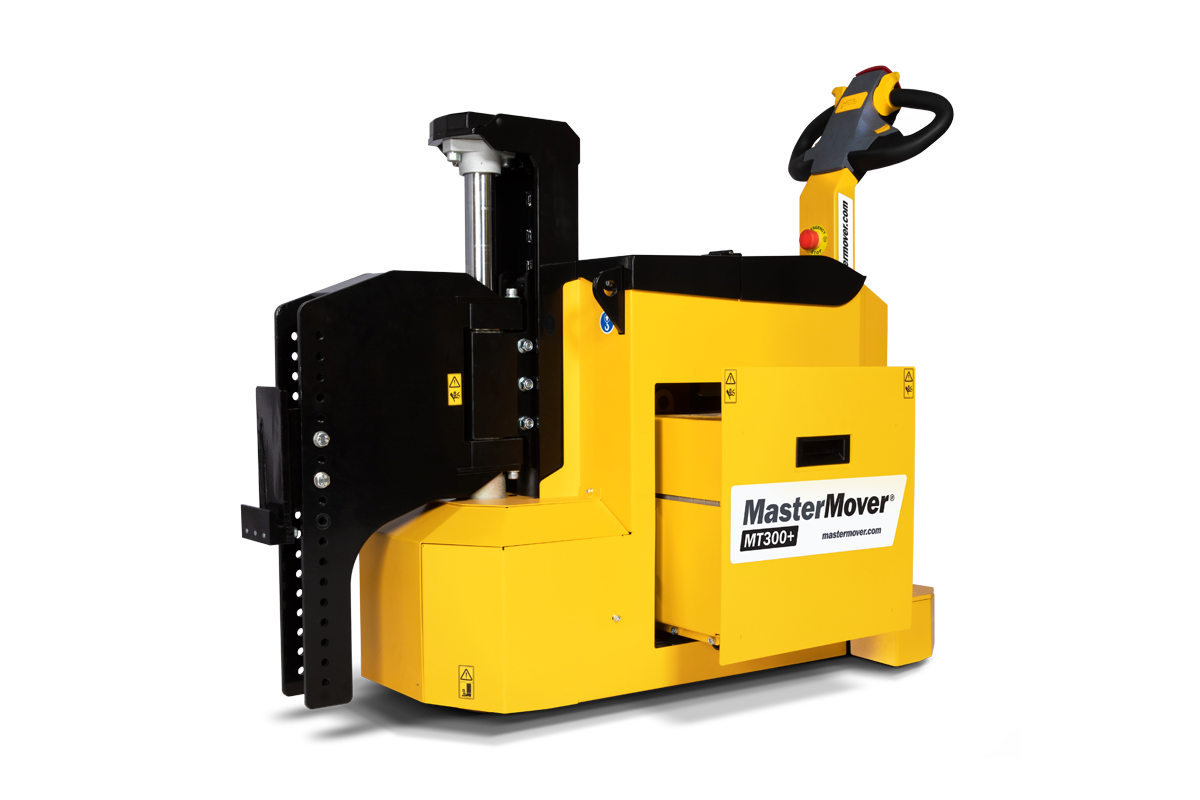

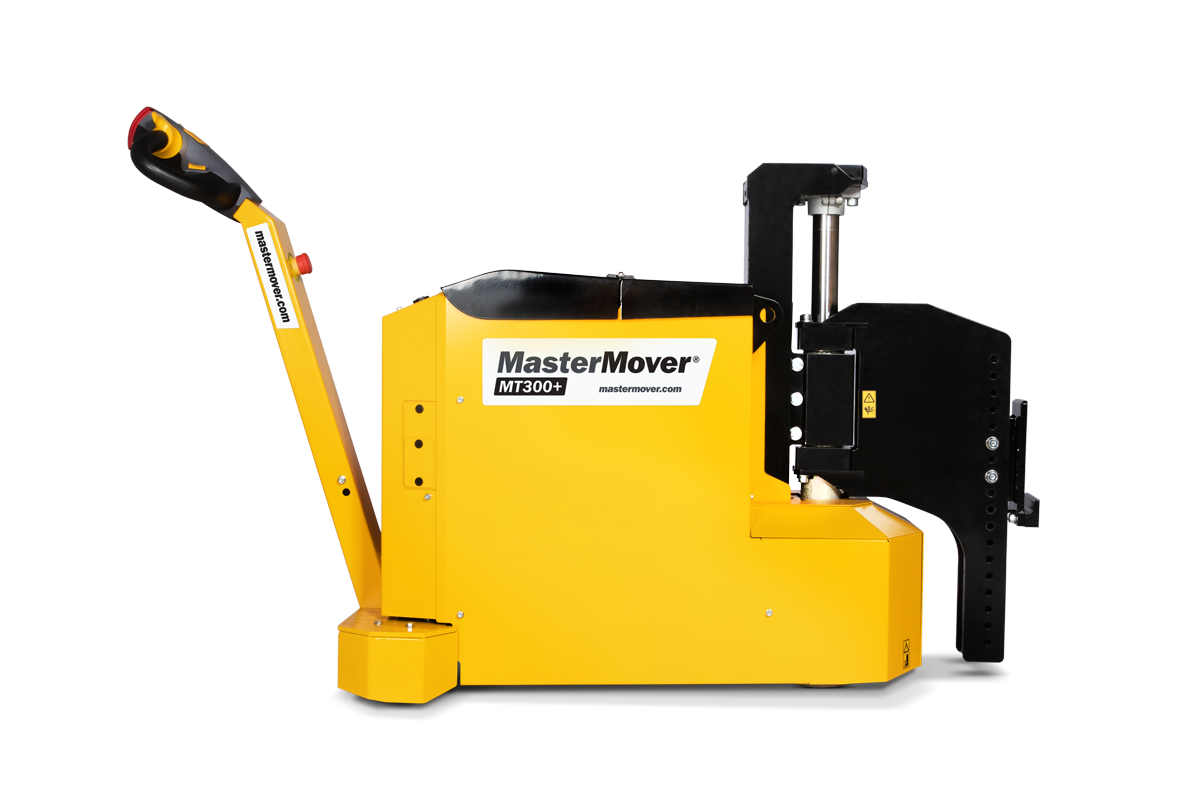

MASTERMOVER ELECTRIC TUG | MT300+ (3000KG)

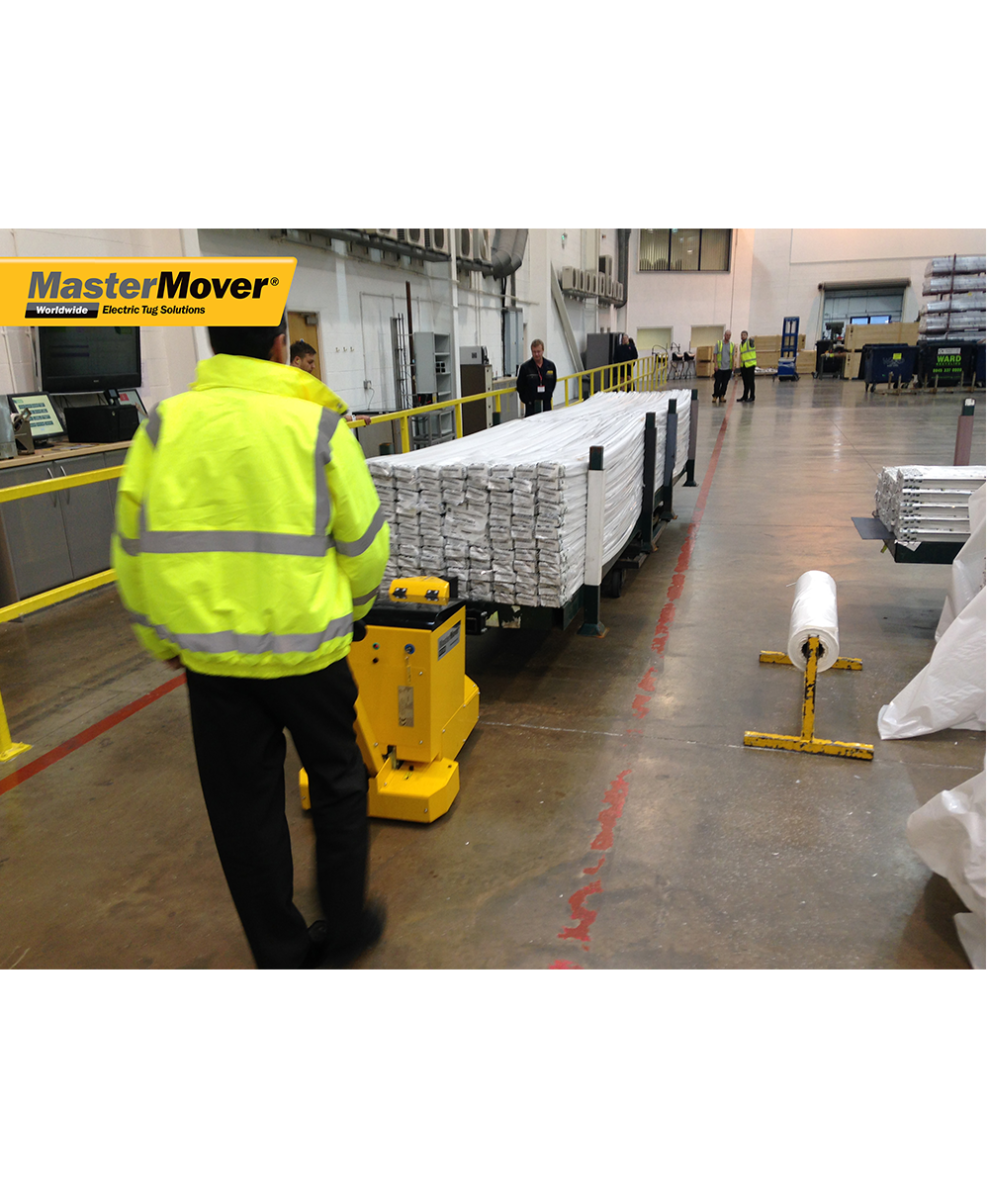

MasterMover MT300+ electric tug for controlled movement of wheeled loads; up to 3000 kg; slope rating 8 degrees; runtime 11.7 km; charge time 5h.
Key specs: Load: 3000 kg | Slope: 8º | Runtime: 11.7 km | IP: IP44
MasterMover MT300+ electric tug for controlled movement of wheeled loads; up to 3000 kg; slope rating 8 degrees; runtime 11.7 km; charge time 5h.
MASTERMOVER ELECTRIC TUG | MT300+ (3000KG) technical information
| Model | MT300+ |
|---|---|
| Series | MasterTug |
| Load capacity | 3000 kg |
| Maximum load on castors | rails | 3,000 kg | 12,000 kg |
| Maximum slope | 8º |
| Runtime | 11.7 km |
| Charge time | 5h |
| Machine weight | 218 kg |
| Combined machine and battery weight | 285 kg |
| Drive type | Electric |
| Drive motor power | 1.2 kW |
| Standard machine speed | (no speed selector switch) 2 KPH |
| Voltage | 24 v |
| IP rating | IP44 |
| Dimensions (W x L x H) | 570 x 1393 x 1172 mm |

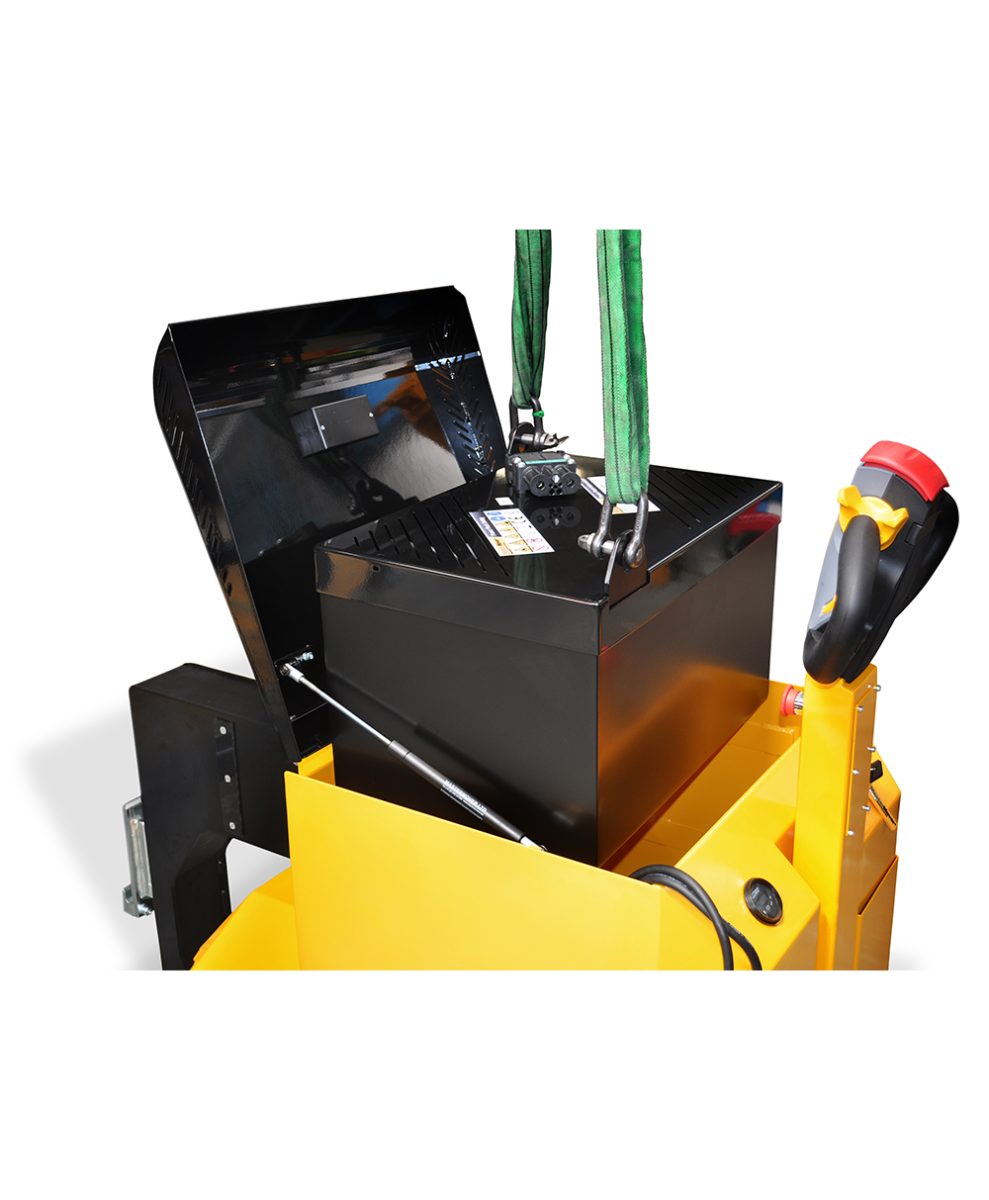

| AGM battery runtime | 11.7 km | 16.3 km |
| AGM charge time | 5 hrs | 7 hrs |
| Lithium battery runtime | 3. 1 km |
| Lithium charge time | 2 hrs 30 mins |
Before quotation review
- Confirm actual load weight, route distance, floor condition and gradient.
- Check castor, rail or wheel condition because rolling resistance changes the required tug capacity.
- Confirm coupling point, operator position, turning space and whether the machine is used indoors, outdoors, wet areas or controlled environments.
- For stainless steel, ATEX/IECEx, washdown or special-environment use, confirm documentation and site conditions before final recommendation.

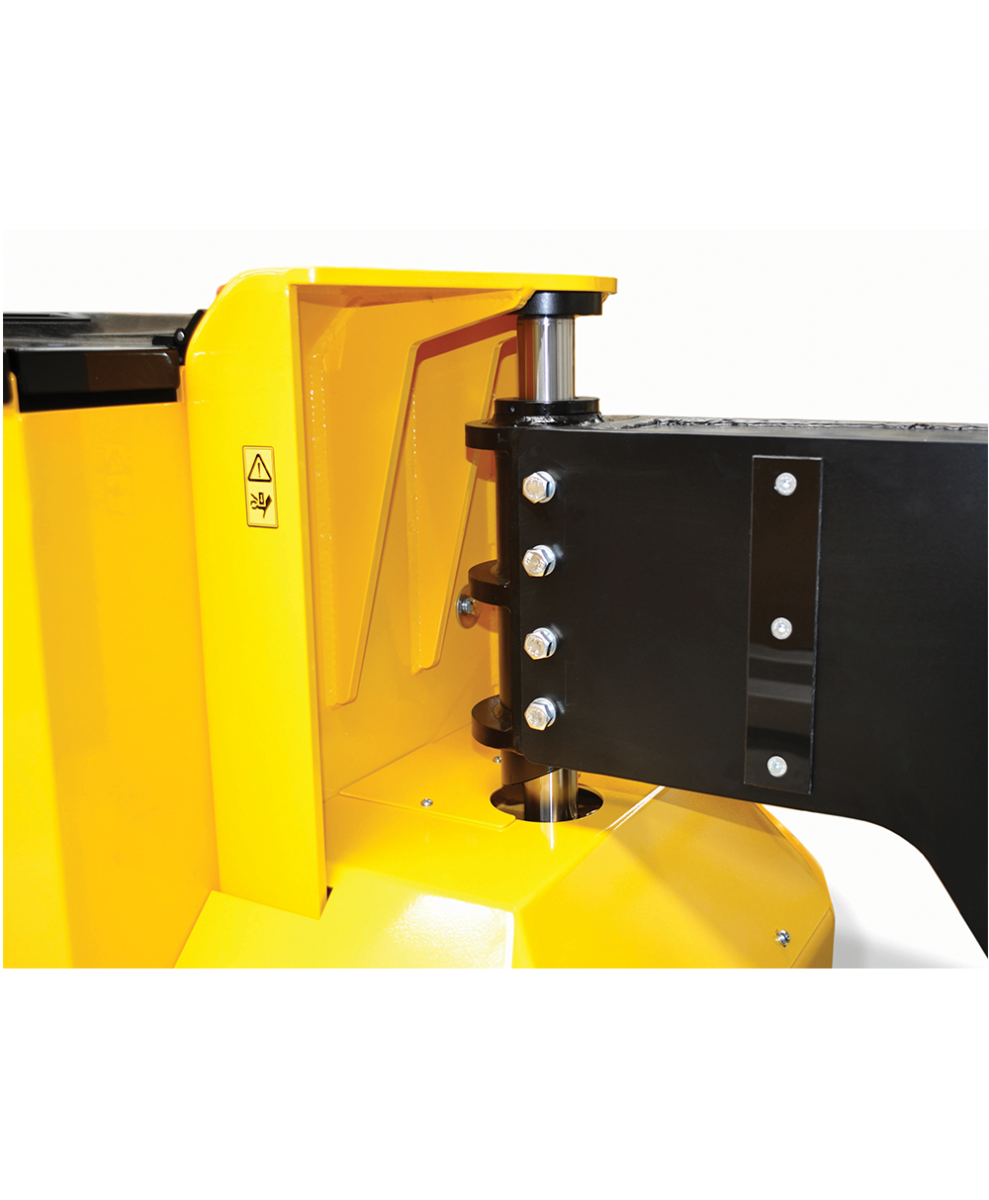

Coupling options: CombiCoupling (male | female) Optional; BoxCoupling (male | female) Optional
Machine options: Additional AGM Battery Optional; Flashing Safety Light and Motion Bleeper Optional; Two Speed Selector Switch Optional; CombiLock Optional; Quick Release Coupling Pins Optional; Battery Protection System Optional
Technical information source: MasterMover series page | technical data sheet
