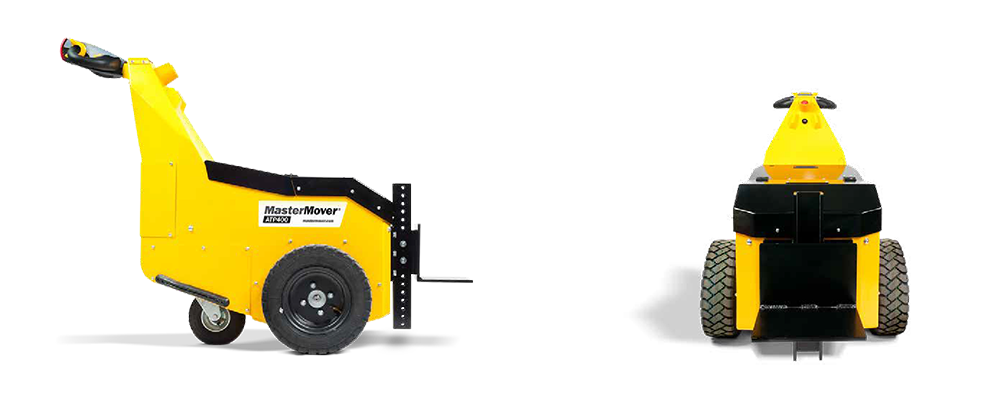

MASTERMOVER ALL TERRAIN ELECTRIC TUG | ATP400 (5000KG)

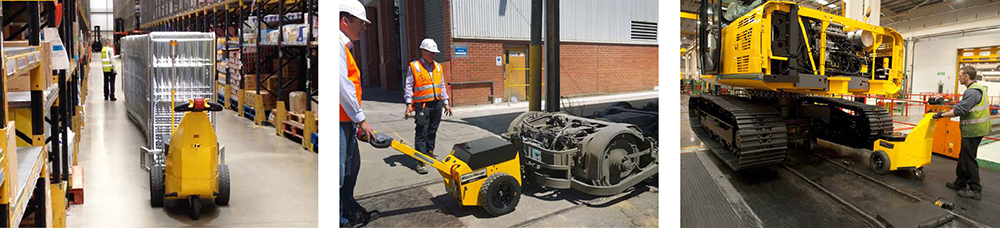

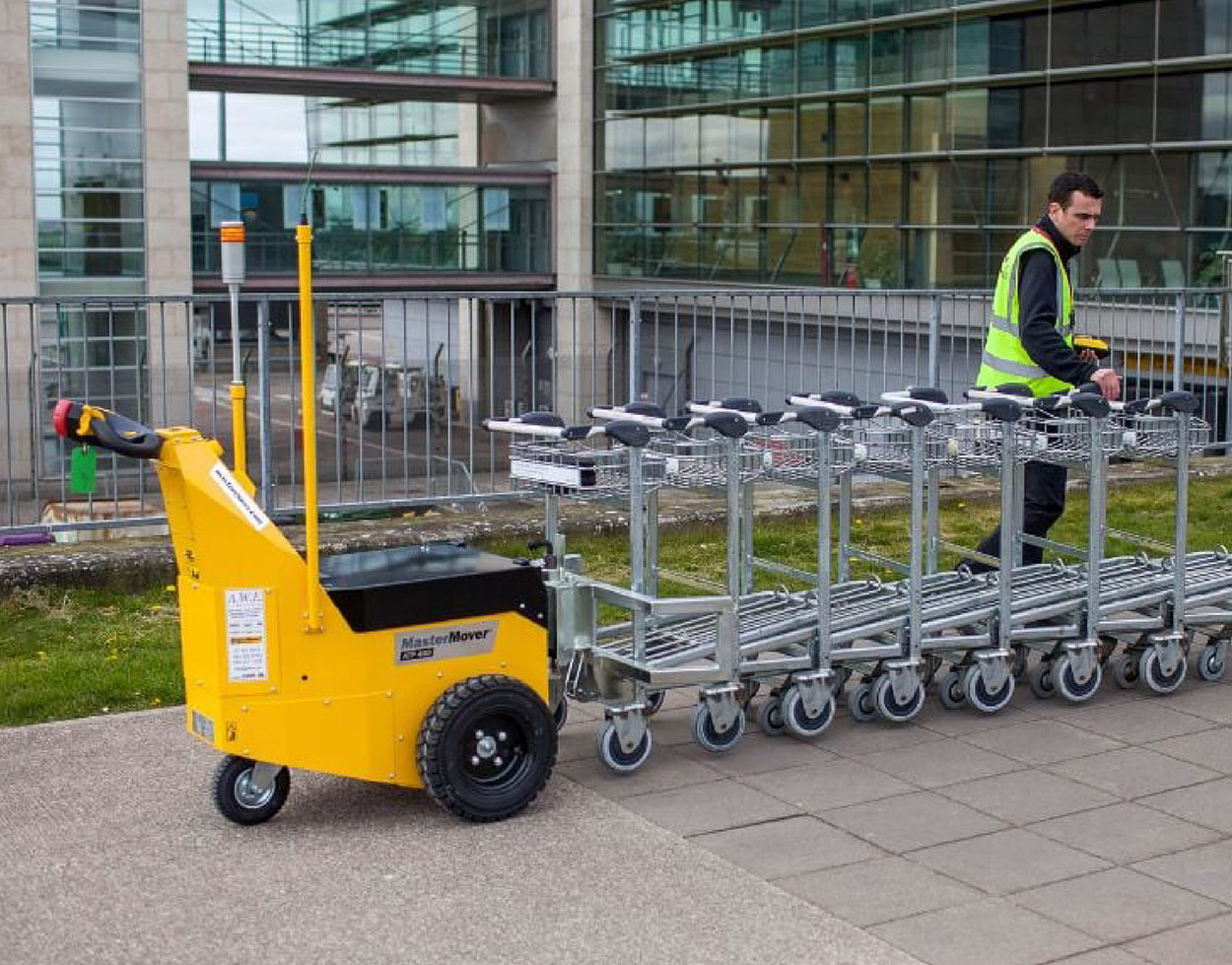

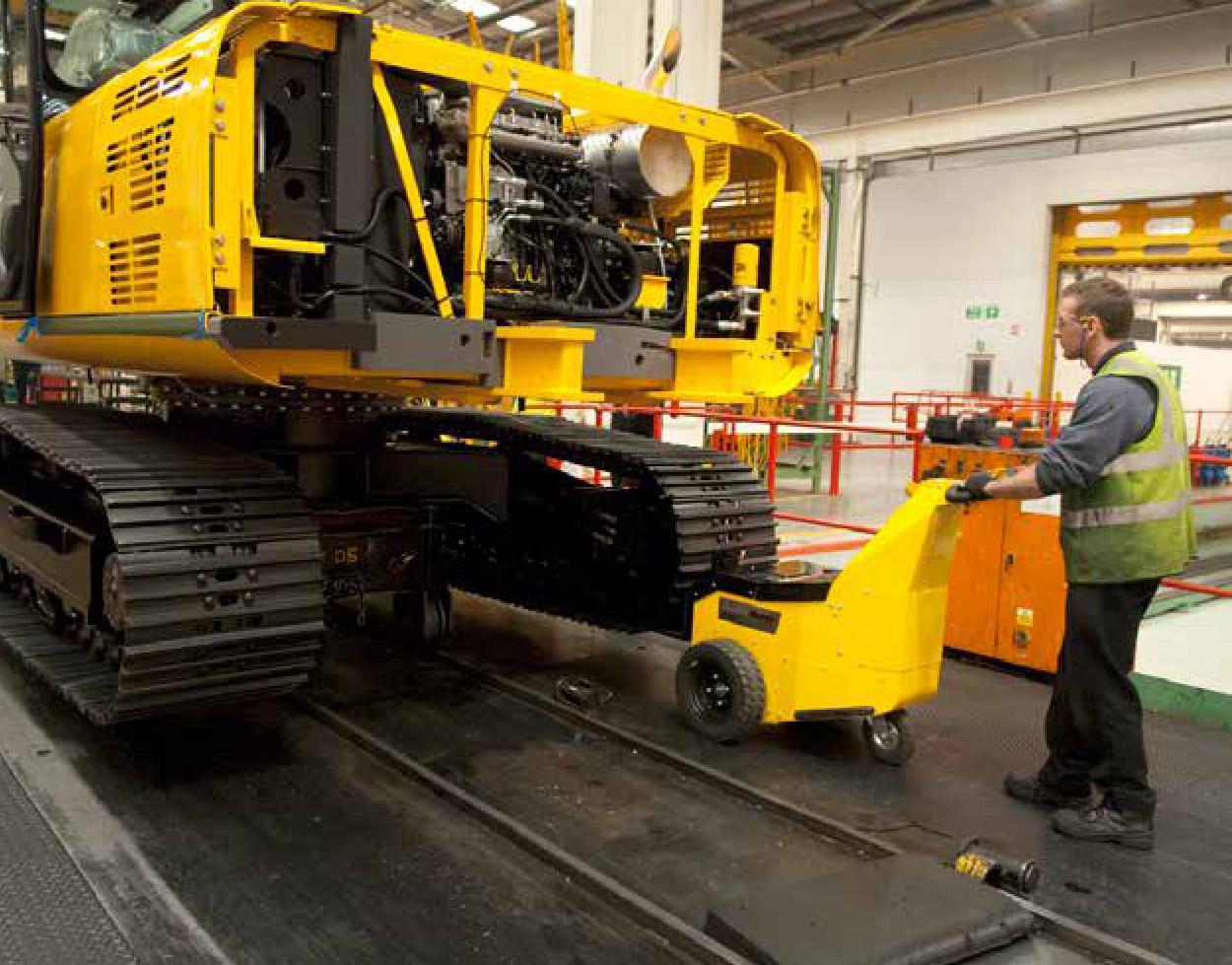

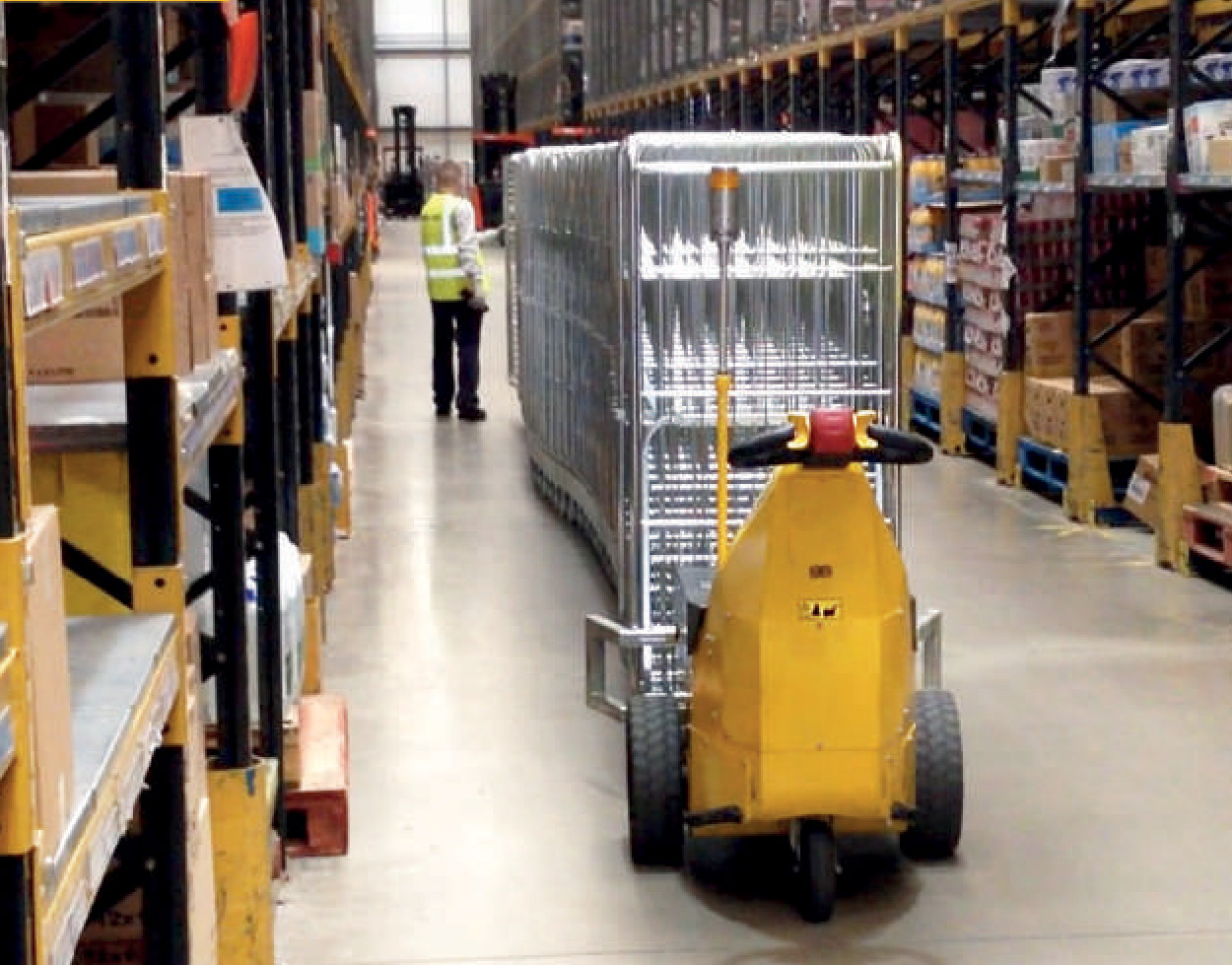

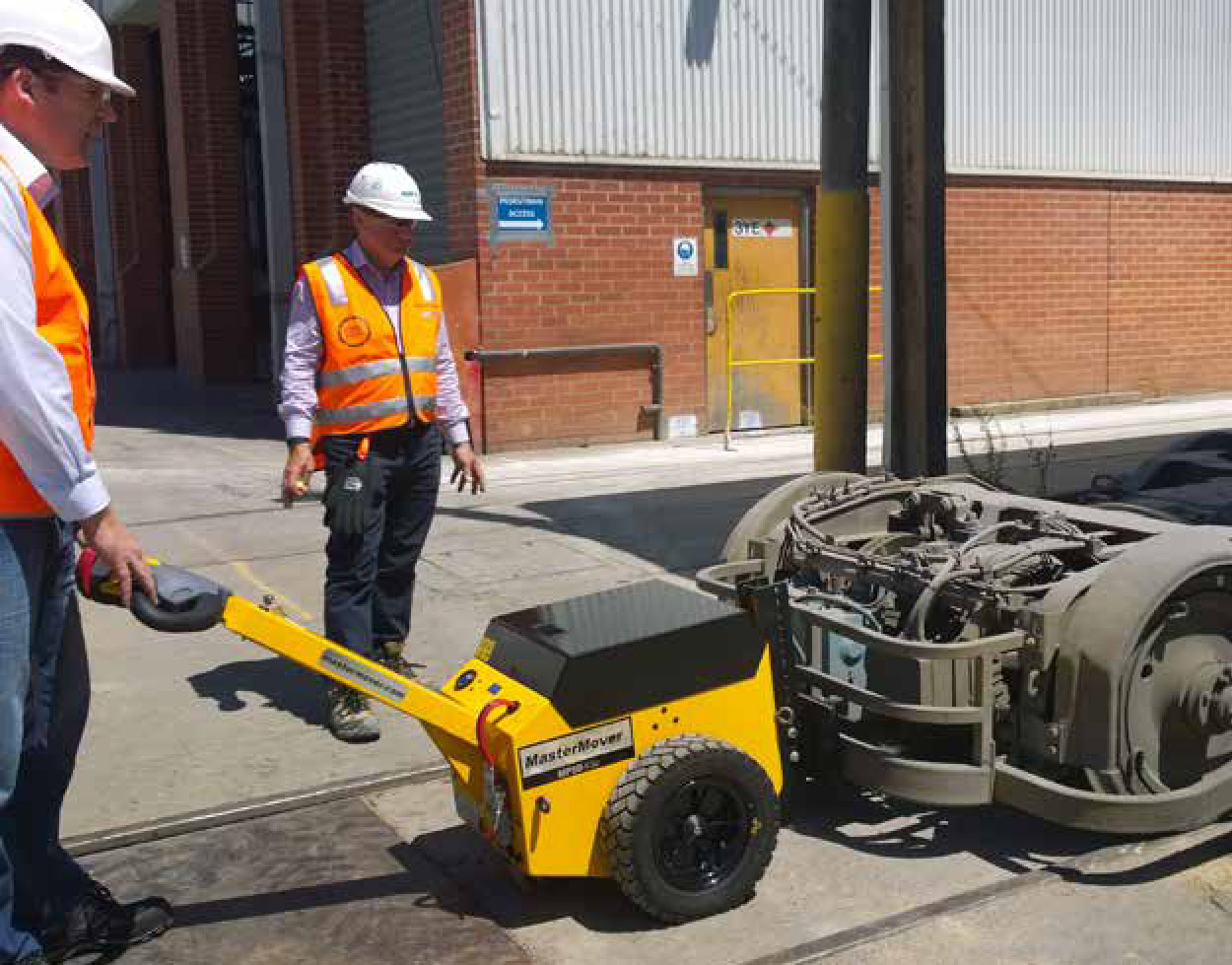

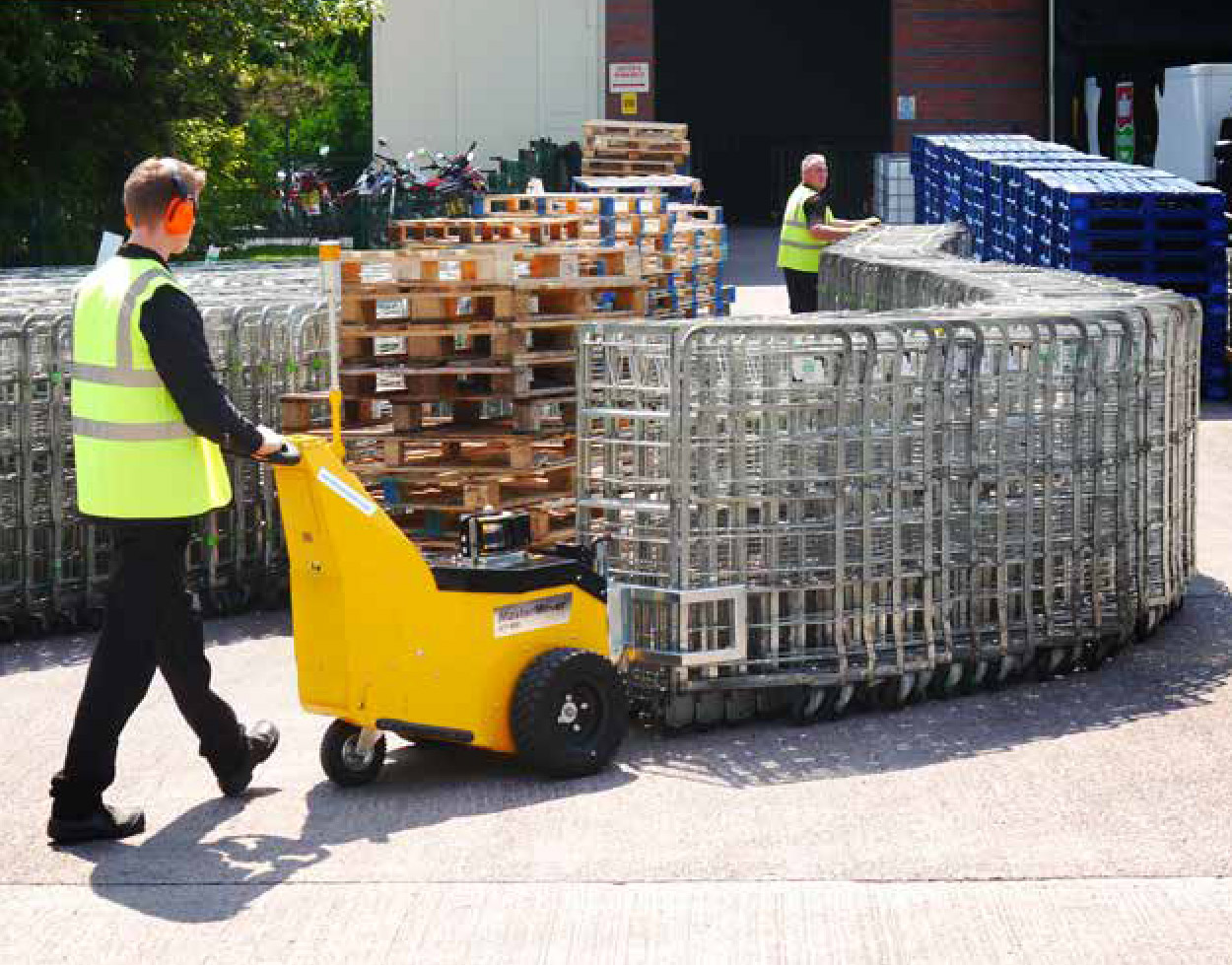

MasterMover ATP400 electric tug for controlled movement of wheeled loads; up to 5000 kg; slope rating 10 degrees; runtime 12.1 km; charge time 8.25h.
Key specs: Load: 5000 kg | Slope: 10º | Runtime: 12.1 km | IP: IP44
MasterMover ATP400 electric tug for controlled movement of wheeled loads; up to 5000 kg; slope rating 10 degrees; runtime 12.1 km; charge time 8.25h.
MASTERMOVER ALL TERRAIN ELECTRIC TUG | ATP400 (5000KG) technical information
| Model | ATP400 |
|---|---|
| Series | AllTerrain |
| Load capacity | 5000 kg |
| Maximum load on castors | rails | 5,000 kg | 80,000 kg |
| Maximum force push | pull | 3,924 N | 3,433 N |
| Maximum slope | 10º |
| Runtime | 12.1 km |
| Charge time | 8.25h |
| Machine weight | 204 kg |
| Combined machine and battery weight | 284 kg |
| Drive type | Electric |
| Drive motor power | 2 kW |
| Standard machine speed | 2 KPH |
| Voltage | 24 v |
| IP rating | IP44 |

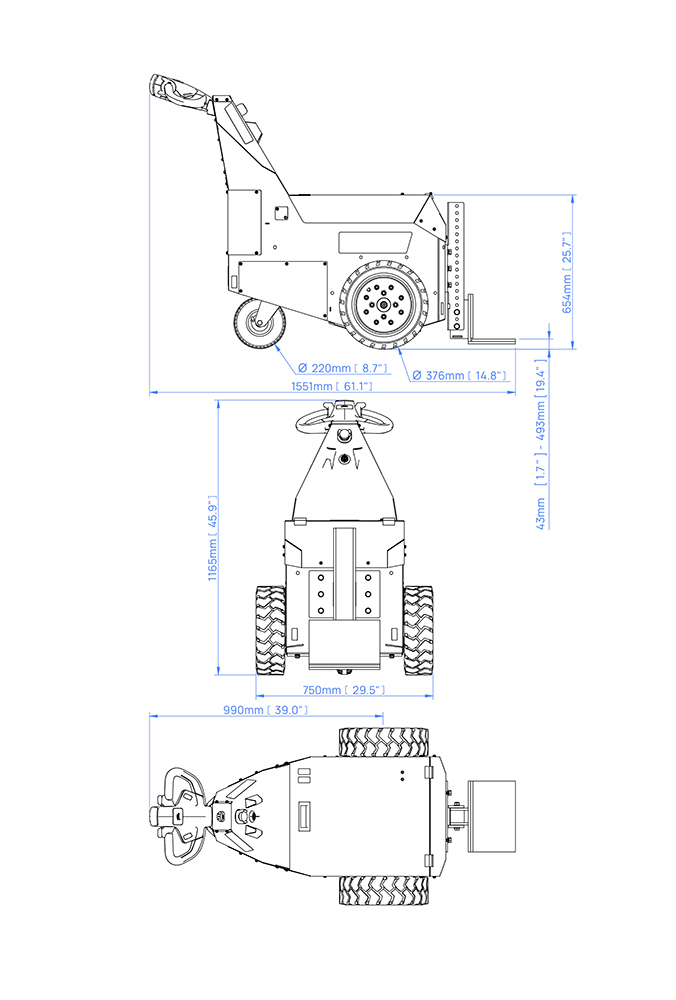

| Dimensions (W x L x H) | 750 x 1551 x 1165 mm |
| AGM battery runtime | 12. 1 km | 13.4 km |
| AGM charge time | (External) 8 hrs 15 mins | 7 hrs 30 mins |
| Lithium battery runtime | 9.5 km |
| Lithium charge time | 2 hrs |
Before quotation review
- Confirm actual load weight, route distance, floor condition and gradient.
- Check castor, rail or wheel condition because rolling resistance changes the required tug capacity.
- Confirm coupling point, operator position, turning space and whether the machine is used indoors, outdoors, wet areas or controlled environments.
- For stainless steel, ATEX/IECEx, washdown or special-environment use, confirm documentation and site conditions before final recommendation.
Coupling options: BoxCoupling (male | female) Optional; L Shaped Push Plate Coupling (male) Optional; Push Plate Coupling (male) Optional; York Coupling (male) Optional; Tetra Coupling (male) Optional

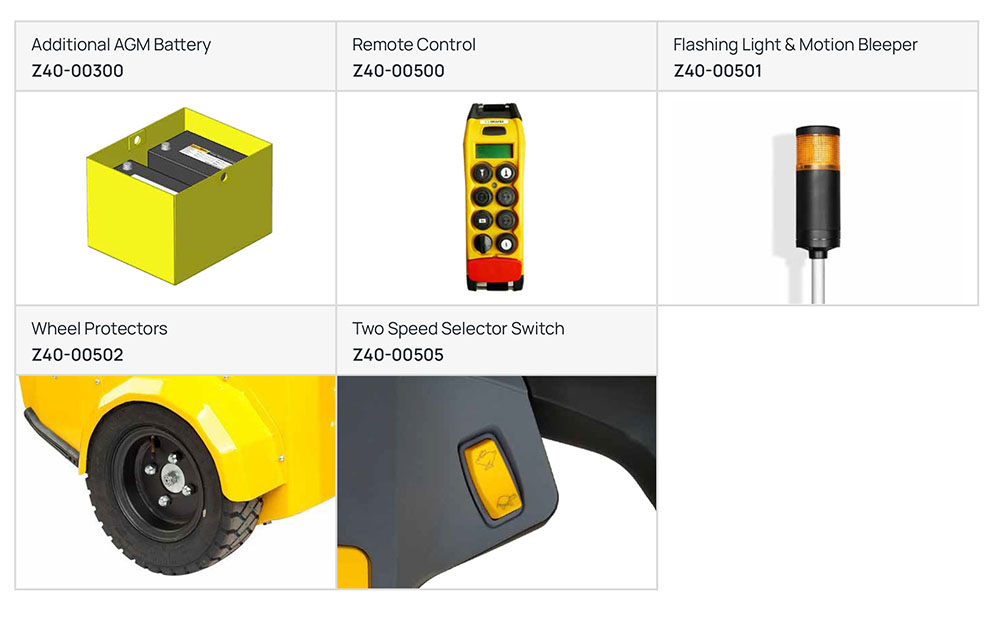

Machine options: Additional AGM Battery Optional; Flashing Safety Light and Motion Bleeper Optional; Two Speed Selector Switch Optional; Remote Control Optional; Wheel Protectors Optional
Technical information source: MasterMover series page | technical data sheet
