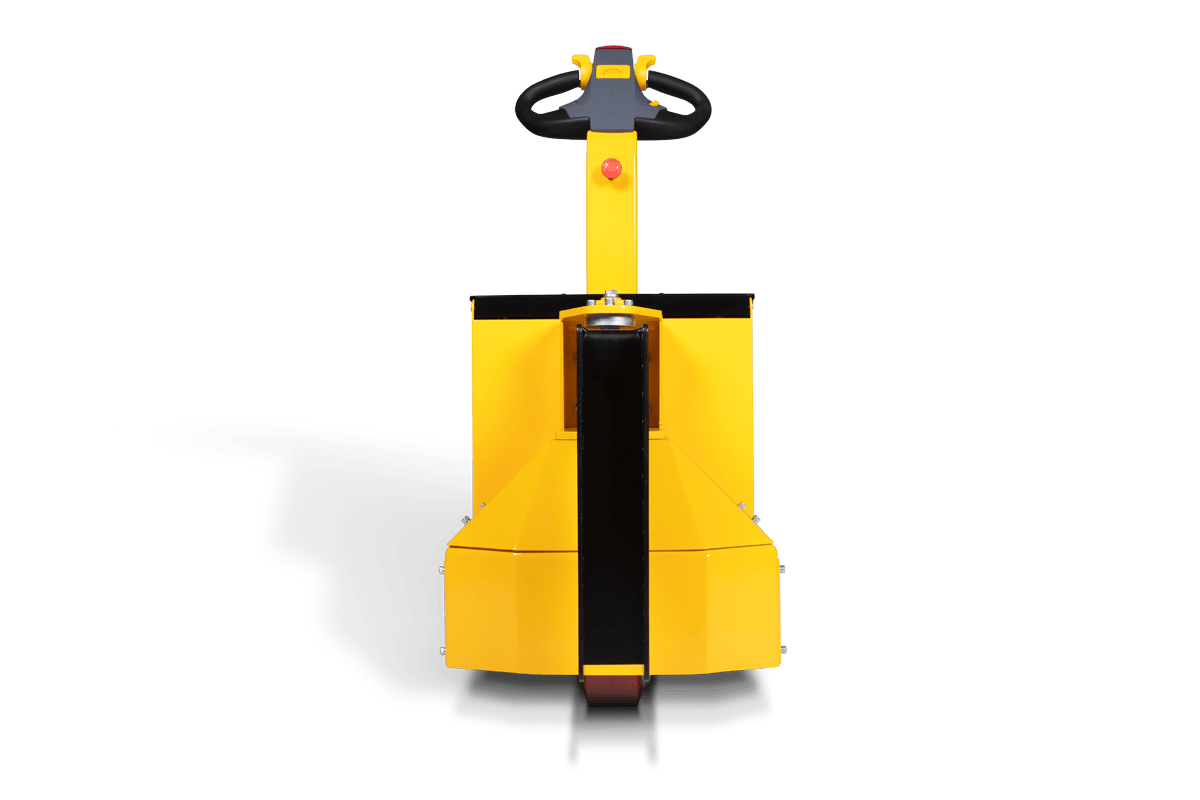

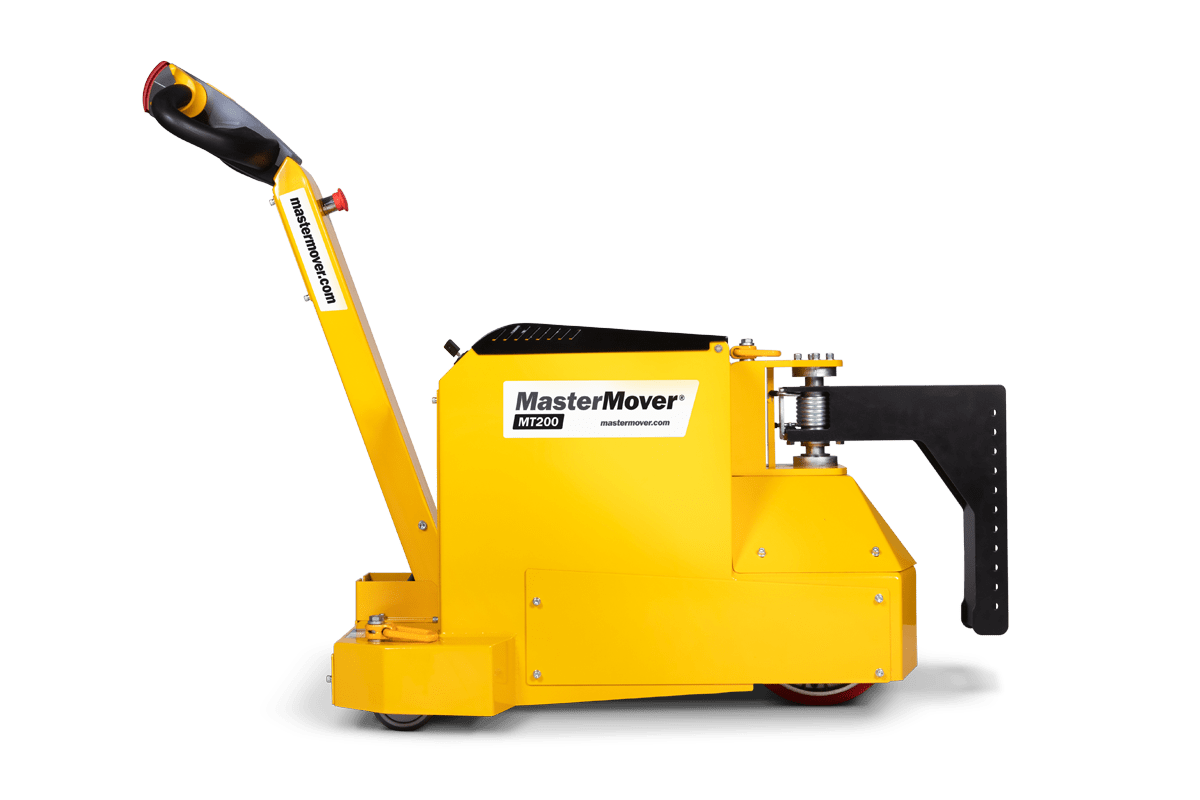

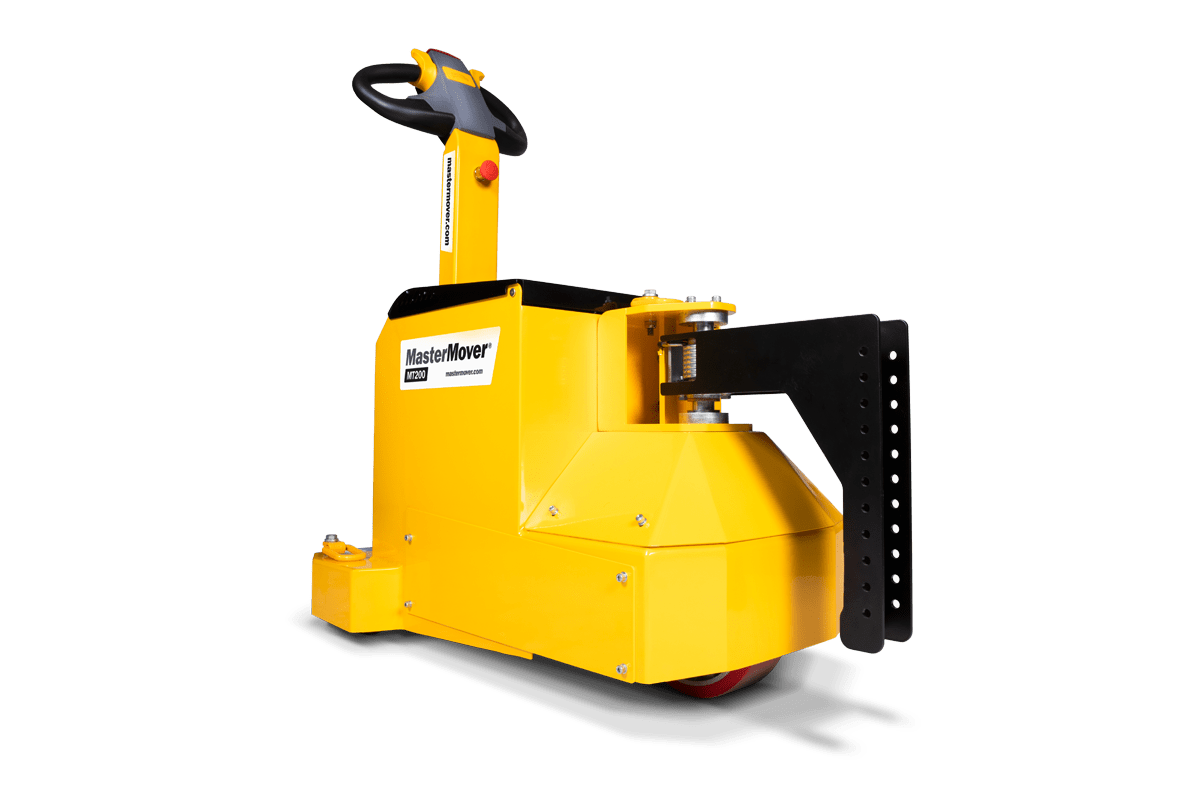

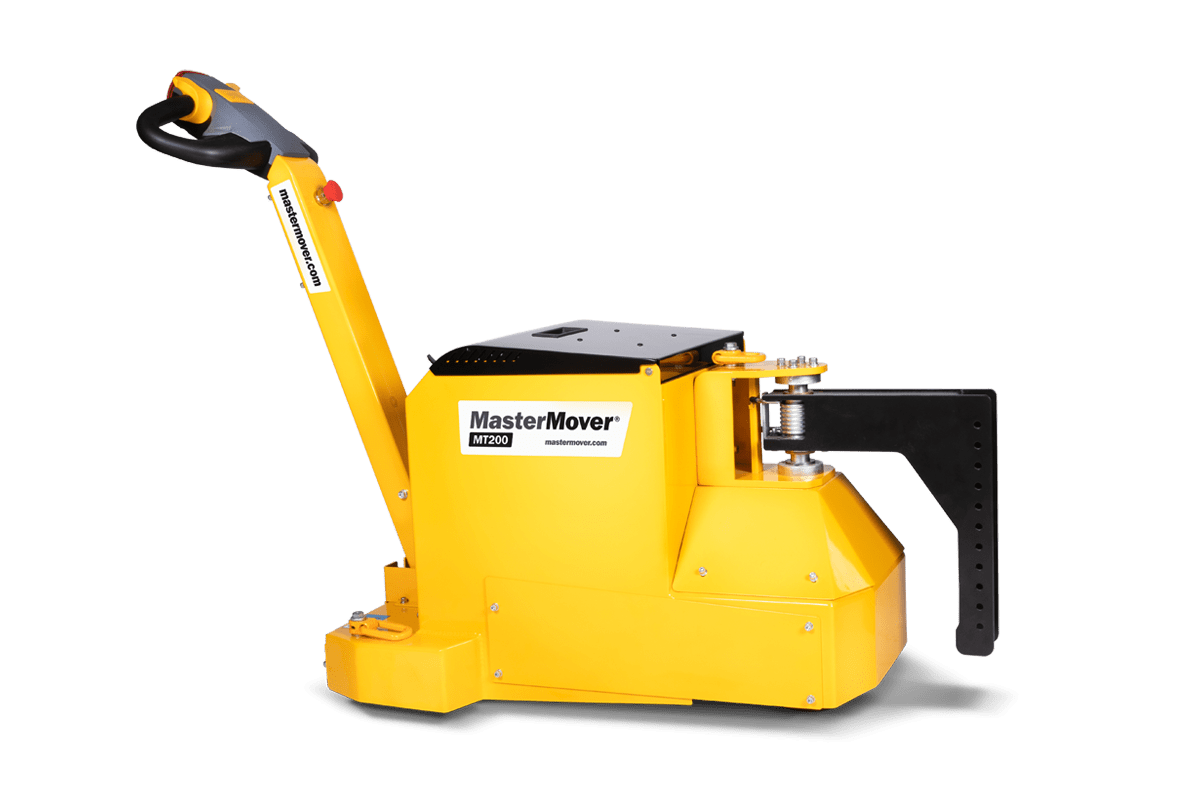

MASTERMOVER ELECTRIC TUG | MT200 (2000KG)

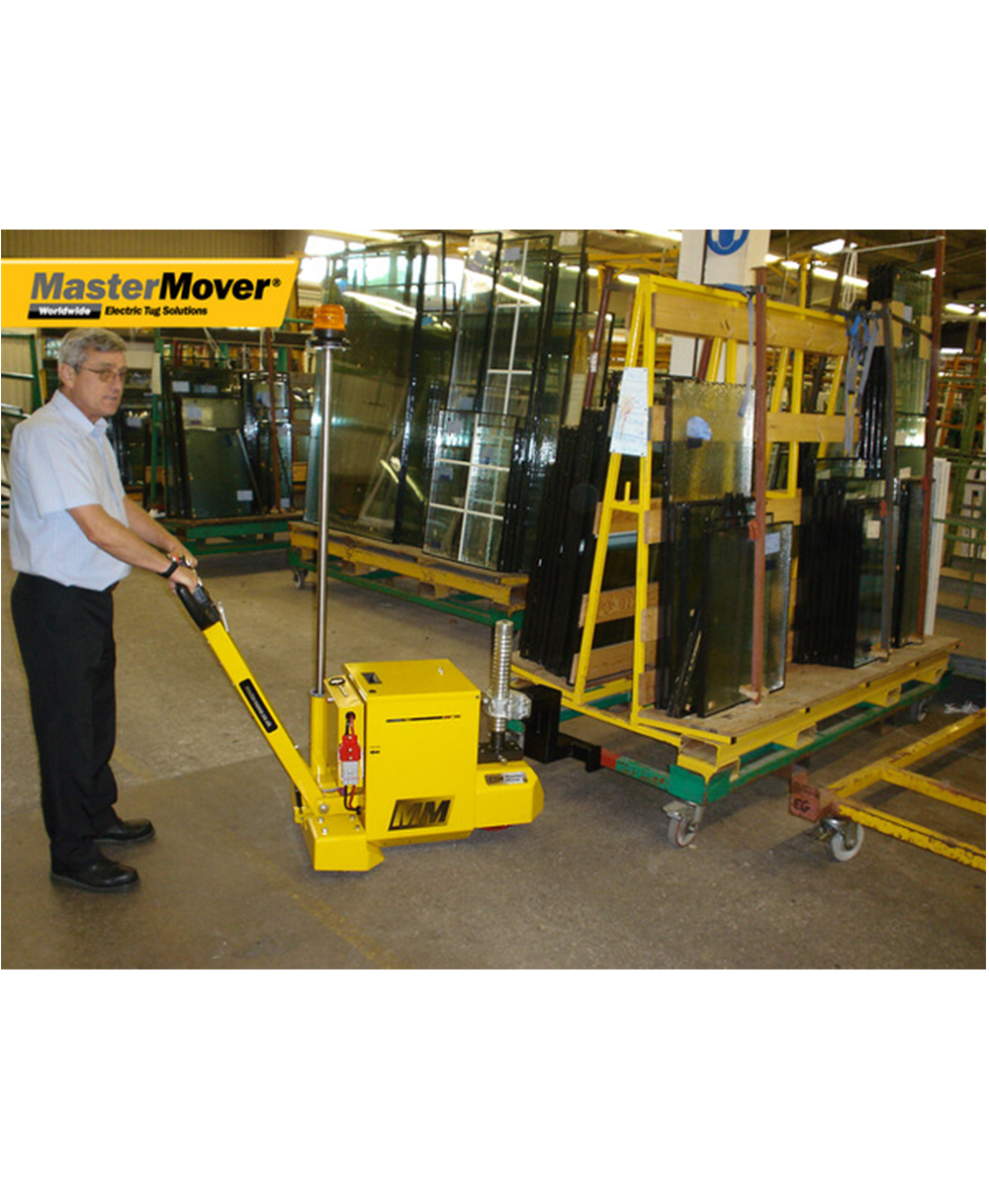

MasterMover MT200 electric tug for controlled movement of wheeled loads; up to 2000 kg; slope rating 8 degrees; runtime 10.6 km; charge time 3.75h.
Key specs: Load: 2000 kg | Slope: 8º | Runtime: 10.6 km | IP: IP44
MasterMover MT200 electric tug for controlled movement of wheeled loads; up to 2000 kg; slope rating 8 degrees; runtime 10.6 km; charge time 3.75h.
MASTERMOVER ELECTRIC TUG | MT200 (2000KG) technical information
| Model | MT200 |
|---|---|
| Series | MasterTug |
| Load capacity | 2000 kg |
| Maximum load on castors | rails | 2,000 kg | 8,000 kg |
| Maximum slope | 8º |
| Runtime | 10.6 km |
| Charge time | 3.75h |
| Machine weight | 179 kg |
| Combined machine and battery weight | 222 kg |
| Drive type | Electric |
| Drive motor power | 1.2 kW |
| Standard machine speed | (no speed selector switch) 2 KPH |
| Voltage | 24 v |
| IP rating | IP44 |
| Dimensions (W x L x H) | 570 x 1080 x 1163 mm |
| AGM battery runtime | 10.6 km |
| AGM charge time | 3 hrs 45 mins |
| Lithium battery runtime | 19 km |
| Lithium charge time | 2 hrs |
Before quotation review
- Confirm actual load weight, route distance, floor condition and gradient.
- Check castor, rail or wheel condition because rolling resistance changes the required tug capacity.
- Confirm coupling point, operator position, turning space and whether the machine is used indoors, outdoors, wet areas or controlled environments.
- For stainless steel, ATEX/IECEx, washdown or special-environment use, confirm documentation and site conditions before final recommendation.
Coupling options: BoxCoupling (male | female) Optional

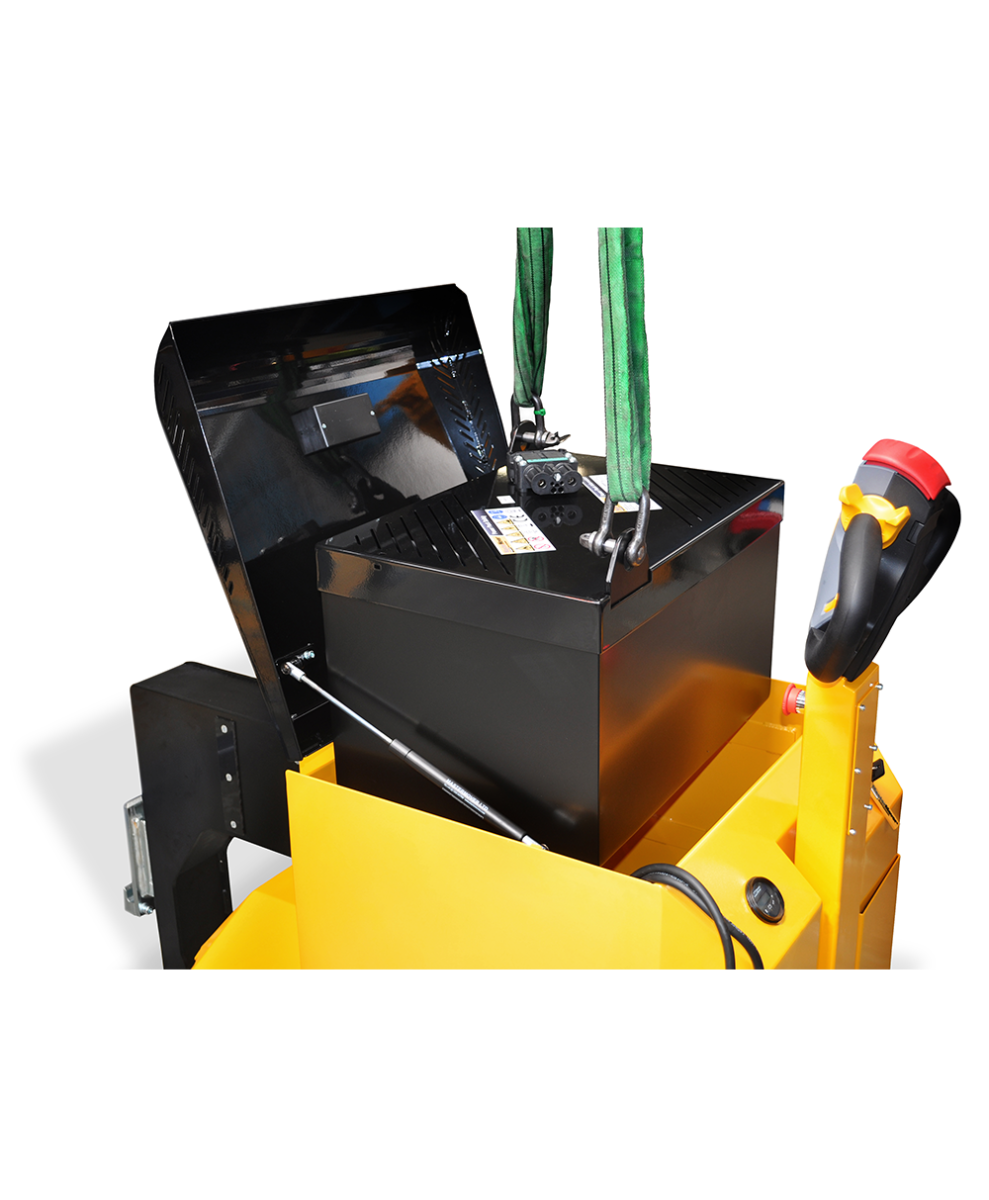

Machine options: Additional AGM Battery Optional; Flashing Safety Light and Motion Bleeper Optional; Two Speed Selector Switch Optional; Battery Protection System Optional; Lift Points Optional; Tie-Down Points Optional
Technical information source: MasterMover series page | technical data sheet
