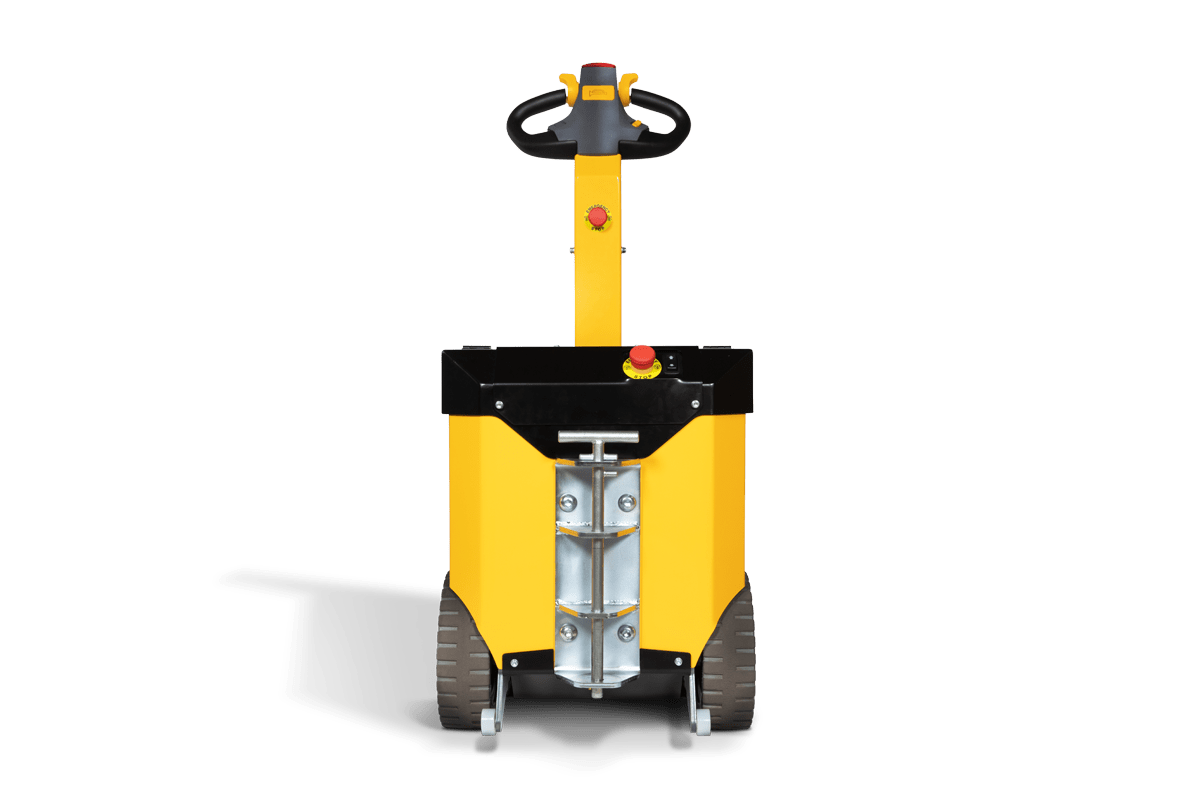

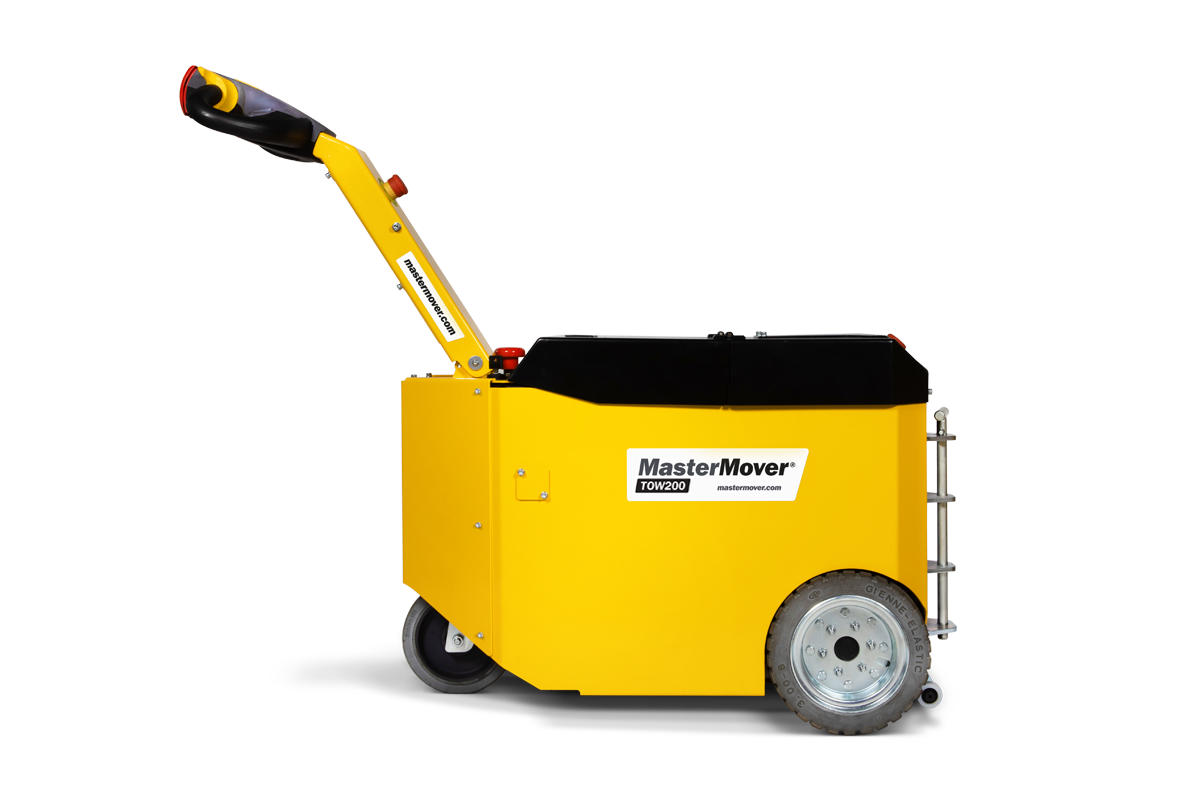

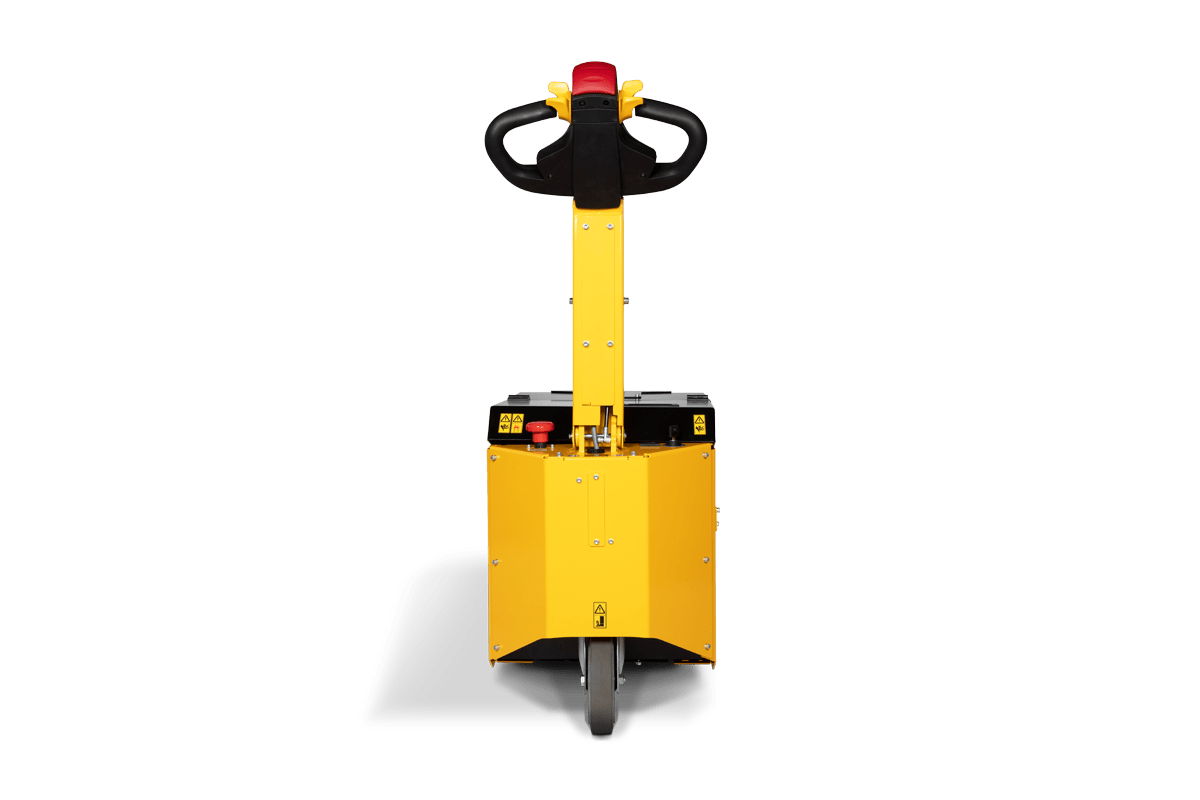

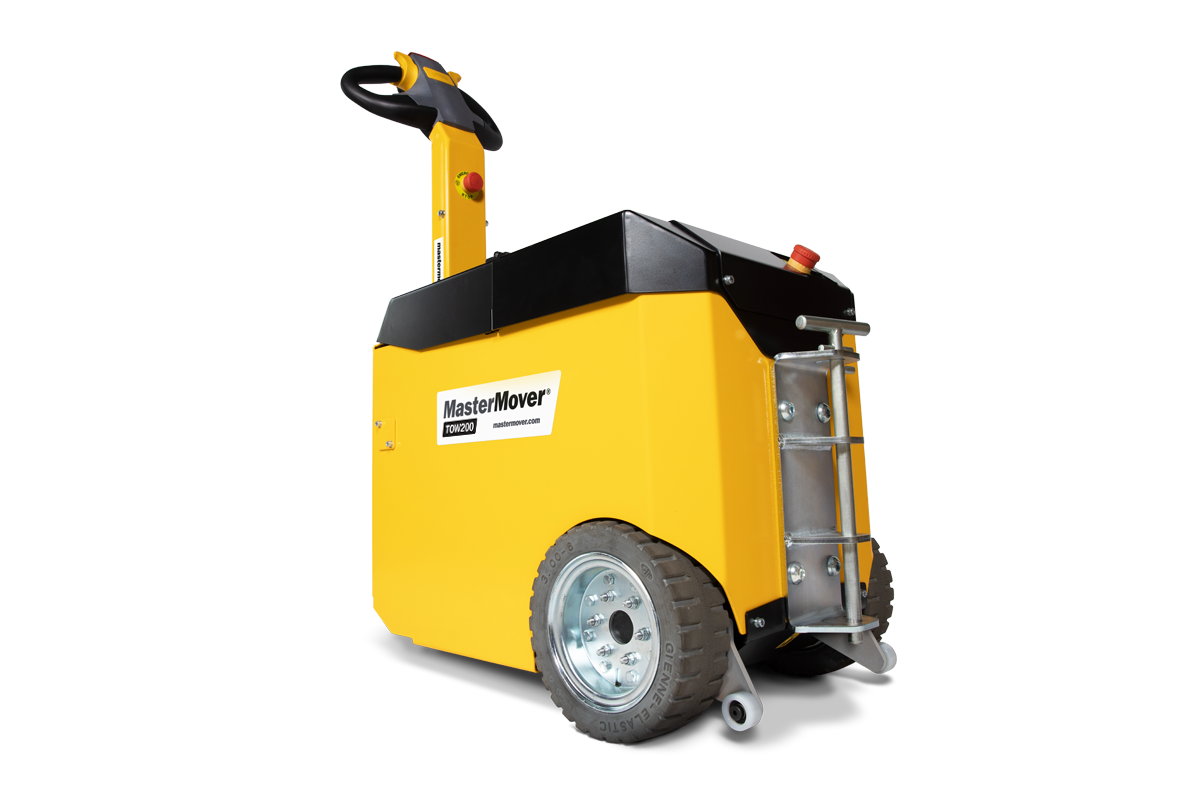

MASTERMOVER ELECTRIC TOW TUG | TOW200 (2000KG)
MasterMover TOW200 electric tug for controlled movement of wheeled loads; up to 2000 kg; slope rating 10 degrees; runtime 16.6 km; charge time 5.5h.
Key specs: Load: 2000 kg | Slope: 10º | Runtime: 16.6 km | IP: IP44
MasterMover TOW200 electric tug for controlled movement of wheeled loads; up to 2000 kg; slope rating 10 degrees; runtime 16.6 km; charge time 5.5h.
MASTERMOVER ELECTRIC TOW TUG | TOW200 (2000KG) technical information
| Model | TOW200 |
|---|---|
| Series | MasterTow |
| Load capacity | 2000 kg |
| Maximum load on castors | rails | 2,000 kg | 8,000 kg |
| Maximum force push | pull | 785 N | 1, 177 N |
| Maximum slope | 10º |
| Runtime | 16.6 km |
| Charge time | 5.5h |
| Machine weight | 321 kg |
| Combined machine and battery weight | 375 kg |
| Drive type | Electric |
| Drive motor power | 0.8 kW |
| Standard machine speed | 2 KPH |
| Voltage | 24 v |
| IP rating | IP44 |
| Dimensions (W x L x H) | 493 x 940 x 1272 mm |
| Lithium battery runtime | 17.9 km |
| Lithium charge time | 2 hrs |
Before quotation review
- Confirm actual load weight, route distance, floor condition and gradient.
- Check castor, rail or wheel condition because rolling resistance changes the required tug capacity.
- Confirm coupling point, operator position, turning space and whether the machine is used indoors, outdoors, wet areas or controlled environments.
- For stainless steel, ATEX/IECEx, washdown or special-environment use, confirm documentation and site conditions before final recommendation.
Coupling options: Pin Coupling (male) Optional; Tow Ball Coupling (male) Optional; Tow Arm Coupling (male) Optional; Box Coupling (male | female) Optional; No Coupling Optional
Machine options: Additional AGM Battery Optional; Flashing Safety Light and Motion Bleeper Optional; Machine Crawl Coupling Assist Optional; Fifth Wheel Optional; Two Speed Selector Switch Optional; Battery Protection System Optional; Remote Control Optional; Tiller Steering Optional
Technical information source: MasterMover series page | technical data sheet
