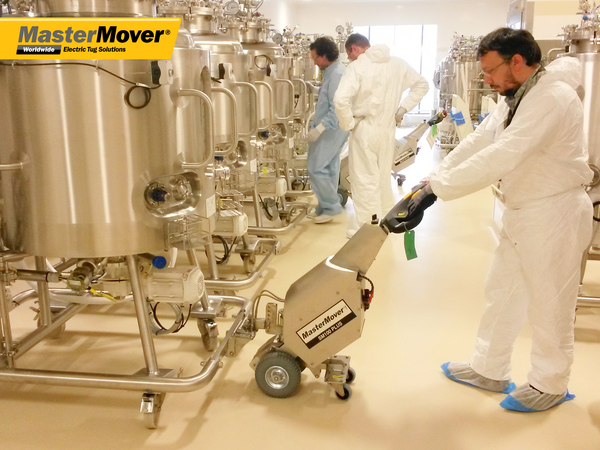

MASTERMOVER STAINLESS STEEL ELECTRIC TUG | SM100+ SS (1200KG)
MasterMover SM100+ SS electric tug for controlled movement of wheeled loads; up to 1200 kg; slope rating 30 degrees; runtime 7.7 km; charge time 4.5h.
Key specs: Load: 1200 kg | Slope: 30º | Runtime: 7.7 km | IP: IP44
MasterMover SM100+ SS electric tug for controlled movement of wheeled loads; up to 1200 kg; slope rating 30 degrees; runtime 7.7 km; charge time 4.5h.
MASTERMOVER STAINLESS STEEL ELECTRIC TUG | SM100+ SS (1200KG) technical information
| Model | SM100+ SS |
|---|---|
| Series | Stainless Steel |
| Load capacity | 1200 kg |
| Maximum load on castors | rails | 1,200 kg | 4,800 kg |
| Maximum force push | pull | 1,079 N | 1,079 N |
| Maximum slope | 30º |
| Runtime | 7.7 km |
| Charge time | 4.5h |
| Machine weight | 72 kg |
| Combined machine and battery weight | 88 kg |
| Drive type | Twin Electric Motor |
| Drive motor power | 2 x 0.22 kW |
| Standard machine speed | (Without two speed selector switch) 4.2 KPH |
| Voltage | 24 v |
| IP rating | IP44 |
| Dimensions (W x L x H) | 412 x 972 x 1048 mm |
| AGM battery runtime | 7.7 km |
| AGM charge time | 4 hrs 30 mins |
| Lithium battery runtime | 15.5 km |
| Lithium charge time | 1 hrs 45 mins |
Before quotation review
- Confirm actual load weight, route distance, floor condition and gradient.
- Check castor, rail or wheel condition because rolling resistance changes the required tug capacity.
- Confirm coupling point, operator position, turning space and whether the machine is used indoors, outdoors, wet areas or controlled environments.
- For stainless steel, ATEX/IECEx, washdown or special-environment use, confirm documentation and site conditions before final recommendation.
Coupling options: A-Frame Coupling – Straight (male | female) Optional; A-Frame Coupling – Angled (male | female) Optional; Box Section Optional; Variable Kit Optional
Machine options: Additional AGM Battery Optional; Flashing Safety Light and Motion Bleeper Optional; Two Speed Selector Switch Optional; Battery Protection System Standard
Technical information source: MasterMover series page | technical data sheet
Technical note: YKTOH series category route is not live yet.
