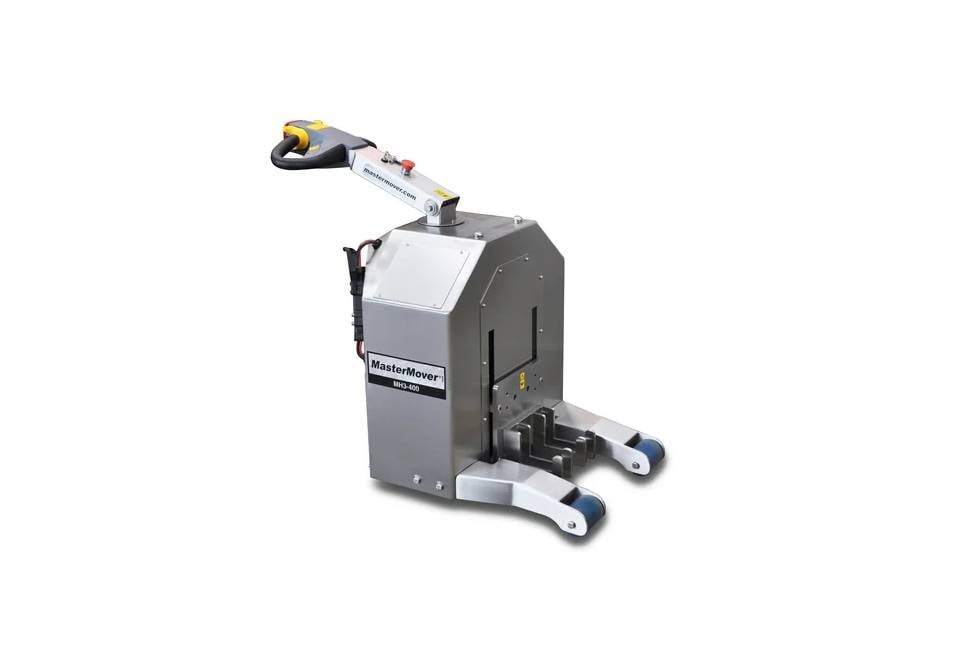

MASTERMOVER STAINLESS STEEL ELECTRIC TUG | MH400+ SS (4000KG)
MasterMover MH400+ SS electric tug for controlled movement of wheeled loads; up to 4000 kg; slope rating 7 degrees; runtime 9.2 km; charge time 5.5h.
Key specs: Load: 4000 kg | Slope: 7 degrees | Runtime: 9.2 km | IP: IP44
MasterMover MH400+ SS electric tug for controlled movement of wheeled loads; up to 4000 kg; slope rating 7 degrees; runtime 9.2 km; charge time 5.5h.
MASTERMOVER STAINLESS STEEL ELECTRIC TUG | MH400+ SS (4000KG) technical information
| Model | MH400+ SS |
|---|---|
| Series | Stainless Steel |
| Load capacity | 4000 kg |
| Maximum load on castors | rails | 4,000 kg | 16,000 kg |
| Maximum force push | pull | 3,924 N | 3,924 N |
| Maximum slope | 7 degrees |
| Runtime | 9.2 km |
| Charge time | 5.5h |
| Machine weight | Custom |
| Drive type | Electric |
| Drive motor power | 2 kW |
| Standard machine speed | (Without two speed selector switch) 2 KPH |
| Voltage | 24 v |
| IP rating | IP44 |

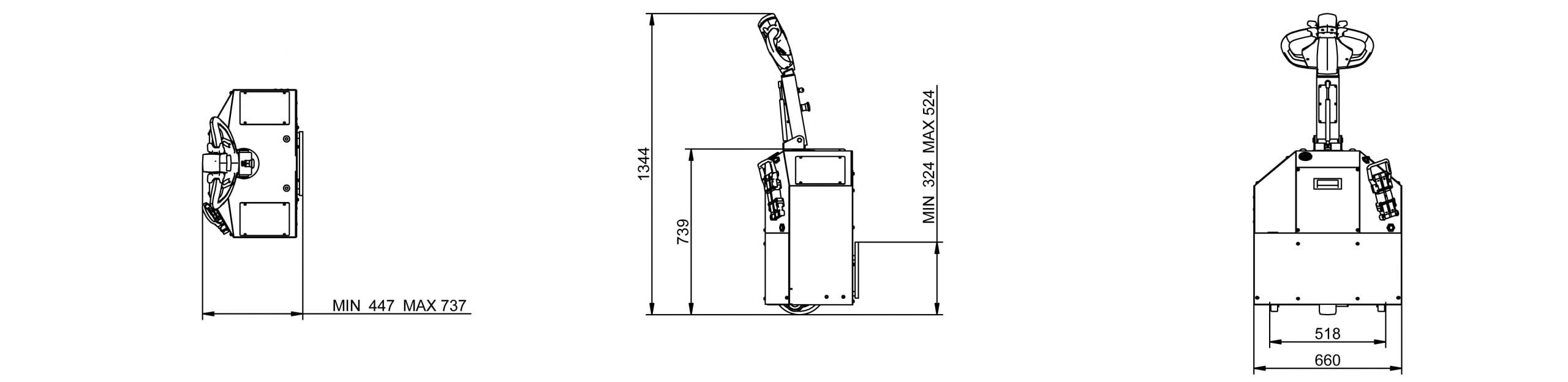

| Dimensions (W x L x H) | 660 x 448 x 1350 mm |
Before quotation review
- Confirm actual load weight, route distance, floor condition and gradient.
- Check castor, rail or wheel condition because rolling resistance changes the required tug capacity.
- Confirm coupling point, operator position, turning space and whether the machine is used indoors, outdoors, wet areas or controlled environments.
- For stainless steel, ATEX/IECEx, washdown or special-environment use, confirm documentation and site conditions before final recommendation.
Machine options: Two Speed Selector Switch Optional; Drive Wheel – 316 Stainless Steel Optional
Technical information source: MasterMover series page | technical data sheet
Technical note: YKTOH series category route is not live yet.
