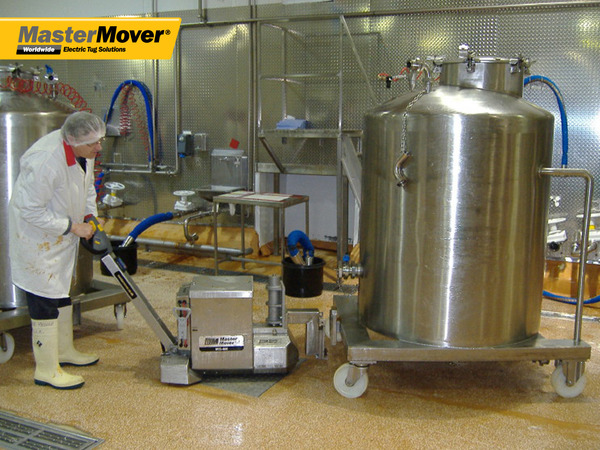

MASTERMOVER STAINLESS STEEL ELECTRIC TUG | MT5/400+ SS (4000KG)
MasterMover MT5/400+ SS electric tug for controlled movement of wheeled loads; up to 4000 kg; slope rating 7 degrees; runtime 12.4 km; charge time 8.25h.
Key specs: Load: 4000 kg | Slope: 7º | Runtime: 12.4 km | IP: IP44 | IP55â€
MasterMover MT5/400+ SS electric tug for controlled movement of wheeled loads; up to 4000 kg; slope rating 7 degrees; runtime 12.4 km; charge time 8.25h.
MASTERMOVER STAINLESS STEEL ELECTRIC TUG | MT5/400+ SS (4000KG) technical information
| Model | MT5/400+ SS |
|---|---|
| Series | Stainless Steel |
| Load capacity | 4000 kg |
| Maximum load on castors | rails | 4,000 kg | 16,000 kg |
| Maximum force push | pull | 3,924 N | 3,924 N |
| Maximum slope | 7º |
| Runtime | 12.4 km |
| Charge time | 8.25h |
| Machine weight | 210 kg |
| Combined machine and battery weight | 283 kg |
| Drive type | Electric |
| Drive motor power | 1 kW |
| Standard machine speed | (Without two speed selector switch) 2 KPH |
| Voltage | 24 v |
| IP rating | IP44 | IP55†|
| Dimensions (W x L x H) | 550 x 1196 x 1171 mm |
| Lithium battery runtime | 15 km |
| Lithium charge time | 3 hrs |
Before quotation review
- Confirm actual load weight, route distance, floor condition and gradient.
- Check castor, rail or wheel condition because rolling resistance changes the required tug capacity.
- Confirm coupling point, operator position, turning space and whether the machine is used indoors, outdoors, wet areas or controlled environments.
- For stainless steel, ATEX/IECEx, washdown or special-environment use, confirm documentation and site conditions before final recommendation.
Coupling options: CombiCoupling (male | female) Optional; BoxCoupling (male | female) Optional
Machine options: Additional Battery Optional; Flashing Safety Light and Motion Bleeper Optional; Two Speed Selector Switch Optional; CombiLock Optional; Stainless Steel Drive Wheel Optional; Quick Release Coupling Pins Optional
Technical information source: MasterMover series page | technical data sheet
Technical note: YKTOH series category route is not live yet.
