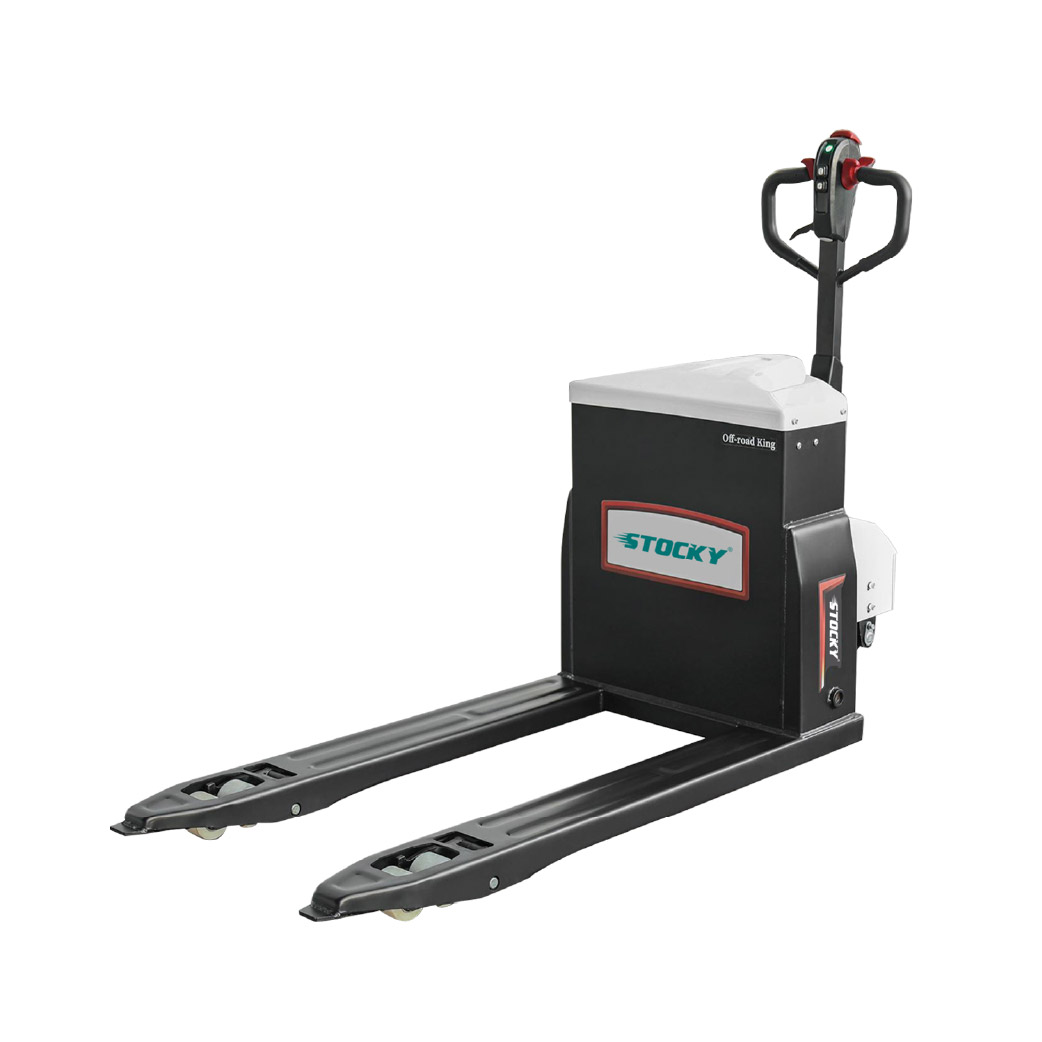

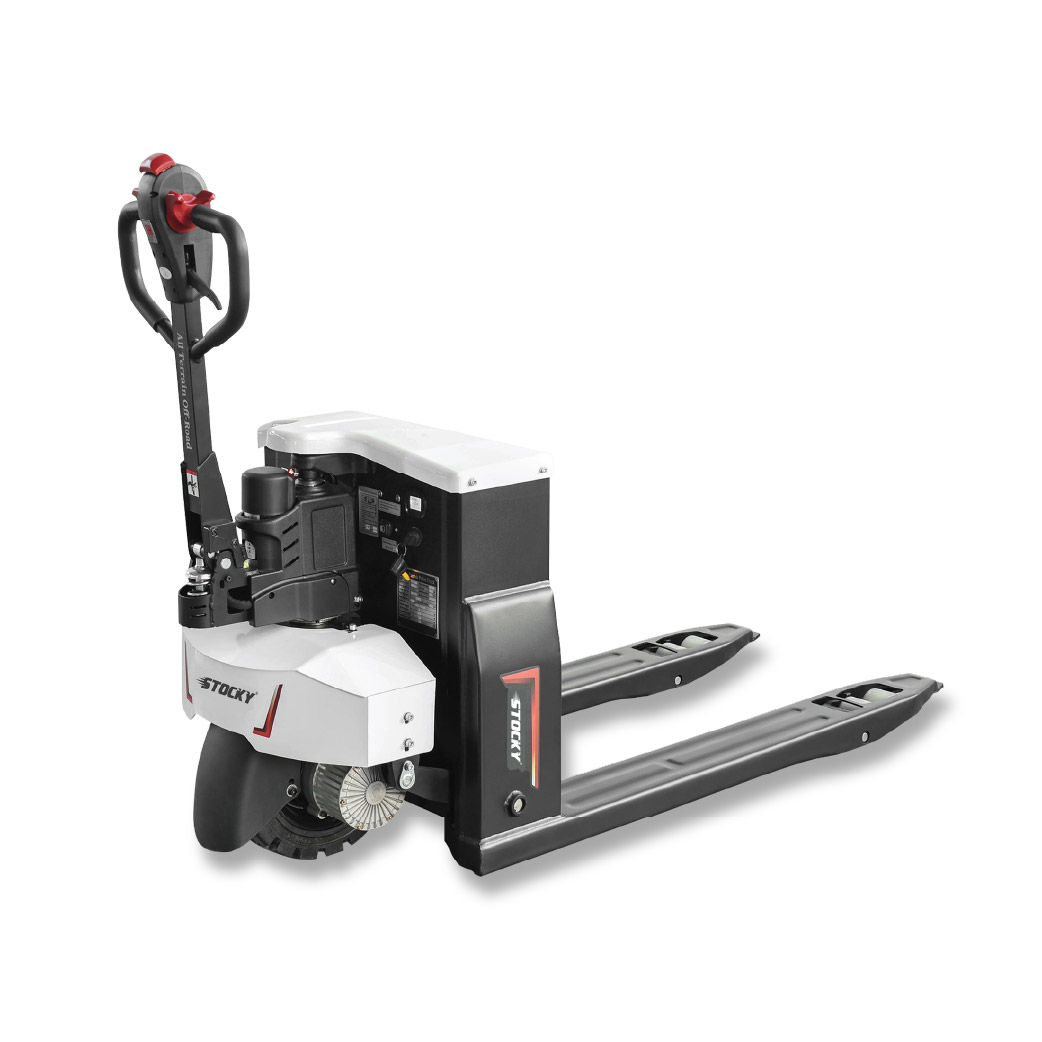

STOCKY Off-Road Electric Pallet Truck
$2,071.00
The STOCKY Off-Road Electric Pallet Truck is a heavy-duty material handling solution designed for transporting goods on uneven ground, outdoor areas and challenging workplace surfaces in Singapore. With a load capacity of up to 3000kg, this electric pallet truck is suitable for businesses that require reliable pallet movement in warehouses, factories, logistics areas, construction-related sites, industrial yards and other demanding environments.
Built with a robust frame, durable chassis and thickened fork design, the STOCKY Off-Road Electric Pallet Truck provides strong support for daily material handling operations. Its large off-road wheels offer better passability across complex road surfaces, making it suitable for applications where standard pallet trucks may not perform effectively.
The truck is equipped with nylon wheels, which provide low drag effort and good resistance to chemicals. This makes it suitable for industries such as food, fishing, chemical handling and other operations with smooth floor areas. With an intelligent CAN-BUS control system and reliable hydraulic lifting design, this electric pallet truck helps improve handling efficiency, safety and operational reliability.
High Strength Chassis Design
The high-strength chassis and compact structure provide durability and manoeuvrability. The reinforced design, precise metal welding and strong material selection help support demanding daily operations.
Battery Capacity Option
Available with an AGM 48V / 32Ah battery, designed to pair with compatible chargers to meet different working time requirements.
Security and Stability
The hydraulic lifting system is designed without external oil pipes, helping to improve reliability and reduce the risk of oil leakage from joints or pipes.
Intelligent Control System
The CAN-BUS control system automatically monitors the truck’s status and detects faults in real time, supporting safer and more efficient operation.
- Heavy-duty off-road electric pallet truck for material handling
- Load capacity of up to 3000kg
- Suitable for uneven ground, outdoor areas and complex road surfaces
- Robust frame and durable chassis for long service life
- Thickened and reinforced fork design for improved durability
- Large off-road wheels for better passability
- Nylon wheels with low drag effort and high chemical resistance
- Suitable for food, fishing, chemical and warehouse industries with smooth floors
- AGM 48V / 32Ah battery option available
- Intelligent CAN-BUS control system for real-time truck status monitoring
- Hydraulic lifting system designed without external oil pipes to reduce oil leakage risk
- Suitable for warehouses, factories, logistics operations and industrial workplaces in Singapore
| No. | Model | #S02-02-EPT30QNR | #S02-02-EPT30QSE |
|---|---|---|---|
| 1 | Power Form | Electrical | |
| 2 | Operation | Pedestrian | |
| 3 | Load | 3000 kg | |
| 4 | Load center distance | 600 mm | |
| 5 | Wheelbase | 1230/1300 mm | |
| 6 | Self weight with battery | 212 kg | |
| 7 | Wheel Type | Front Rubber, rear PU/nylon | |
| 8 | Driving wheel size (diameter x width) | Ø350×100 mm | |
| 9 | Load-bearing wheel size (diameter/width) | Ø80×70/60 mm | |
| 10 | Number of wheels Drive Side / Load Side | 1/4 | |
| 11 | Maximum height of fork | 200 mm | |
| 12 | Lifting stroke | 115 mm | |
| 13 | Minimum height of fork (±2mm) | 85 mm | |
| 14 | Fork outer distance | 550 mm | 685 mm |
| 15 | Fork inner distance | 250/385/240/365 mm | |
| 16 | Length of forks | 1150 mm | 1220 mm |
| 17 | Width of forks | 150/160 mm | |
| 18 | Thickness of forks | 60 mm | |
| 19 | Overall width | 570 mm | 685 mm |
| 20 | Overall height without handles | 770 mm | |
| 21 | Overall length | 1780 mm | |
| 22 | Overall height with handle | 1260 mm | |
| 23 | Turning radius | 1550 mm | |
| 24 | Travel speed, laden/unladen | 4/4.5 km/h | |
| 25 | Lifting speed, laden/unladen | 15/19 mm/s | |
| 26 | Maximum climbing grade, laden/unladen | 8/16 % | |
| 27 | Brake Type | Electronic brake / electromagnetic brake | |
| 28 | Rated power of driving method | 1.0 kw | |
| 29 | Rated power of lifting method | 0.8 kw | |
| 30 | Battery | AGV 48/32 V/Ah | |
| 31 | Battery weight | 36 kg | |
