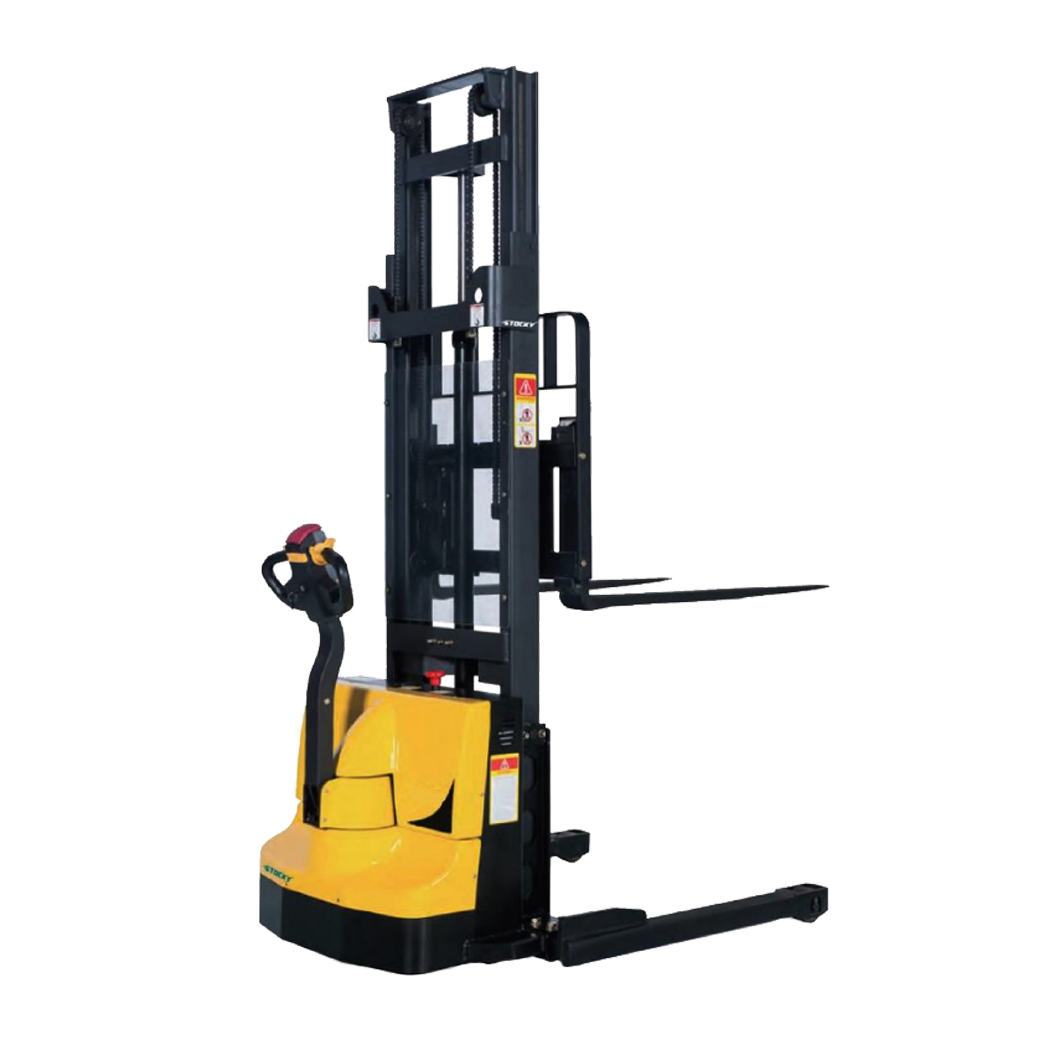

STOCKY Electric Straddle Leg Stacker
#S02-02-ES1530SL
The STOCKY Electric Stacker with Straddle Leg is a compact and ergonomic walkie stacker designed for pallet handling, lifting and stacking in warehouses, production areas, retail environments and stockrooms. With its mono mast structure and side-operating design, it provides excellent visibility, easy manoeuvrability and better control during daily material handling operations.
Designed with a long tiller and small turning radius, this electric stacker is suitable for working in narrow aisles and limited spaces. The sideways long tiller design helps improve operator visibility and handling stability, while the reinforced chassis supports longer service life for demanding warehouse use.
This model is available with straddle leg options, making it suitable for handling different pallet sizes while improving stability during lifting and positioning. It is a practical choice for businesses looking to improve productivity, reduce manual handling effort and enhance workplace ergonomics.
- Compact electric walkie stacker for warehouse and retail use
- Mono mast design for improved visibility
- Side-operating design for easier manoeuvrability
- Ergonomic long tiller design for safer and more comfortable operation
- Small turning radius for narrow aisle handling
- Sideways tiller design for better stability and operator view
- Reinforced and robust chassis for longer service life
- Built-in charger for convenient charging
- Battery discharge indicator with automatic lift cut-off function
- Straddle leg design suitable for different pallet sizes
- Available with adjustable or fixed straddle leg options
- Optional lithium battery for quick charging
- Suitable for pallet lifting, stacking, positioning and light warehouse operations
| Product Code | #S02-02-ES1530SL |
|---|---|
| Capacity | 1500 KG |
| Load Centre | 600 mm |
| Wheelbase | 1235 mm |
| Service Weight (Without battery) | 490 KG |
| Battery Weight | Lithium Battery 20 KG |
| Lower Mast Height | 2030 mm |
| Lifting Height | 3000 mm |
| Overall Length | 1748 mm |
| Fork Dimensions | 55 x 160 x 1125 mm |
| Turning Radius | 1440 mm |
| Battery Voltage | Lithium Battery 24V |
| Battery Size L x W x H | 330 x 90 x 480 mm |
