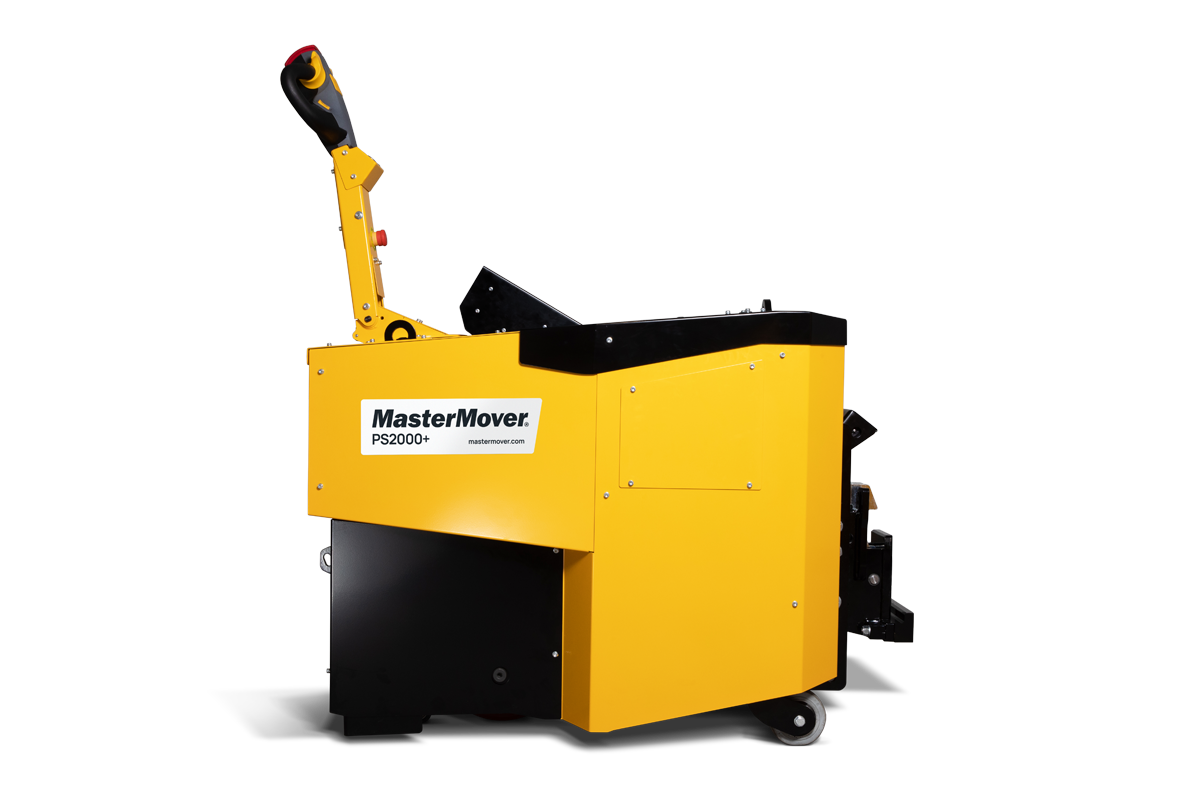

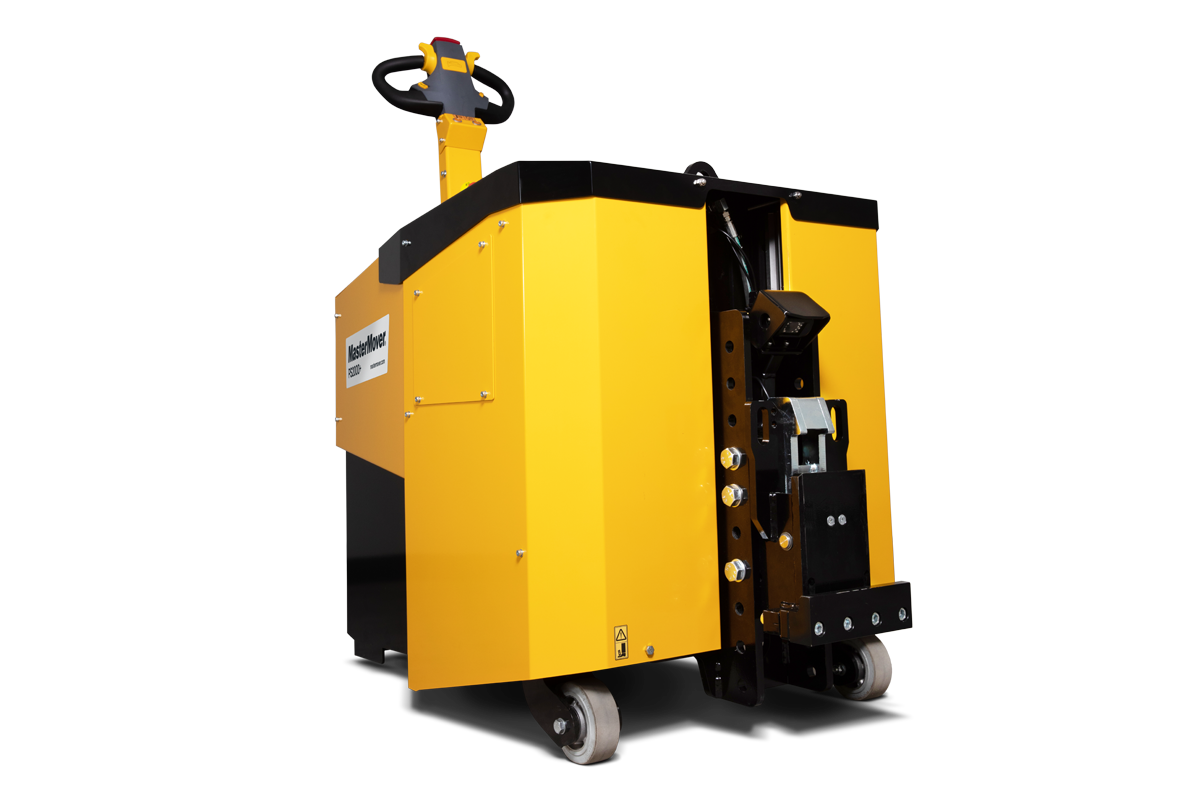

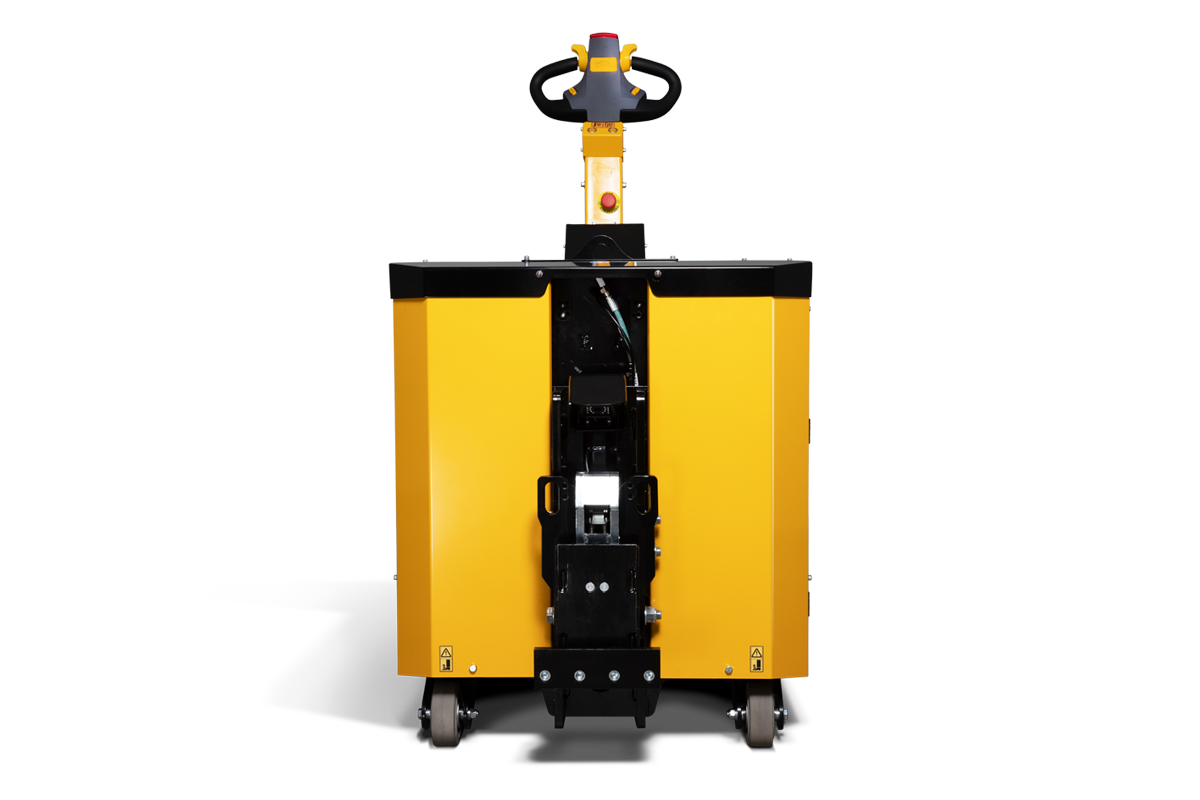

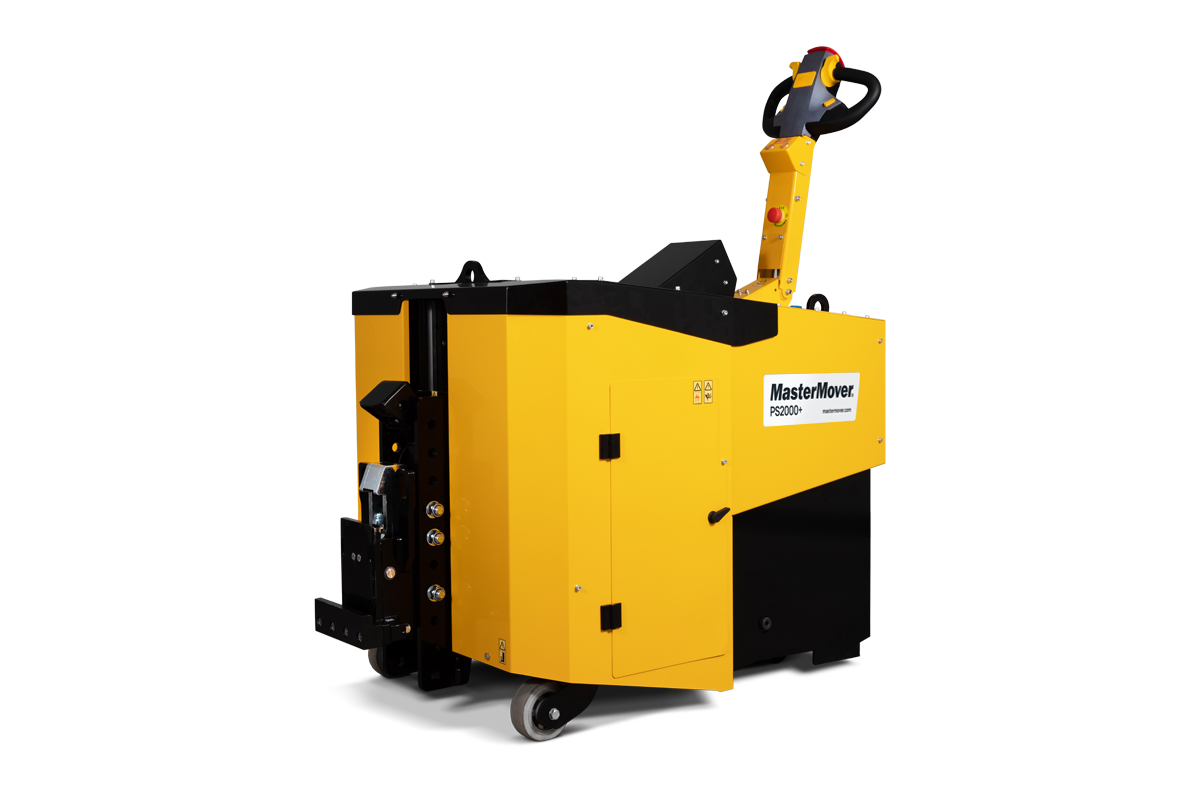

MASTERMOVER WIRELESS CONTROLLED ELECTRIC TUG | PS2000+ (20000KG)
MasterMover PS2000+ electric tug for controlled movement of wheeled loads; up to 20000 kg; slope rating 8 degrees; runtime 5.9 km; charge time 8.5h.
Key specs: Load: 20000 kg | Slope: 8 degrees | Runtime: 5.9 km | IP: IP44
MasterMover PS2000+ electric tug for controlled movement of wheeled loads; up to 20000 kg; slope rating 8 degrees; runtime 5.9 km; charge time 8.5h.
MASTERMOVER WIRELESS CONTROLLED ELECTRIC TUG | PS2000+ (20000KG) technical information
| Model | PS2000+ |
|---|---|
| Series | PowerSteered |
| Load capacity | 20000 kg |
| Maximum load on castors | rails | 20,000 kg | 80,000 kg |
| Maximum force push | pull | 13,729 N | 13,729 N |
| Maximum slope | 8 degrees |
| Runtime | 5.9 km |
| Charge time | 8.5h |
| Machine weight | 780 kg |
| Drive type | Electric |
| Drive motor power | 3.5 kW |
| Voltage | 24 v |
| IP rating | IP44 |
| Dimensions (W x L x H) | 835 x 1458 x 1608 mm |
| AGM battery runtime | 5.9 km |
| AGM charge time | 8 hrs 30 mins |
Before quotation review
- Confirm actual load weight, route distance, floor condition and gradient.
- Check castor, rail or wheel condition because rolling resistance changes the required tug capacity.
- Confirm coupling point, operator position, turning space and whether the machine is used indoors, outdoors, wet areas or controlled environments.
- For stainless steel, ATEX/IECEx, washdown or special-environment use, confirm documentation and site conditions before final recommendation.
Coupling options: CombiCoupling (male | female) Optional; Smart Coupling†(male | female) Optional
Machine options: Additional AGM Battery Optional; Lithium Battery Optional; Flashing Safety Light and Motion Bleeper Optional; Status Light Optional; Battery Transportation Stand Optional; Battery Protection System Optional; Wireless E-Stop Optional; Remote Control – tiller Optional; Remote Control – no tiller Optional; TillerLink Optional; MultiLink Optional; Wireless Autosteer Optional; AGV Line Follow Optional
Technical information source: MasterMover series page | technical data sheet
Technical note: YKTOH series category route is not live yet.
