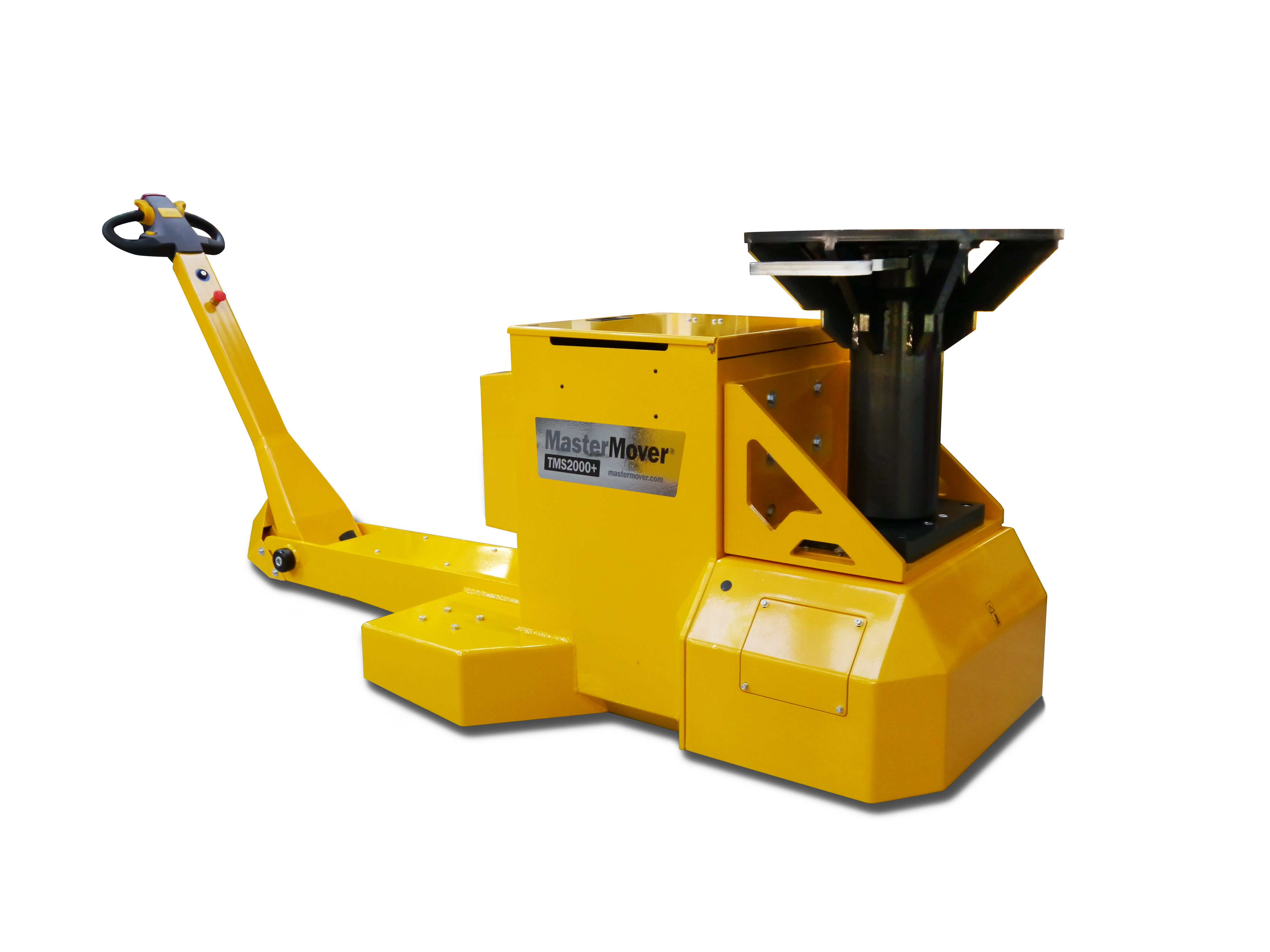

MASTERMOVER TRAILER MOVING SYSTEM | TMS2000+ (20000KG)
MasterMover TMS2000+ electric tug for controlled movement of wheeled loads; up to 20000 kg; slope rating 7 degrees; runtime 6.3 km; charge time 6h.
Key specs: Load: 20000 kg | Slope: 7ยบ | Runtime: 6.3 km | IP: IP44
MasterMover TMS2000+ electric tug for controlled movement of wheeled loads; up to 20000 kg; slope rating 7 degrees; runtime 6.3 km; charge time 6h.
MASTERMOVER TRAILER MOVING SYSTEM | TMS2000+ (20000KG) technical information
| Model | TMS2000+ |
|---|---|
| Series | Trailer Moving System |
| Load capacity | 20000 kg |
| Maximum load on castors | rails | 20,000 kg | 80,000 kg |
| Maximum force push | pull | 19, 129 N | 19, 129 N |
| Maximum slope | 7ยบ |
| Runtime | 6.3 km |
| Charge time | 6h |
| Machine weight | 854 kg |
| Combined machine and battery weight | 1, 103 kg |
| Drive type | Electric |
| Drive motor power | 8 kW |
| Standard machine speed | (Without two speed selector switch) 2 KPH |
| Voltage | 48 v |
| IP rating | IP44 |

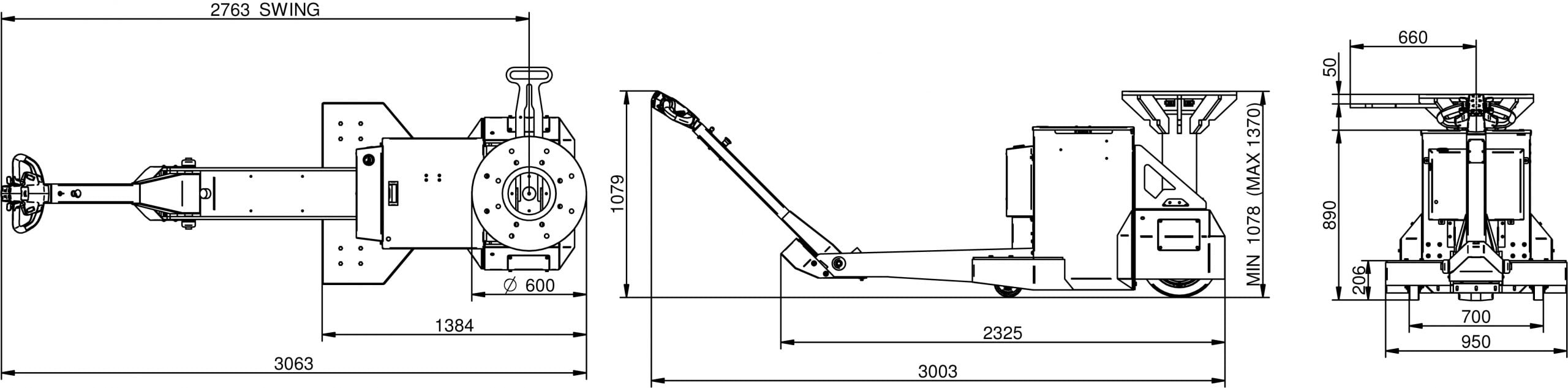

| Dimensions (W x L x H) | 950 x 2387 x 1075 mm |
| AGM battery runtime | 6.3 km |
| AGM charge time | 6 hrs |
Before quotation review
- Confirm actual load weight, route distance, floor condition and gradient.
- Check castor, rail or wheel condition because rolling resistance changes the required tug capacity.
- Confirm coupling point, operator position, turning space and whether the machine is used indoors, outdoors, wet areas or controlled environments.
- For stainless steel, ATEX/IECEx, washdown or special-environment use, confirm documentation and site conditions before final recommendation.
Coupling options: Mast 50mm King Pin (male) Optional; Mast 90mm King Pin (male) Optional
Machine options: Flashing Safety Light and Motion Bleeper Optional; Two Speed Selector Switch Optional; Lift and Tie-Down Points Optional; Quick Release Air Compressor Optional
Technical information source: MasterMover series page | technical data sheet
Technical note: YKTOH series category route is not live yet.
