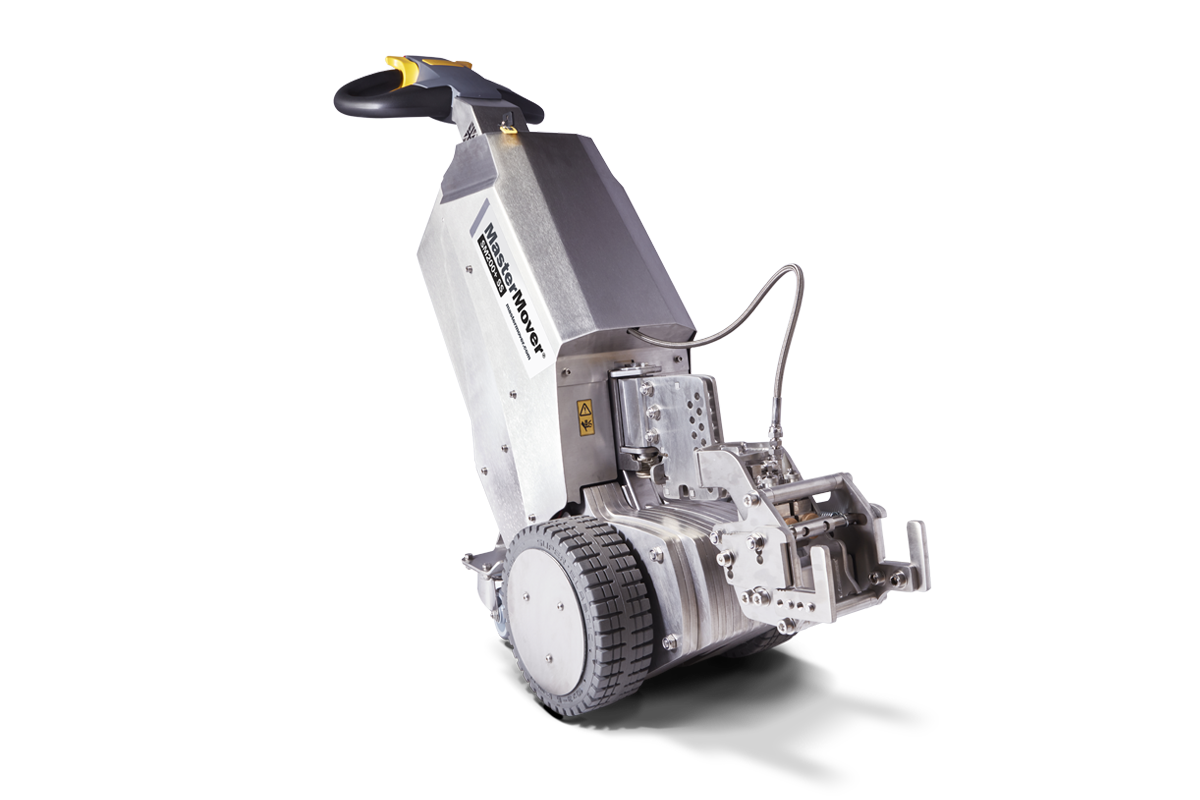

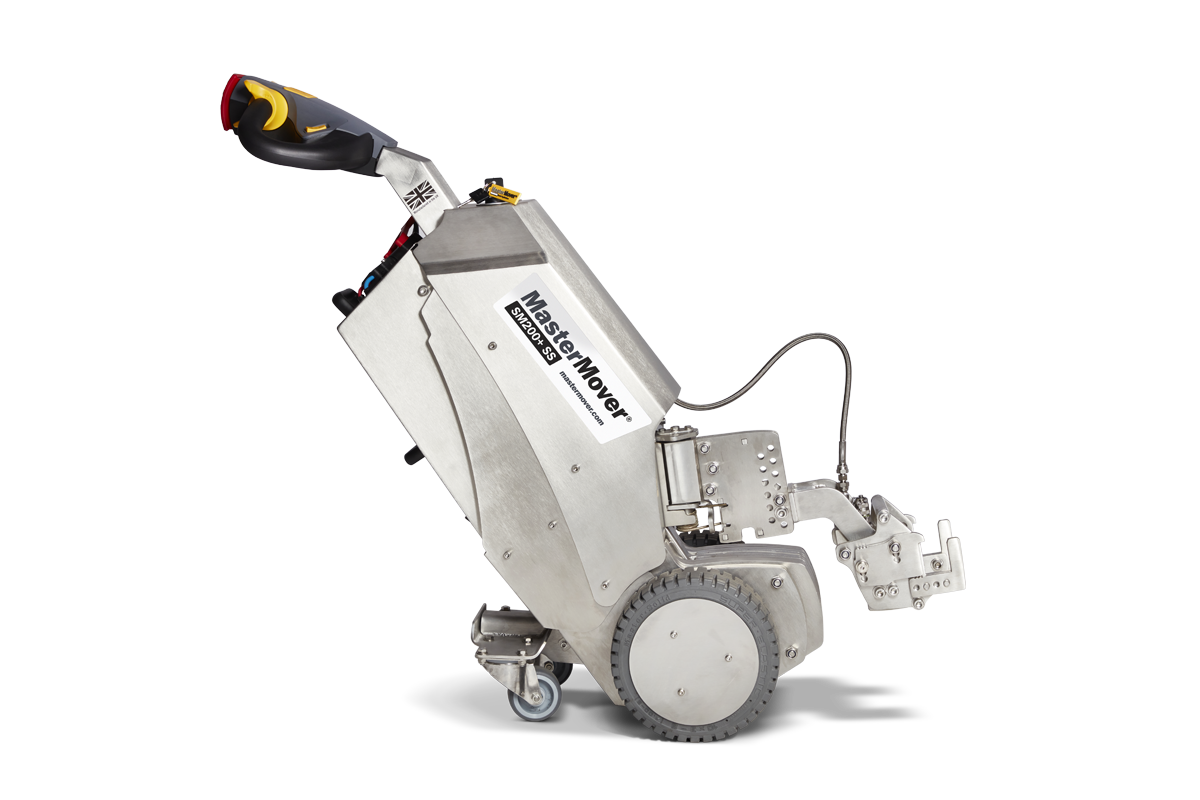

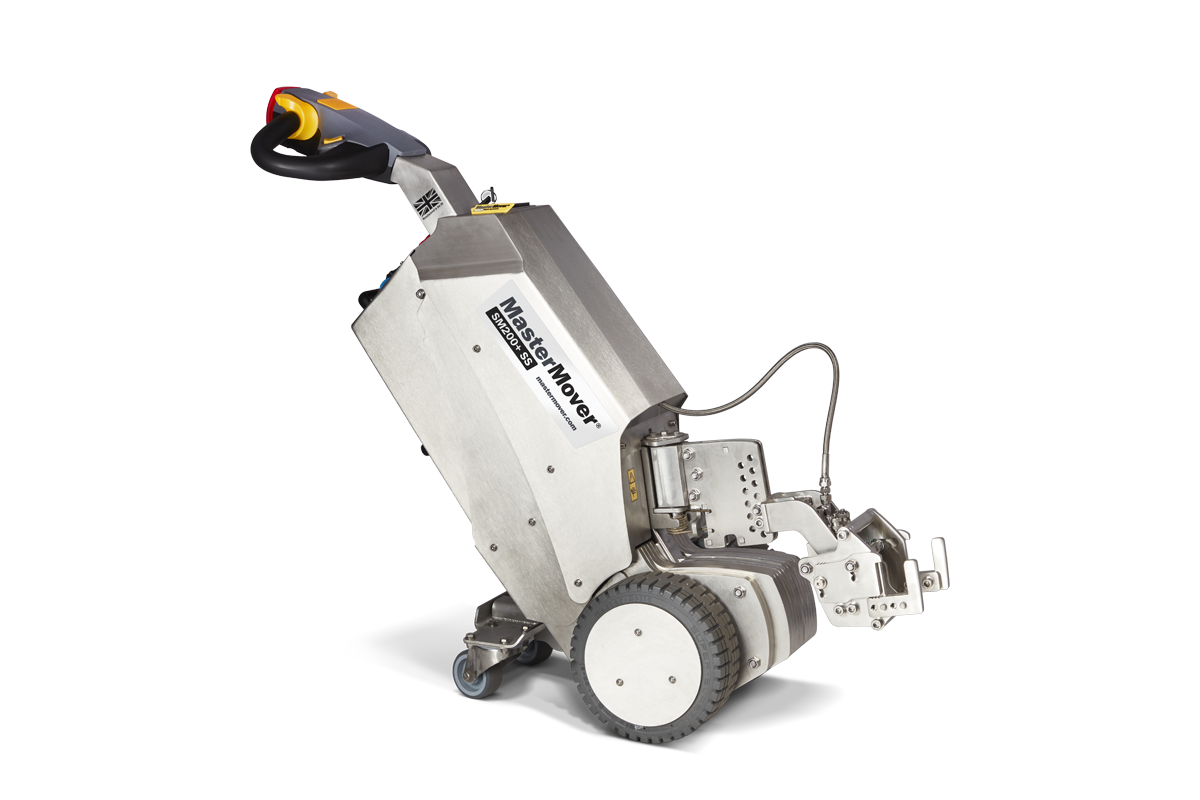

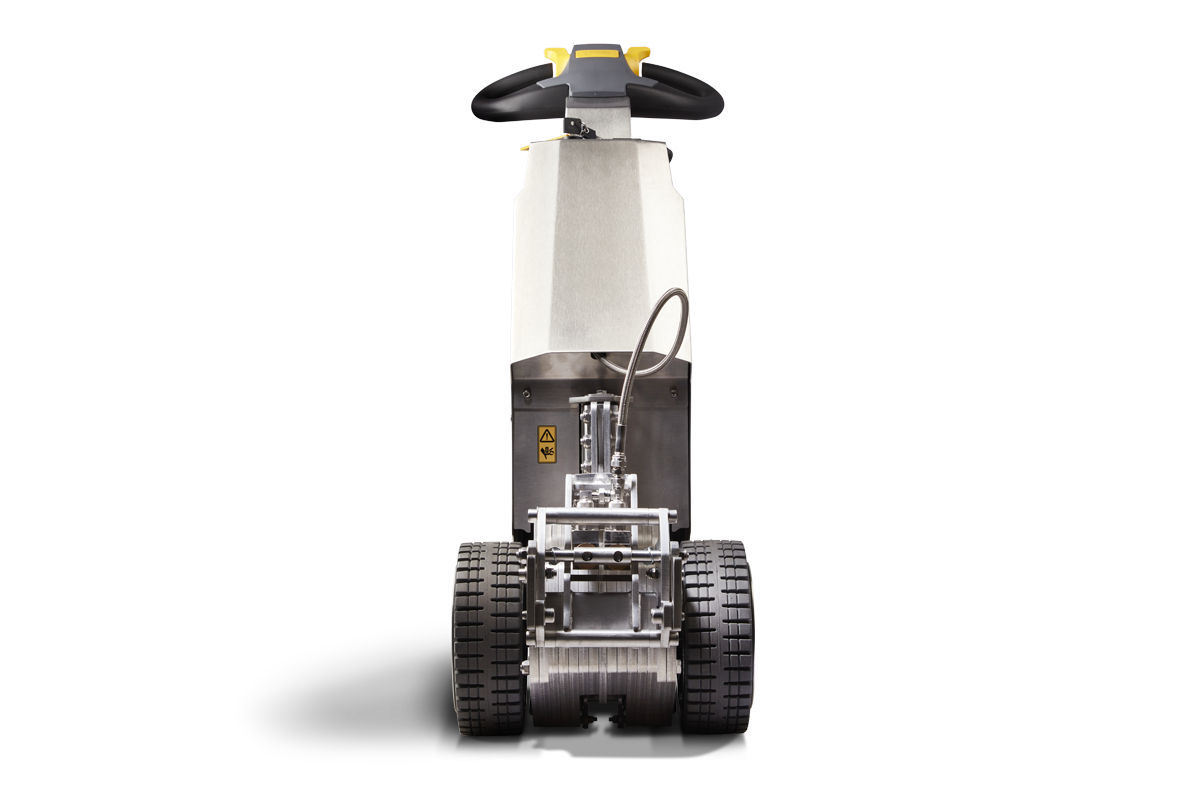

MASTERMOVER STAINLESS STEEL ELECTRIC TUG | SM200+ SS (2000KG)
MasterMover SM200+ SS electric tug for controlled movement of wheeled loads; up to 2000 kg; slope rating 10 degrees; runtime 4.2 km; charge time 5.5h.
Key specs: Load: 2000 kg | Slope: 10º | Runtime: 4.2 km | IP: IP44
MasterMover SM200+ SS electric tug for controlled movement of wheeled loads; up to 2000 kg; slope rating 10 degrees; runtime 4.2 km; charge time 5.5h.
MASTERMOVER STAINLESS STEEL ELECTRIC TUG | SM200+ SS (2000KG) technical information
| Model | SM200+ SS |
|---|---|
| Series | Stainless Steel |
| Load capacity | 2000 kg |
| Maximum load on castors | rails | 2,000 kg | 8,000 kg |
| Maximum force push | pull | 1,570 N | 1,570 N |
| Maximum slope | 10º |
| Runtime | 4.2 km |
| Charge time | 5.5h |
| Machine weight | 125 kg |
| Combined machine and battery weight | 149 kg |
| Drive type | Twin Electric Motor |
| Drive motor power | 2 x 0.24 kW |
| Standard machine speed | (Without two speed selector switch) 2 KPH |
| Voltage | 24 v |
| IP rating | IP44 |
| Dimensions (W x L x H) | 412 x 989 x 1087 mm |
| AGM charge time | 7 hrs |
| Lithium charge time | 1 hrs 45 mins |
Before quotation review
- Confirm actual load weight, route distance, floor condition and gradient.
- Check castor, rail or wheel condition because rolling resistance changes the required tug capacity.
- Confirm coupling point, operator position, turning space and whether the machine is used indoors, outdoors, wet areas or controlled environments.
- For stainless steel, ATEX/IECEx, washdown or special-environment use, confirm documentation and site conditions before final recommendation.
Coupling options: Optional; Box Section Optional; Hydraulic AutoTilt Variable Kit Optional
Machine options: Additional AGM Battery Optional; Flashing Safety Light and Motion Bleeper Optional; Two Speed Selector Switch Optional; Battery Protection System Standard
Technical information source: MasterMover series page | technical data sheet
Technical note: YKTOH series category route is not live yet.
