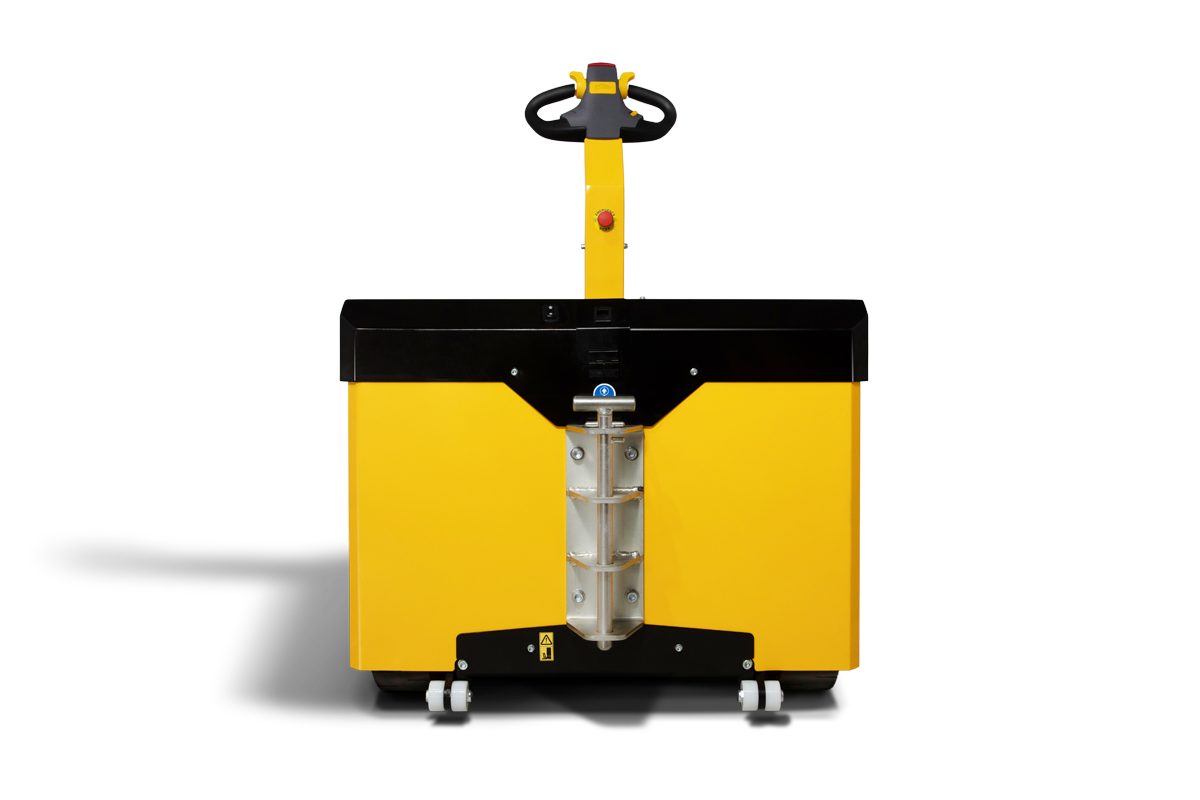

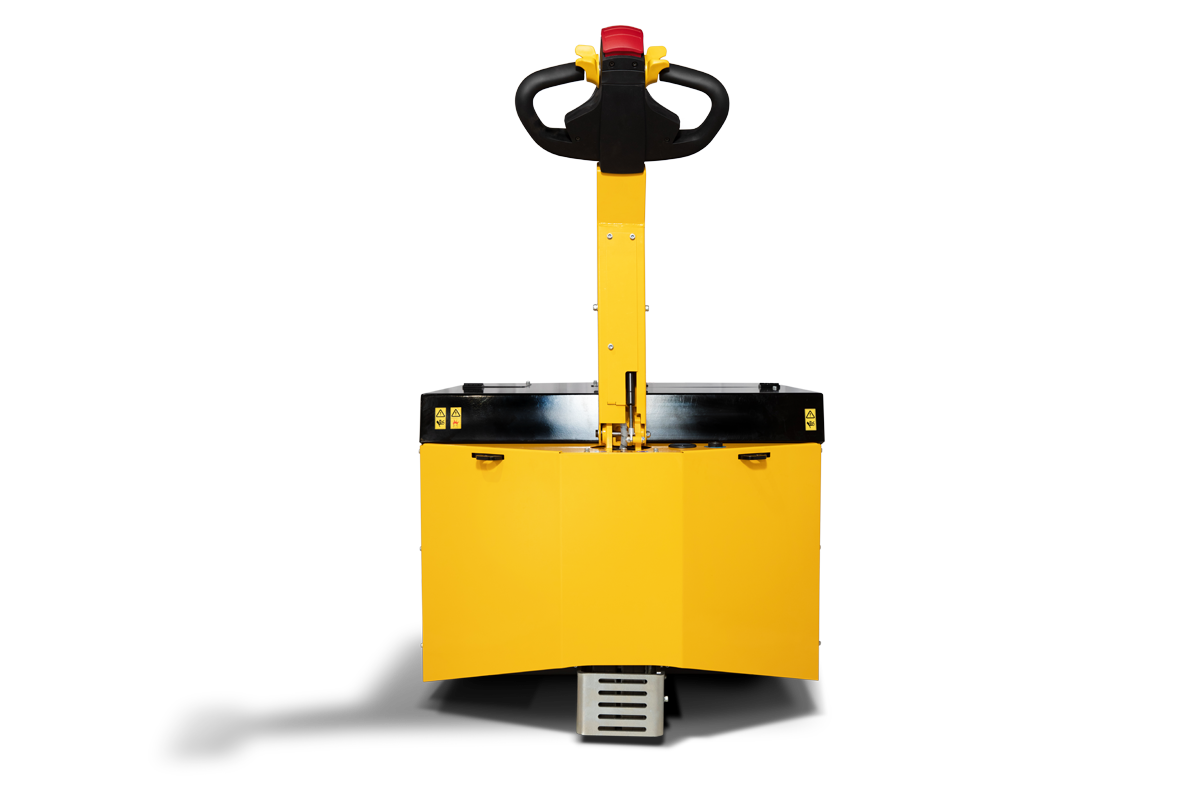

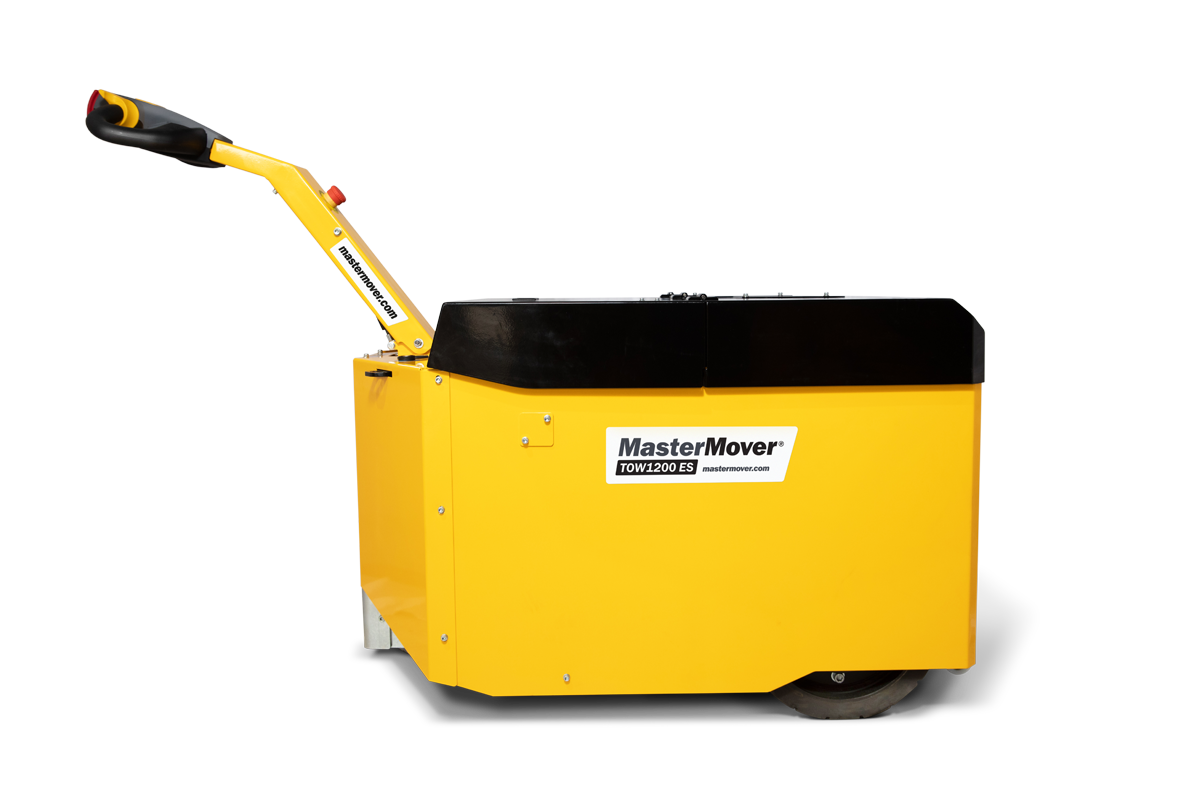

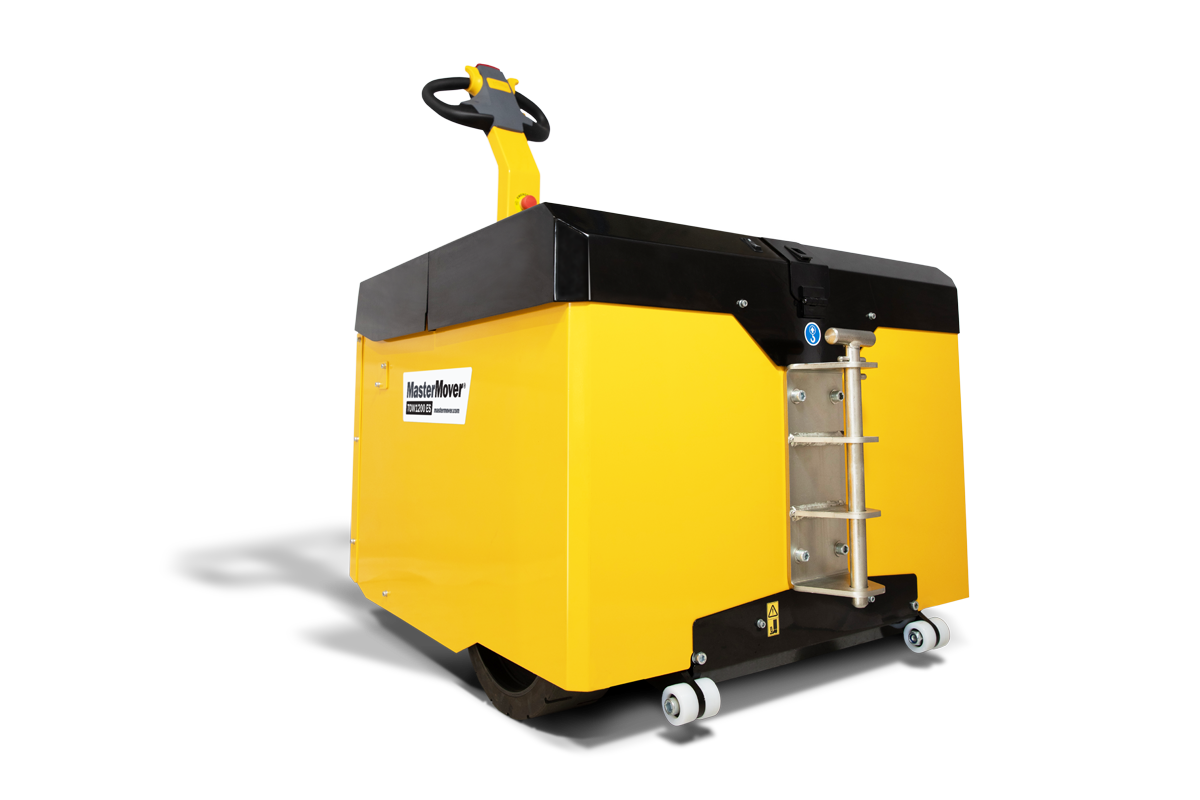

MASTERMOVER ELECTRIC TOW TUG | TOW1200 ES (12000KG)
MasterMover TOW1200 ES electric tug for controlled movement of wheeled loads; up to 12000 kg; slope rating 8 degrees; runtime 8.6 km; charge time 7.5h.
Key specs: Load: 12000 kg | Slope: 8º | Runtime: 8.6 km | IP: IP44
MasterMover TOW1200 ES electric tug for controlled movement of wheeled loads; up to 12000 kg; slope rating 8 degrees; runtime 8.6 km; charge time 7.5h.
MASTERMOVER ELECTRIC TOW TUG | TOW1200 ES (12000KG) technical information
| Model | TOW1200 ES |
|---|---|
| Series | MasterTow |
| Load capacity | 12000 kg |
| Maximum load on castors | rails | 12,000 kg | 48,000 kg |
| Maximum force push | pull | 4,707 N | 7,061 N |
| Maximum slope | 8º |
| Runtime | 8.6 km |
| Charge time | 7.5h |
| Machine weight | 965 kg |
| Combined machine and battery weight | 1, 116 kg |
| Drive type | Electric |
| Drive motor power | 2 x 1.5 kW |
| Standard machine speed | 2 KPH |
| Voltage | 24 v |
| IP rating | IP44 |
| Dimensions (W x L x H) | 904 x 1255 x 1428 mm |
| AGM battery runtime | 8.6 km |
| AGM charge time | (External | Internal charger) 7 hrs 30 mins | 10 hrs 30 mins |
| Lithium battery runtime | 5 km |
| Lithium charge time | 3 hrs |
Before quotation review
- Confirm actual load weight, route distance, floor condition and gradient.
- Check castor, rail or wheel condition because rolling resistance changes the required tug capacity.
- Confirm coupling point, operator position, turning space and whether the machine is used indoors, outdoors, wet areas or controlled environments.
- For stainless steel, ATEX/IECEx, washdown or special-environment use, confirm documentation and site conditions before final recommendation.
Coupling options: Pin Coupling (male) Optional; Tow Ball Coupling (male) Optional; Tow Arm Coupling (male) Optional; Box Coupling (male | female) Optional; No Coupling Optional
Machine options: Additional AGM Battery Optional; Flashing Safety Light and Motion Bleeper Optional; Machine Crawl Coupling Assist Optional; Fifth Wheel Optional
Technical information source: MasterMover series page | technical data sheet
