DYKEM STEEL BLUE Layout Fluid
DYKEM layout fluids product for industrial marking, maintenance, inspection, fabrication and MRO applications. Available from Y K Toh for quotation in Singapore.
DYKEM STEEL BLUE Layout Fluid is available from Y K Toh for Singapore industrial buyers who need reliable DYKEM marking, layout, inspection or maintenance products.
DYKEM® STEEL BLUE® Layout Fluid to scribe sharp, clear, precise lines. When applied, our layout fluids provide a uniform deep blue color that prevents glare and dries in minutes. All Dykem® Layout Fluids create an extremely thin film which adds practically no thickness to the work piece and remains flexible without cracking and chipping.
Recommended use
This listing is prepared for quotation and procurement teams comparing DYKEM products for production, maintenance, fabrication, aviation, transport, marine and industrial MRO applications.
Key features
- Steel Blue® provides a uniform deep color that prevents glare and eye strain
- Allows for sharp, clear, and precise scribes
- Provides a thin film without cracking/chipping and adds practically no thickness to work surface
- Meets A-A 59168 dated 21st May 2014 paragraph 3.1.1 thru 3.2.4.4 with the exception of 3.3 (chemical resistance to chlorinated solvents)
- Dries within minutes
- Reveals defects and pinholes in a variety of surfaces
- Great for inspection of gear tooth contact patterns
- Available in multiple package sizes
- Does not contain any reportable amounts of Xylene
Specifications and approvals
- A-A 59168B paragraph 3.1.1 thru 3.2.4.4; requirements for paragraph 3.3 (chemical resistance) were not tested
- Airbus Helicopters Specification ECA-L3194
Packaging Details
| Part No. US | Net Contents | Container Type | Units/Case | Approximate Case Weight |

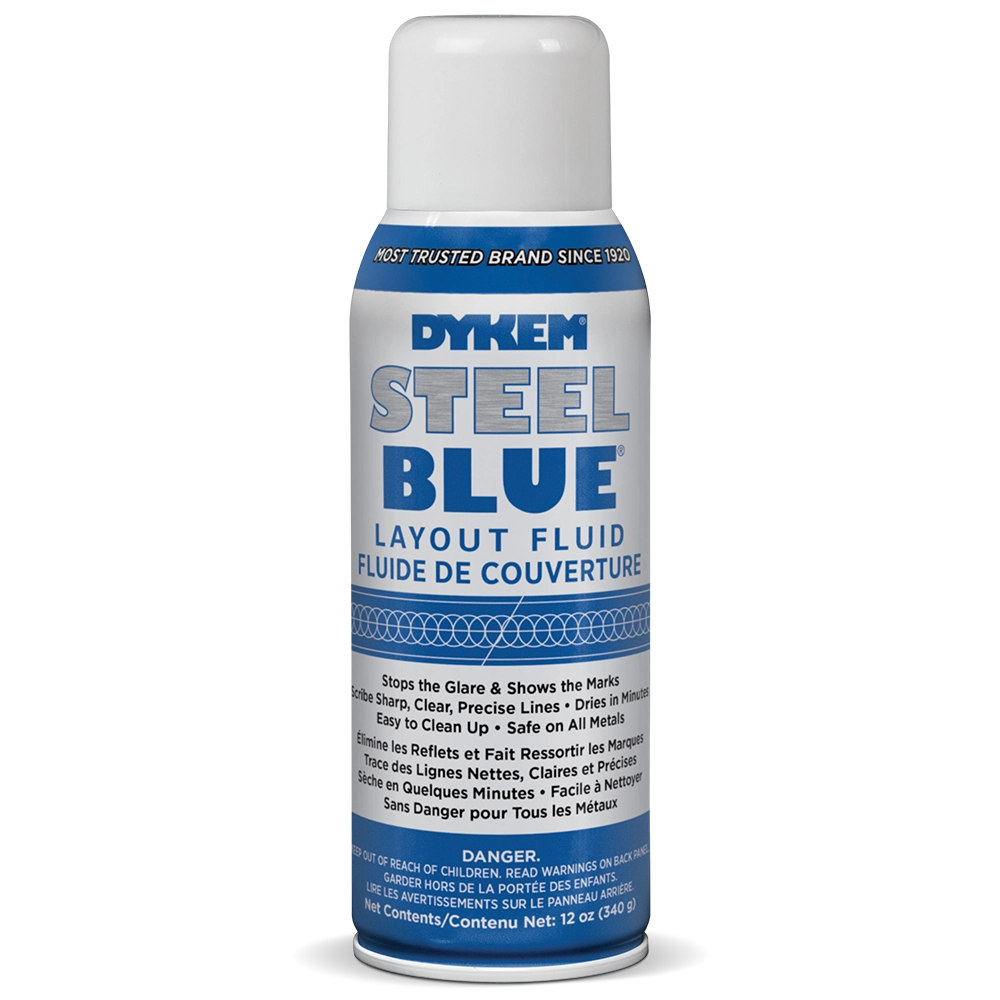

| 80000 | 12 oz / 340 g | aerosol | 12 | 13 lbs |

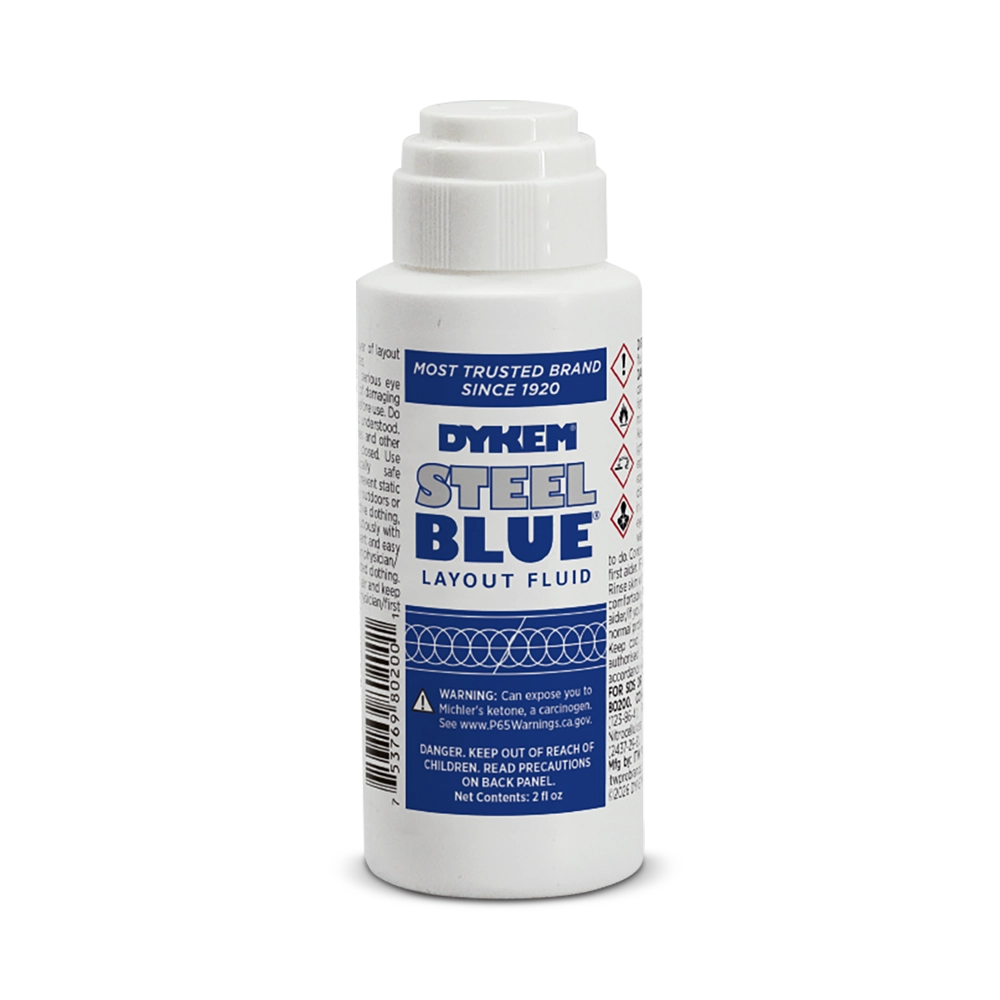

| 80200 | 2 oz | felt tip applicator | 12 | 3 lbs |

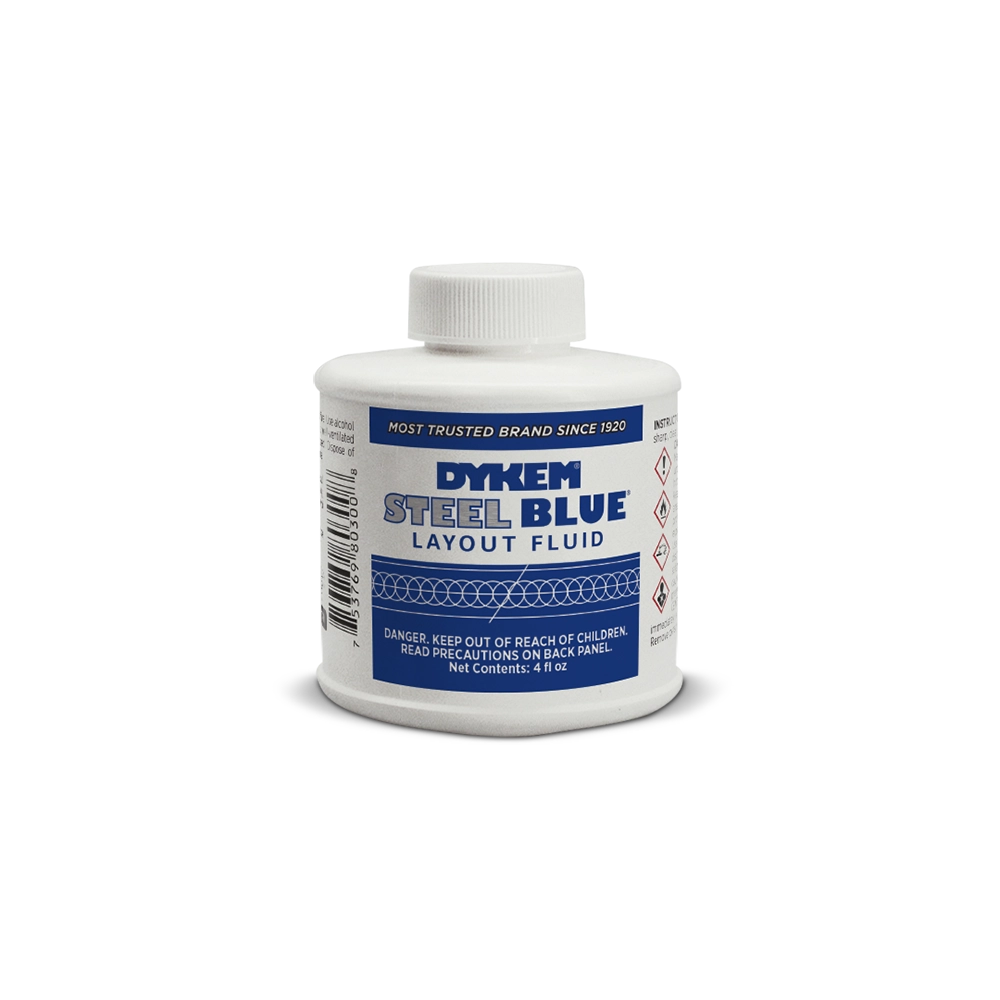

| 80300 | 4 oz | brush-in-cap | 12 | 4 lbs |

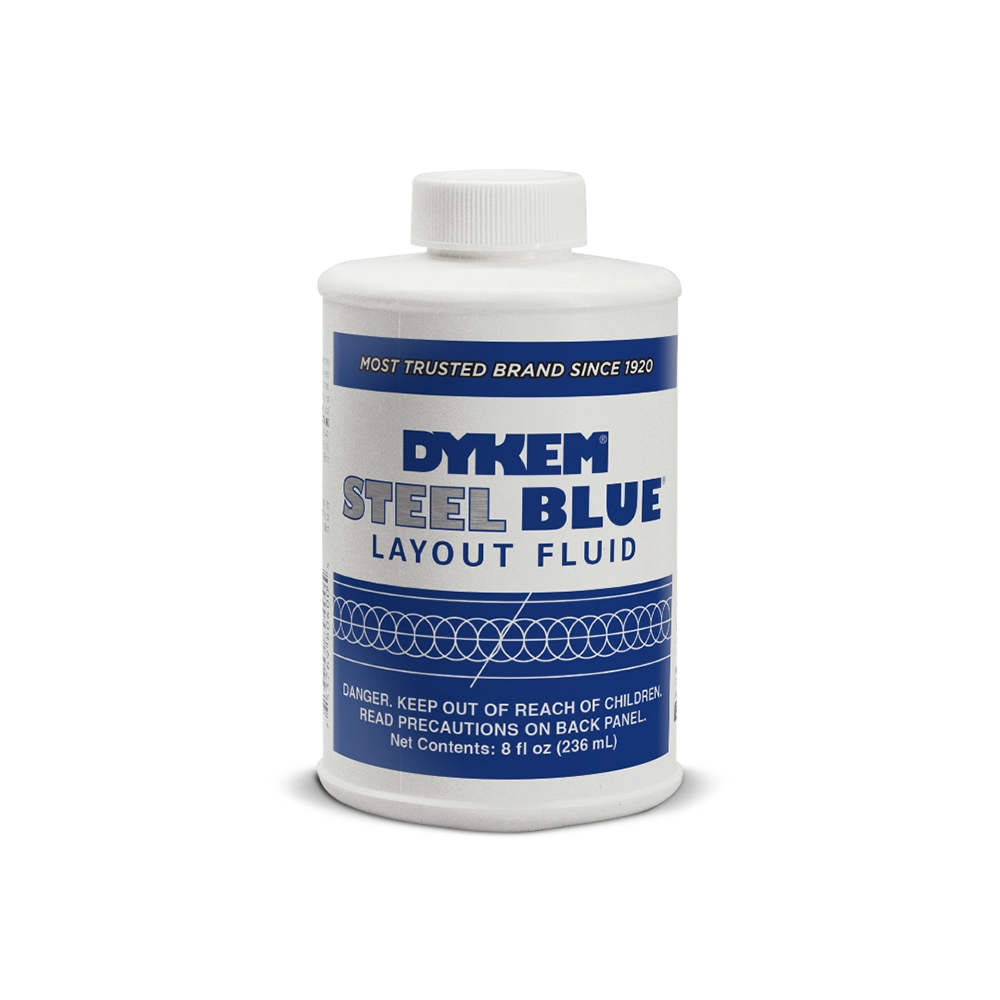

| 80400 | 8 oz | brush-in-cap | 12 | 6 lbs |
| 80600 | 930 mL | bottle | 12 | 25 lbs |
| 80700 | 1 gal | bottle | 4 | 32 lbs |
Properties
| Color | Blue |
| Odor | Solvent. |
| Flash Point | 50°F (9.7°C) |
| Boiling Point / Range | 148°F (64.7°C) |
| VOC Content | 94% – 96% by weight |
| Shelf Life | 3 years |
| Dry Time | < 2 minutes (may vary depending on film thickness) |
| Auto-Ignition Temperature | 716°F (380°C) |
| Density | Bulk = 7.05 lb/gal; Aerosol = not determined |
Buying notes for Singapore procurement
- Use the exact product name, colour and packaging size when requesting a quotation.
- For regulated or sensitive environments, request the latest SDS, TDS or certificate documents before confirmation.
- For equivalent replacements, share the current part number or application so Y K Toh can verify suitability.
FAQ
What is DYKEM STEEL BLUE Layout Fluid used for?
It is used for industrial marking, identification, inspection or maintenance applications depending on the product family and work surface.
Can Y K Toh quote this DYKEM product in Singapore?
Yes. Send the product name, required colour or variant, quantity and delivery location so the team can prepare a quotation.
Do I need to check SDS or technical documents before use?
Yes for controlled workplaces, aviation, food-related environments, marine, fabrication and production use. Always verify the latest safety and technical documents before application.
Source reference: ITW Pro Brands DYKEM product page. Product suitability should be verified against the latest manufacturer documents before use.
