DUKSHIN Level Pump DLP530
#D05-DLP530
Applications
Suction type : Manual up and down piston lever type
Applicable liquids : Kerosene, Diesel, Hydraulic oil (Ex. AW46), Lubricants

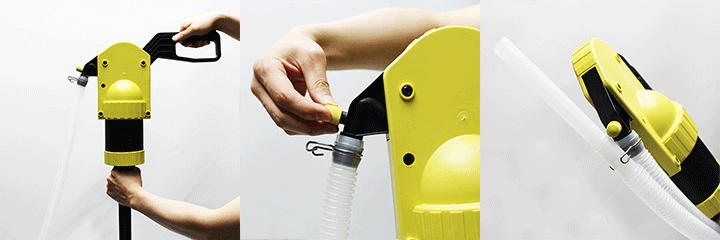

Note : A unique toggle mechanism is incorporated in the handle linkage to correct piston shaft geometry to create smooth operation and also prevent premature piston shaft seal failure.
2″ drum bung adaptor with lock Nut
DO NOT use this pump for transferring the following liquids : ACETON, BENZEN, CREOSOL, ETHYL, PHENOL, METHYL ETHYLE, Gasoline, Concentrated acids (Sulfuric acid, Nitric acid, Hydrochloric acid)

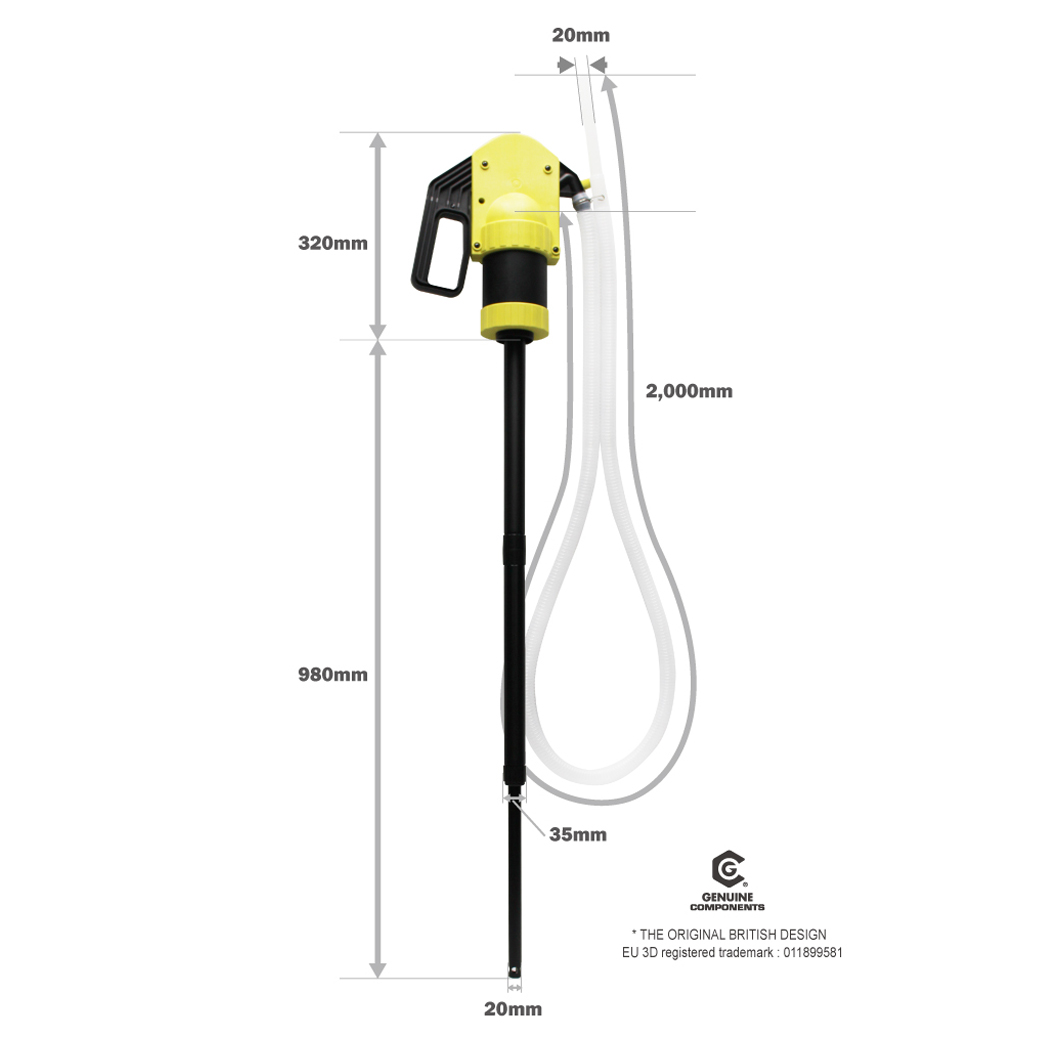

| Three-piece telescopic suction pipe | Adjustable from 350mm to 980mm to fit most containers |
| Suction end outer dia. | 20mm (0.79”) |
| Discharge Hose Length | About 2 M (6.6ft) |
| Discharge Hose Outer Dia. | 20 mm (0.79”) |
| Delivery Volume | About 530ml per stroke |
| Operating temperature | +5°C ~ 40°C (41°F ~ 104°F) |
| Main Material | Polypropylene, POM, NBR |
| Net Weight/pc | About 980g |
