DUKSHIN Drum Pump DP-25
#D05-DP25
Applications
Suction type: Manual up and down piston type / Heavy duty
Applicable liquids: Gasoline, Kerosene, Diesel, Non-potable water, Deodorants, Antifreeze, Windshield washer fluid, Thinner, Toluene, Chemical insecticides, Agricultural Chemicals, Motor oil (Ex. 5W30), Hydraulic oil (Ex. AW46), Lubricants.
Non corrosive, non toxic plastic material construction, light-weight.
Depth adjustable with 30mm (1.20”) long adaptor for standard 50.8mm (2”) drum bung adaptor.

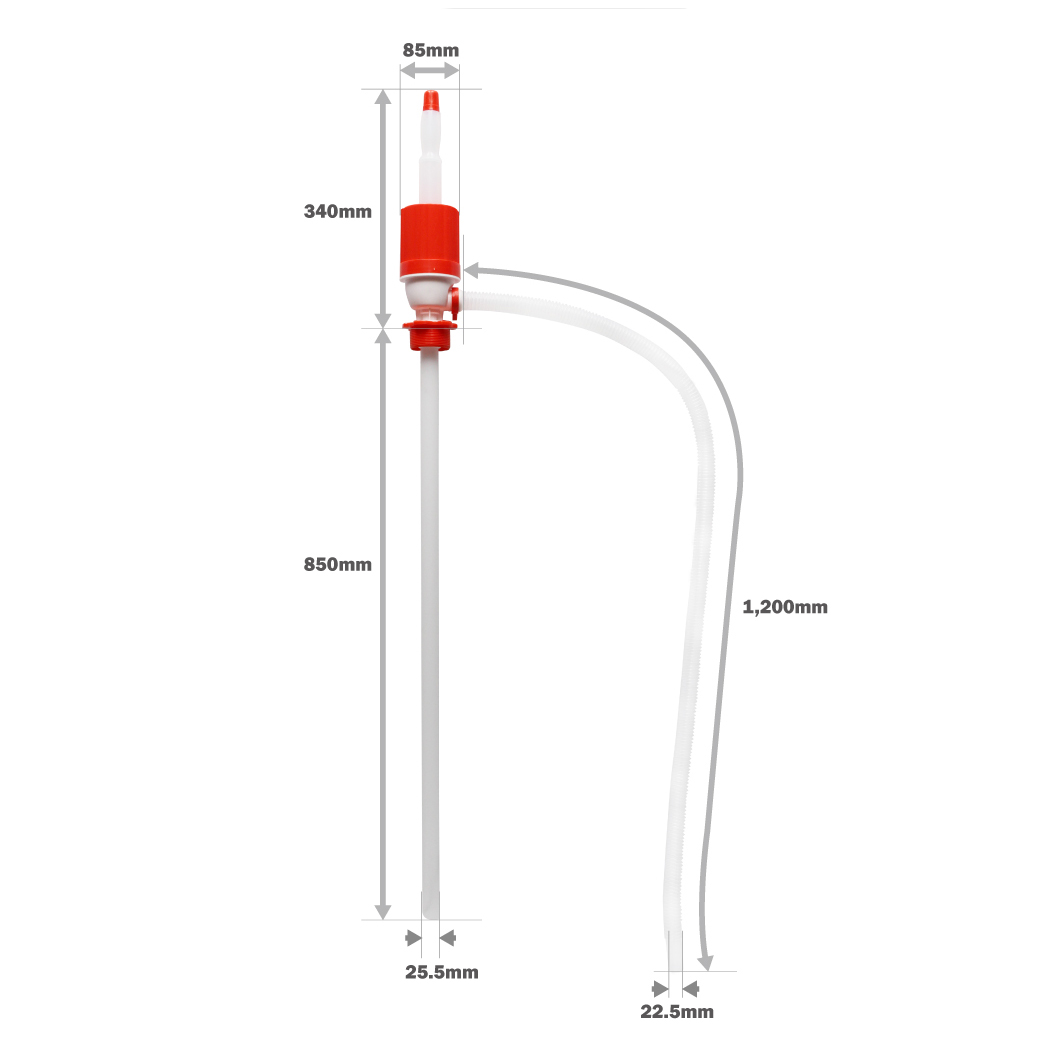

| Total length | 1,190 mm (46.9”) |
| Suction pipe length | 850 mm (33.5”) |
| Suction end outer dia. | 25.5 mm (1.0”) |
| Discharge hose length | About 1,200 mm (47.2”) |
| Discharge hose outer dia. | 22.5 mm (0.89”) |
| Head outer dia. | 85 mm (3.35”) |
| Delivery volume | About 18.5 LPM (4.9 GPM) |
| Operating temperature | +5°C ~ 40°C (41°F ~ 104°F) |
| Main material | P.E |
| Net Weight/pc | About 400g (14.1Oz) |
