DUKSHIN Chemical Pump TI-901S
#D05-TI-901S
Applications

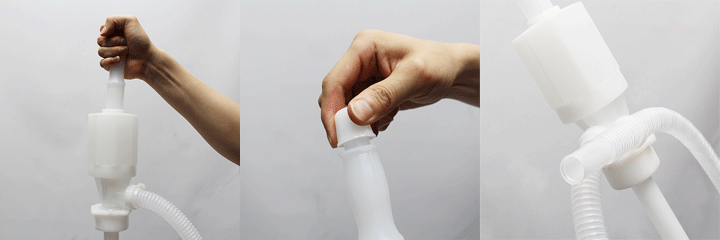

Suction type : Manual up and down piston type / Heavy duty
Applicable liquids : Gasoline, Kerosene, Diesel, Water, Windshield washer fluid, Brake cleaner, Thinner, Toluene, Chemical insecticides, Agricultural Chemicals, Nitric acid 35%, Hydrochloric acid 35%, Sulfuric acid 35%, Acetic acid 35%, Motor oil (Ex 5W31), Hydraulic oil (Ex AW46), Lubricants
Non corrosive, Non toxic plastic material construction, Light-weight
Depth adjustable with 30mm (1.20”) long adaptor for standard 50.8mm (2”) drum bung adaptor

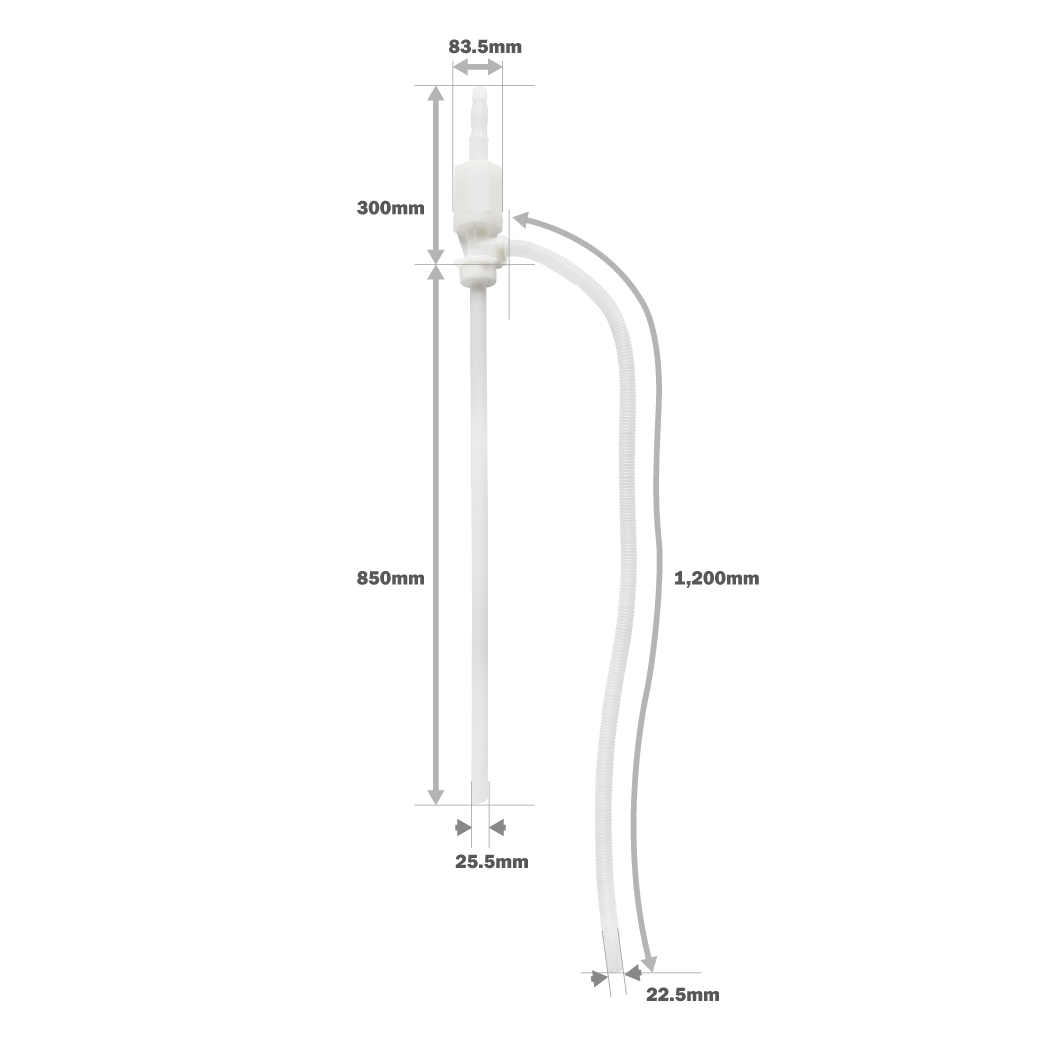

| Total length | 1,150 mm (45.3”) |
| Suction pipe length | 850 mm (33.5”) |
| Suction end outer dia. | 25.5 mm (1.0”) |
| Discharge hose length | About 1,200 mm (47.2”) |
| Discharge hose outer dia. | 22.5 mm (0.89”) |
| Head outer dia. | 83.5 mm (3.29”) |
| Delivery volume | About 21LPM (5.5GPM) |
| Operating temperature | +5°C ~ 40°C (41°F ~ 104°F) |
| Main material | P.E |
| Net Weight/pc | About 390g (13.8Oz) |
