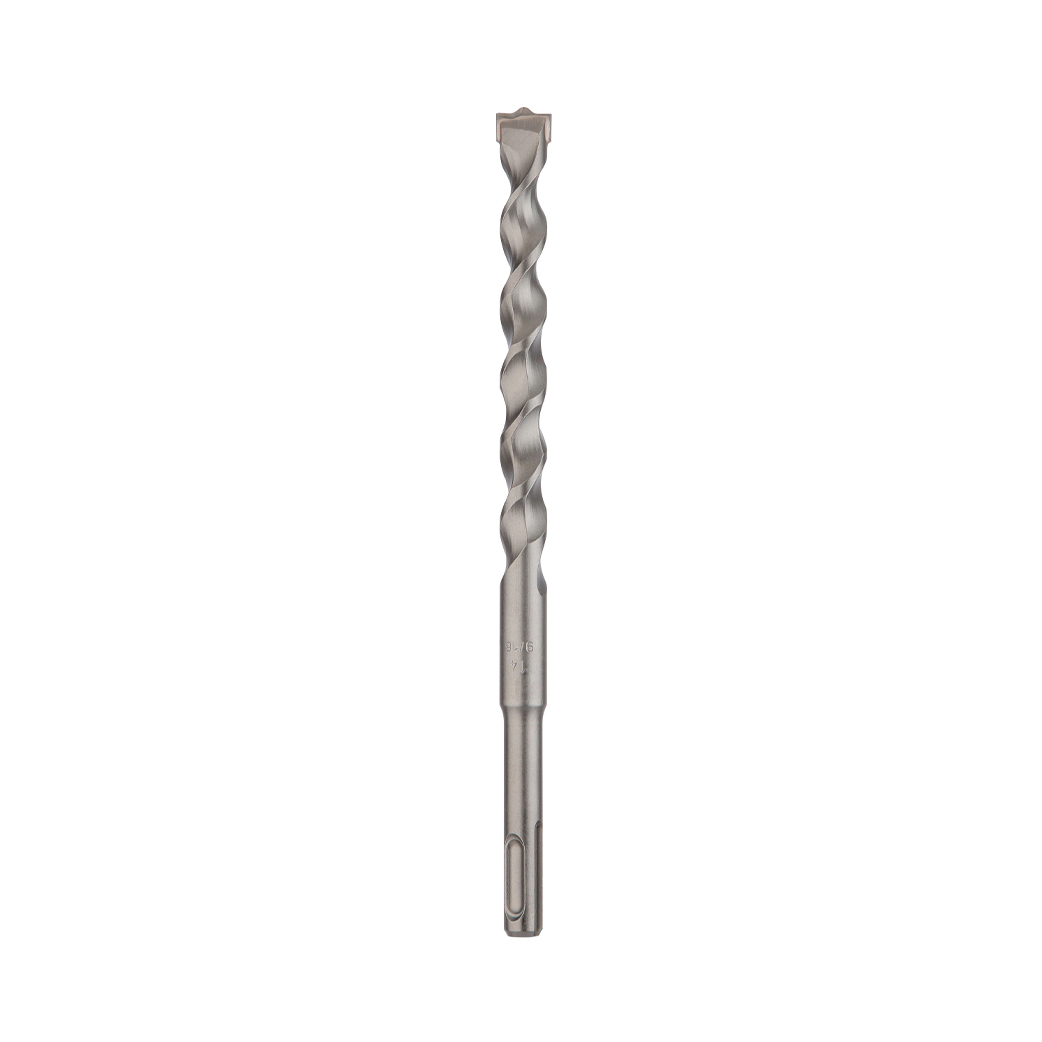

DIAGER Twister Plus 110 SDS Plus Hammer Drill Bit
Twister Plus, reference 110
Two-cutting-edge SDS Plus hammer drill bit for fast drilling in concrete, stone, brick and breeze block.
Choose by diameter, total length and required drilling depth. Y K TOH will confirm the current item code and availability for Singapore supply.
DIAGER Twister Plus 110 SDS Plus drill-bit family

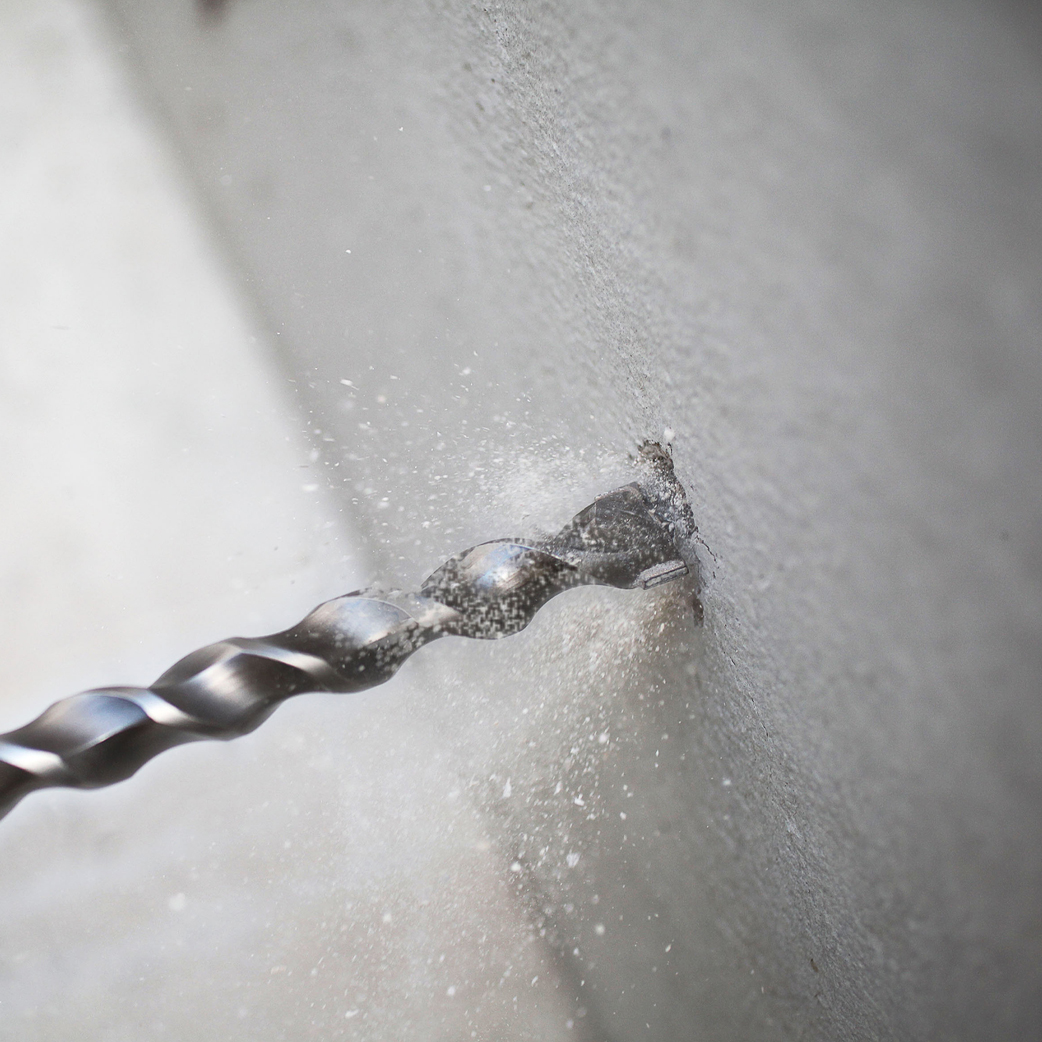

Twister Plus reference 110 is a two-cutting-edge SDS Plus hammer drill bit for fast drilling in concrete, stone, brick and breeze block. Diager combines a concrete-breaker carbide tip, a Z-line centring point and a variable three-zone helix to support a controlled start and efficient dust removal.
- Connection
- SDS Plus compatible rotary hammer
- Head geometry
- Two cutting edges with a concrete-breaker tip
- Guidance and clearing
- Z-line centring tip and TRI-ZONES variable helix
What the geometry is designed to do

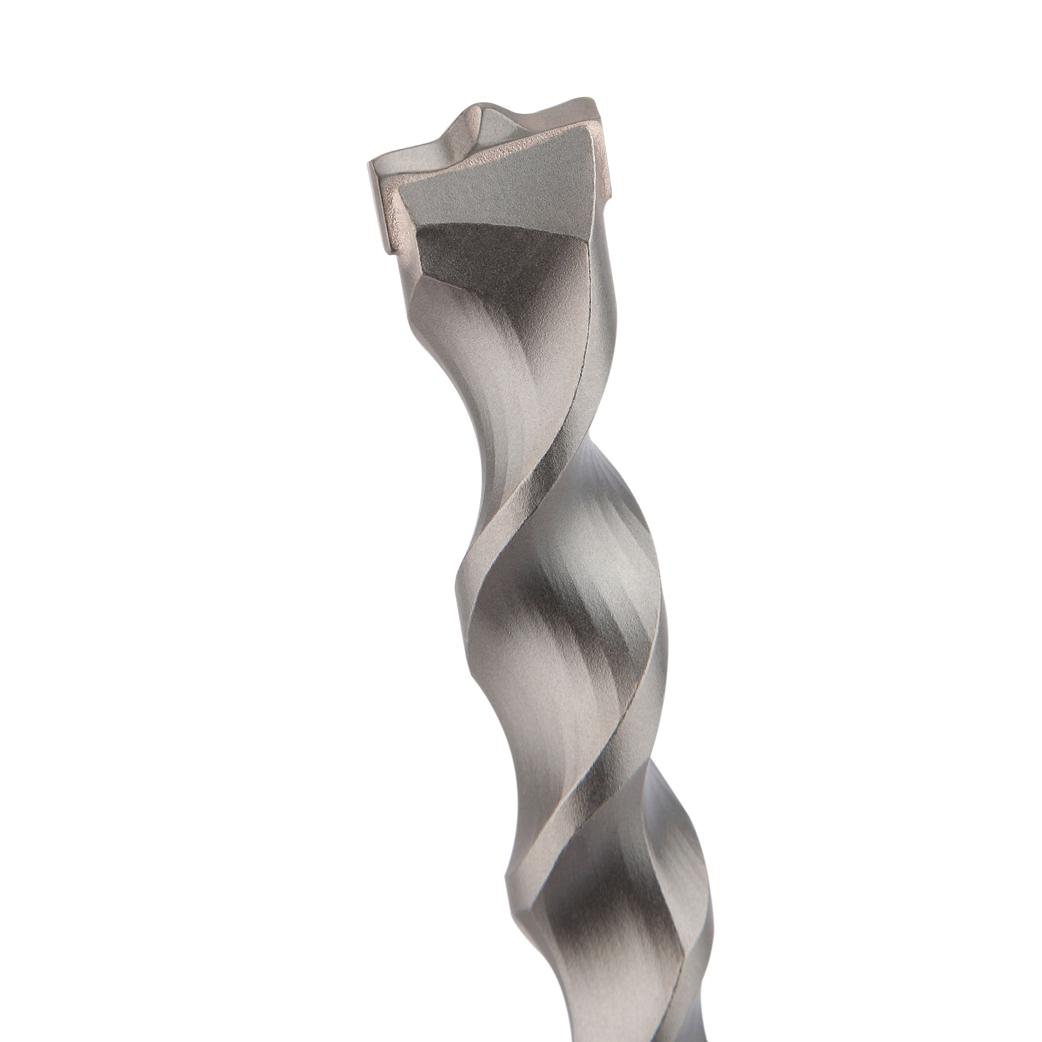

The Z-line centring point helps position the bit at the start of the hole.

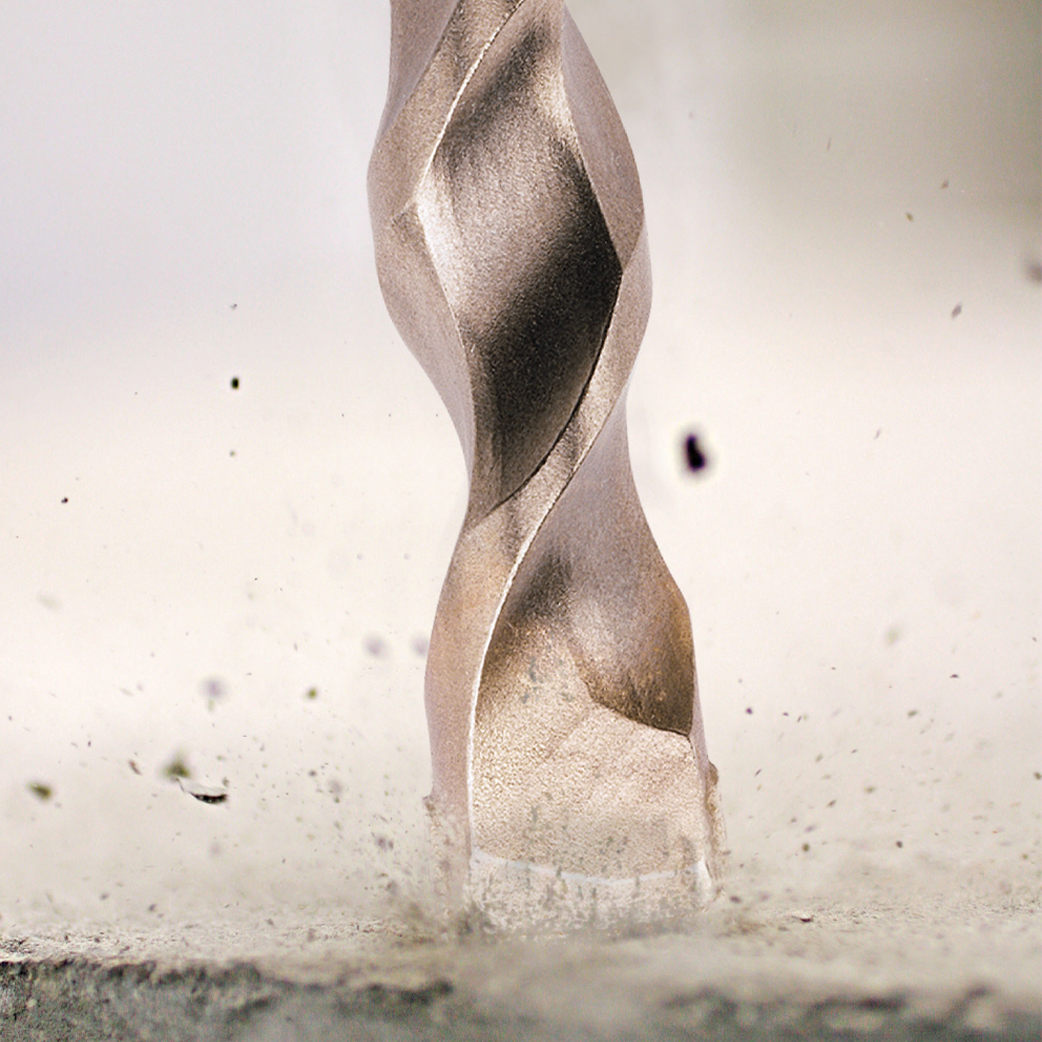

The concrete-breaker tip works with the three-zone helix to move drilling dust away from the cutting area.
Diager lists resistance, long life and round, calibrated holes among the Twister Plus benefits.
Official Diager videos
Diager’s official library does not currently label a video as a Twister Plus 110 product demonstration. These two videos provide manufacturer context without replacing the Twister Plus product data.
Watch video
A general view of Diager’s drilling-test process. It is not presented as a Twister Plus 110 performance test.
Watch video
Company and factory context from Diager in France.
Material and machine fit
- Documented materials: Concrete, stone, brick and breeze block
- Connection: SDS Plus compatible rotary hammer
- Product type: Hammer drill bit, not a powered hammer drill
- Reinforced concrete: Diager’s current Twister Plus page does not list reinforced concrete. If rebar contact is expected, ask Y K TOH to compare a Diager SDS Plus family documented for that application.
Choose the diameter and drilling depth
Diager’s current reference 110 web matrix covers diameters from 4 to 30 mm, total lengths from 110 to 1000 mm and usable lengths from 50 to 940 mm. Not every diameter is offered in every length.
View the configurations currently shown by Y K TOH
| Diameter × total length | Current Diager item code match | Usable length |
|---|---|---|
| 8 × 1000 mm | 110D08L1000 |
940 mm |
| 20 × 1000 mm | 110D20L1000 |
940 mm |
| 9 × 110 mm | Confirm before quotation | Confirm |
| 10 × 110 mm | 110D10L0110 |
50 mm |
| 5 × 160 mm | 110D05L0160 |
100 mm |
| 6 × 160 mm | 110D06L0160 |
100 mm |
| 10 × 160 mm | 110D10L0160 |
100 mm |
| 12 × 160 mm | 110D12L0160 |
100 mm |
| 14 × 160 mm | 110D14L0160 |
100 mm |
| 5.5 × 160 mm | 110D05.5L0160 |
100 mm |
| 24 × 210 mm | Confirm before quotation | Confirm |
| 14 × 310 mm | 110D14L0310 |
250 mm |
| 16 × 310 mm | 110D16L0310 |
250 mm |
The 9 × 110 mm and 24 × 210 mm entries shown by Y K TOH do not have an exact match in Diager’s current online reference matrix. Y K TOH will verify the current item code and availability before quotation.
What to send for an accurate quotation
- Required hole diameter
- Total bit length and required drilling depth
- Base material and whether reinforcement may be present
- Rotary-hammer make, model and SDS Plus confirmation
- Quantity and application photo where available
Frequently asked questions
Is this a hammer drill or a drill bit?
This page is for a DIAGER Twister Plus SDS Plus hammer drill bit. It is an accessory for a compatible rotary hammer, not a powered tool.
Which materials are listed for Twister Plus?
Diager lists concrete, stone, brick and breeze block for reference 110.
Does every diameter come in every length?
No. Select both diameter and total length, then confirm the corresponding usable length and Diager item code.
Can Y K TOH check a size before I order?
Yes. Send the required diameter, drilling depth, rotary-hammer model, material and quantity for a reference and availability check.
Product and manufacturer references
DIAGER Twister Plus 110 product page
DIAGER official video library
DIAGER drill bits in Singapore
Confirm the correct Twister Plus size
Send the diameter, drilling depth, base material, rotary-hammer details and quantity. Y K TOH will check the item code, current availability and quotation.
- Concrete-breaker carbide tip
- Z-line centring tip for an accurate start
- Variable three-zone helix for dust evacuation
- Two-cutting-edge SDS Plus geometry
- Designed for resistance and long service life
Suitable materials listed by Diager
- Concrete
- Stone
- Brick
- Breeze block
- Manufacturer: DIAGER
- Product family: Twister Plus
- Manufacturer reference: 110
- Shank: SDS Plus
- Cutting edges: 2
- Current official diameter range: 4 to 30 mm
- Current official total-length range: 110 to 1000 mm
- Current official usable-length range: 50 to 940 mm
Configurations currently shown by Y K TOH
- 8 × 1000 mm
- 20 × 1000 mm
- 9 × 110 mm
- 10 × 110 mm
- 5 × 160 mm
- 6 × 160 mm
- 10 × 160 mm
- 12 × 160 mm
- 14 × 160 mm
- 5.5 × 160 mm
- 24 × 210 mm
- 14 × 310 mm
- 16 × 310 mm
Not every diameter is available in every length. Exact item code and current availability must be confirmed before supply.
