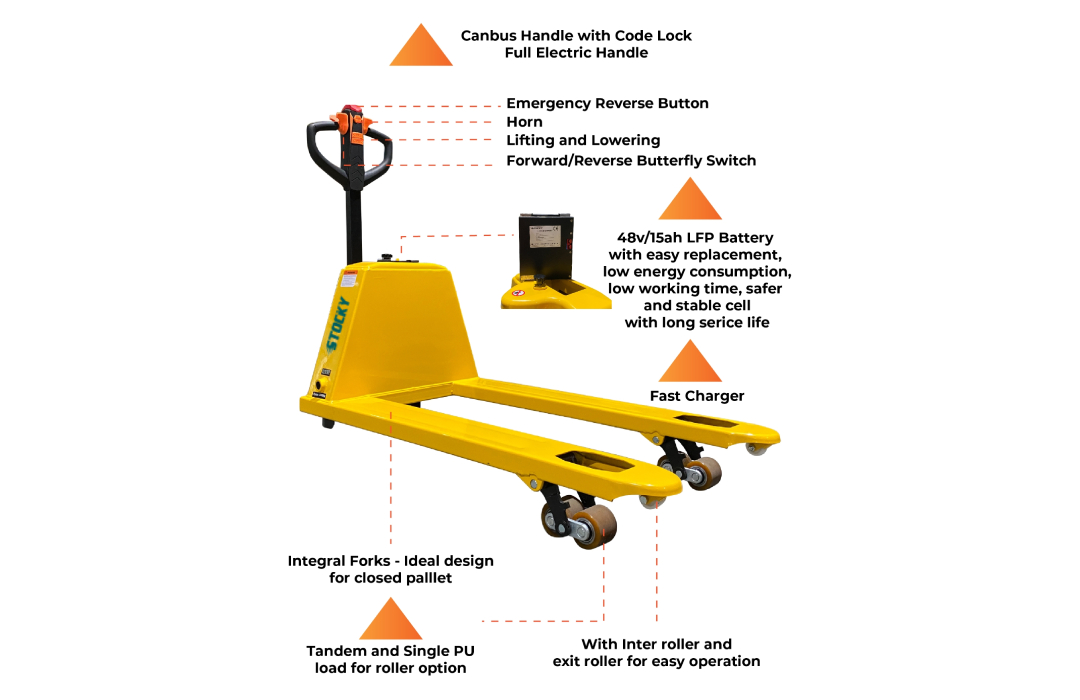

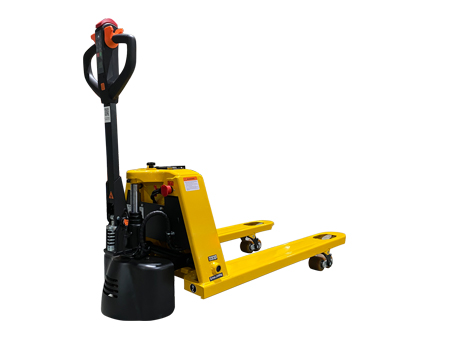

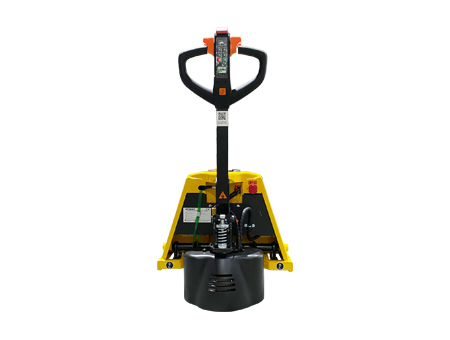

The STOCKY FEP20 Full Electric Pallet Truck, boasting a sturdy build and a 2000 kg capacity, stands as a top-tier solution for seamless daily pallet management. Its user-friendly operation, low-maintenance construction, and exceptional durability make it a standout choice for consistent and demanding daily tasks.
Status: Available
Free delivery: 3-5 working days
Slider Banner Example
Specifications
Capacity
2000kg
Operation
Pedestrian
Height of Fork (Lower / Raised)
80 ~ 200mm
Fork Dim (NR) [W x L]
560 x 1150mm
Fork Dim (SE) [W x L]
680 x 1220mm

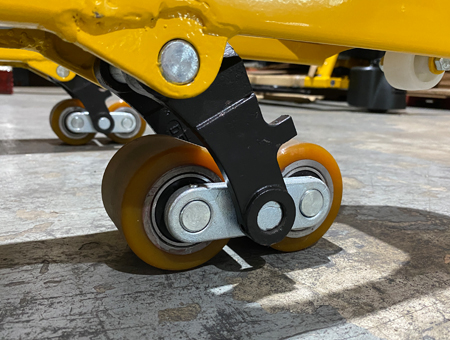

Load wheel Dim (Tandem)
4 no. Ø 80 x 70mm
Steer wheel Dim
1 no. Ø 190 x 70mm
Wheel Material
PU Steel Core
Self-Weight (NR / SE)
135kg / 140kg
Total Length (NR / SE)
1540mm / 1610mm
Ground Clearance
30mm
Turning Radius
1350mm
Driving Speed (with / without load)
4.5km/h
Lifting Speed (with | without load)
17mm/s | 22mm/s
Lowering Speed (with | without load)
30mm/s | 26mm/s
Gradeability (with | without load)
6% | 10%
Brake System
Electromagnectic
Power of Drive Motor
850w
Power of Lifting Motor
600w
Battery Capacity
48V / 15AH
Battery Weight
4.5kg
Charging Time
2.5H
Operation Time
> 2H
Key Features

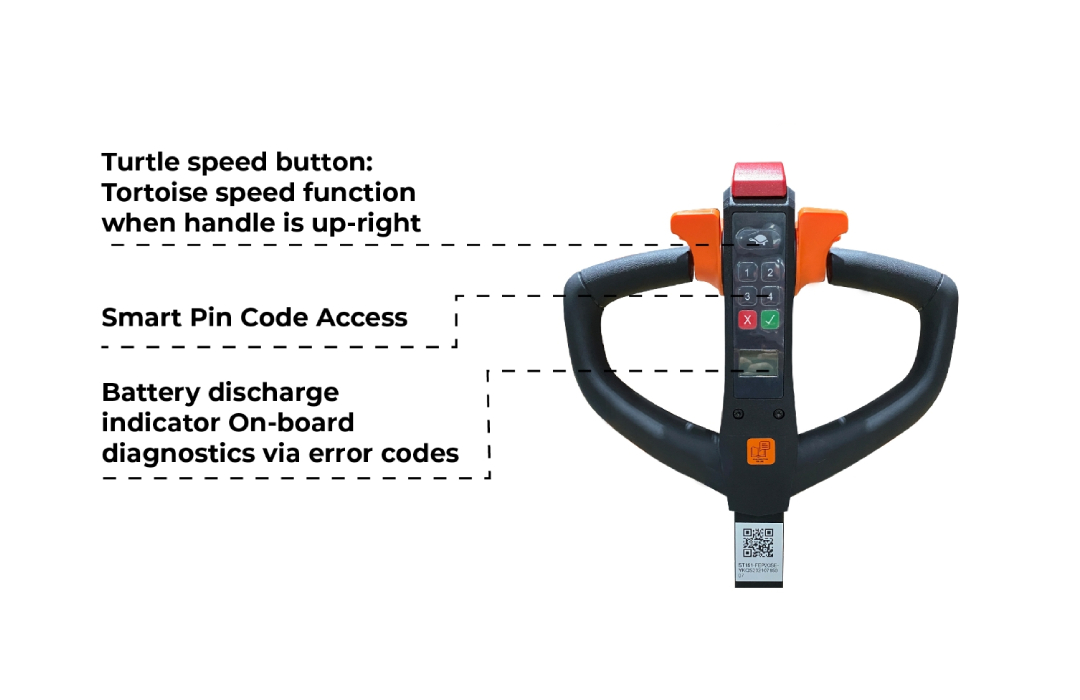

Operator system: Easy access control from tiler handle, slow speed button, smart Pin code access, battery discharge indicator, on-board diagnostics

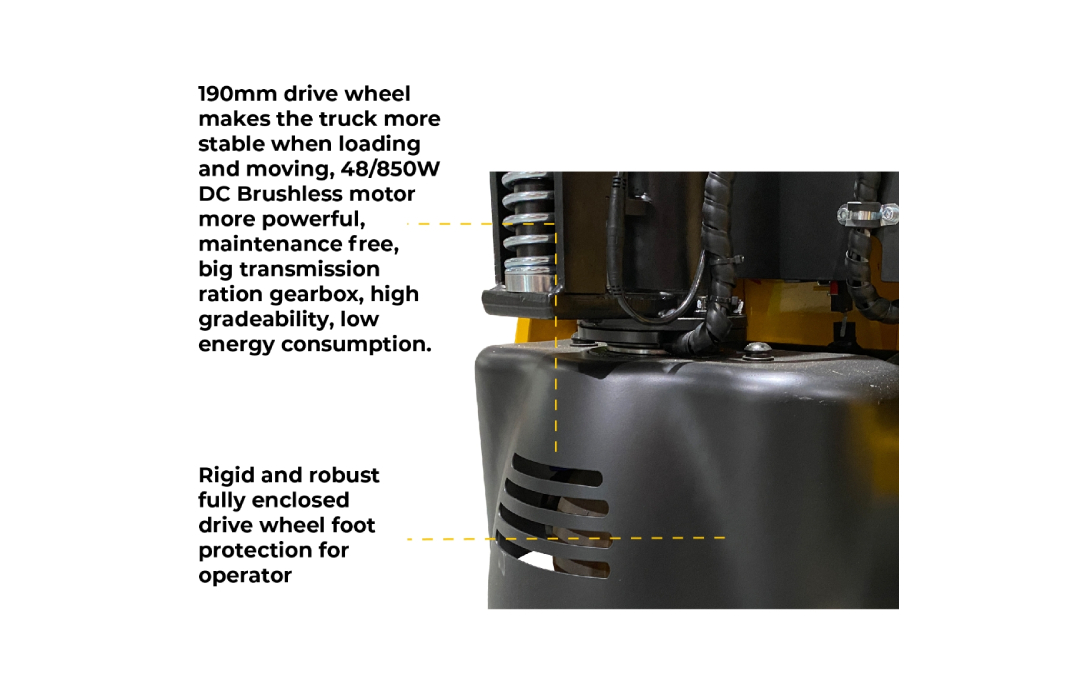

Drive system: 190mm drive wheel make the truck more stable when moving, 48V DC Brushless motor maintenance free, big transmission ratio gearbox
Intelligent charger: Automatic output current stabilizing charging, auto cut-off to prevent overcharging, offboard charging available.
Lithium iron phosphate battery: 48V LFP battery with safe and stable cell provide long service life, easy installation, maintenance and replacement.

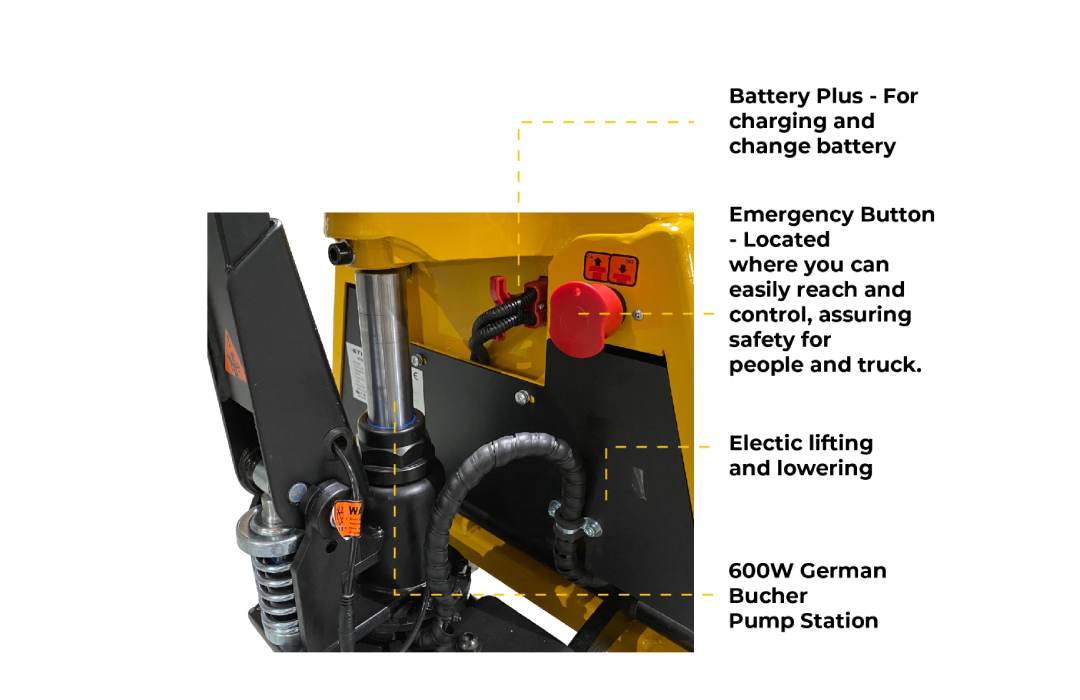

Emergency switch: Emergency switch located where the operator can easily reach providing assuring safety for human and truck
